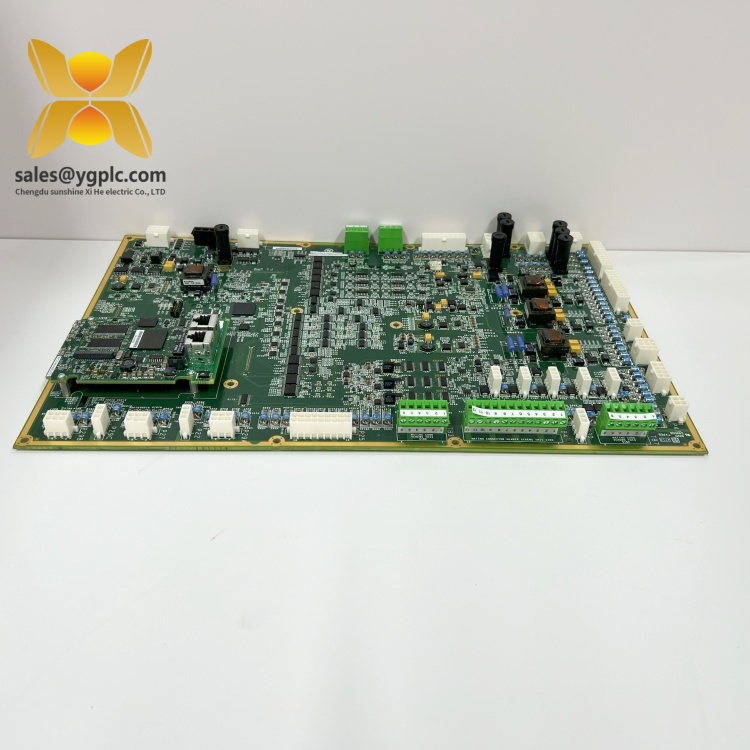

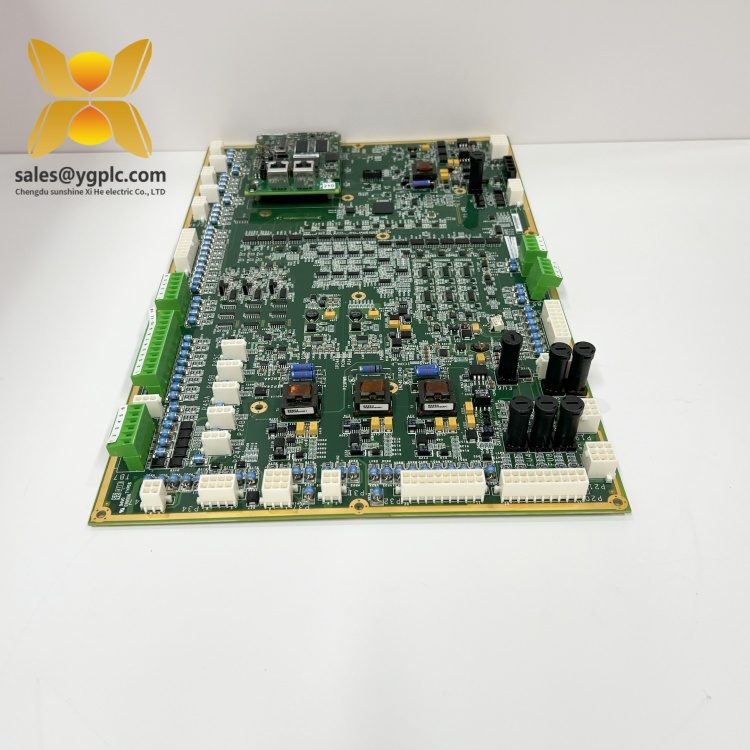

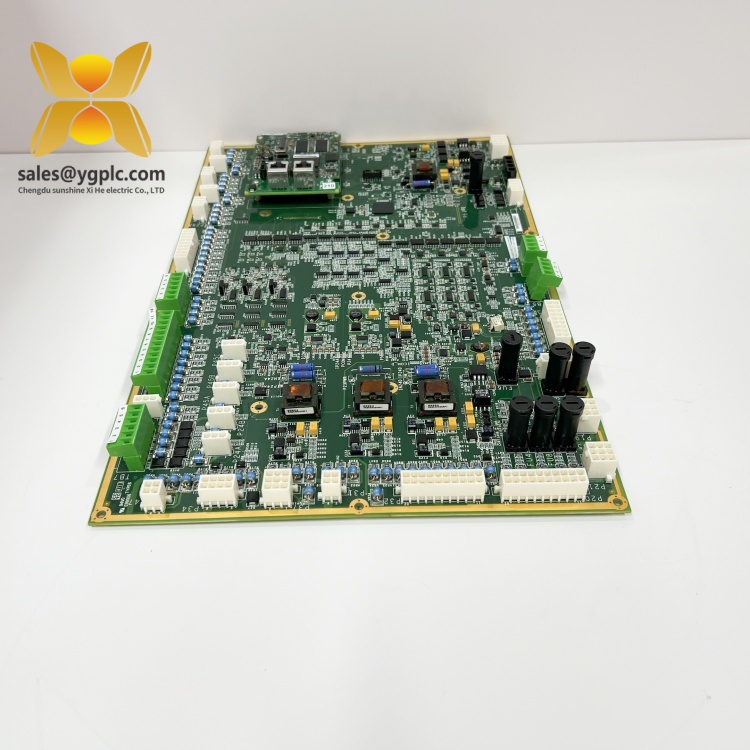

GE IS215WETAH1BB Mark VIe Ethernet Interface Module
Product Overview
The GE IS215WETAH1BB is a high-performance Ethernet Interface Module designed for GE’s Mark VIe control system, engineered to provide seamless communication between industrial automation networks and legacy systems. As part of the IS215 Series, this module serves as a critical link for data exchange between the Mark VIe controller and external devices, supporting protocols such as Modbus TCP, Ethernet/IP, and IONET. The IS215WETAH1BB is optimized for harsh industrial environments, featuring rugged construction, extended temperature tolerance, and redundant communication capabilities to ensure uninterrupted operation in mission-critical applications.
Featuring dual 10/100/1000 Mbps Ethernet ports with IEEE 1588 Precision Time Protocol (PTP) support, the GE IS215WETAH1BB enables high-speed, synchronized data transfer across distributed control systems. Its PowerPC 750CL processor and 128 MB DDR2 RAM deliver robust computing power for protocol conversion and data processing, while 4 MB flash memory stores configuration files and firmware. The module’s hot-swappable design allows for maintenance without system shutdown, minimizing downtime in continuous-operation environments. With support for VxWorks real-time operating system and GE’s Proficy HMI/SCADA software, the IS215WETAH1BB integrates seamlessly into existing automation ecosystems, providing a bridge between legacy I/O modules and modern Ethernet-based networks.
In industrial settings, the IS215WETAH1BB facilitates communication between gas turbines, generators, and control centers, enabling real-time monitoring and adjustment of critical parameters. Its dual redundant Ethernet ports support ring topology configurations, ensuring network resilience in the event of cable breaks or device failures. The module’s conformal coating and compliance with MIL-STD-810G for vibration, shock, and temperature extremes (-40°C to +70°C) make it suitable for deployment in harsh environments such as offshore platforms, mining operations, and power plants.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS215WETAH1BB |
| Manufacturer | GE |
| Product Type | Ethernet Interface Module |
| Series | Mark VIe |
| Processor | PowerPC 750CL, 400 MHz |
| Memory | 128 MB DDR2 RAM, 4 MB flash |
| Communication Interfaces | 2 × 10/100/1000 Mbps Ethernet ports (RJ45), IEEE 1588 PTP support |
| Supported Protocols | Modbus TCP, Ethernet/IP, IONET, IEEE 1588 PTP |
| Operating System | VxWorks RTOS |
| Input Voltage | 24 V DC ±10% |
| Physical Dimensions | 167.6 mm (H) × 233.4 mm (W) × 44.5 mm (D) |
| Weight | 0.9 kg |
| Operating Temperature | -40°C to +70°C |
| Certifications | MIL-STD-810G, CE, UL |
| Redundancy | Dual Ethernet ports with ring topology support |
Key Features and Advantages
High-Speed Ethernet Connectivity:
Dual Gigabit Ethernet ports with IEEE 1588 PTP support enable precise time synchronization and high-bandwidth data transfer, critical for applications requiring real-time control and monitoring.
Dual Gigabit Ethernet ports with IEEE 1588 PTP support enable precise time synchronization and high-bandwidth data transfer, critical for applications requiring real-time control and monitoring.
Protocol Versatility:
Supports multiple industrial protocols (Modbus TCP, Ethernet/IP, IONET), allowing seamless integration with diverse automation devices and systems, including legacy equipment.
Supports multiple industrial protocols (Modbus TCP, Ethernet/IP, IONET), allowing seamless integration with diverse automation devices and systems, including legacy equipment.
Rugged Industrial Design:
Conformal coating and compliance with MIL-STD-810G ensure reliable operation in harsh environments, reducing maintenance costs and downtime in industrial settings prone to vibration, shock, and temperature extremes.
Conformal coating and compliance with MIL-STD-810G ensure reliable operation in harsh environments, reducing maintenance costs and downtime in industrial settings prone to vibration, shock, and temperature extremes.
Redundant Network Configuration:
Dual Ethernet ports support redundant ring topology, providing network resilience and ensuring continuous communication even in the event of a single port or cable failure.
Dual Ethernet ports support redundant ring topology, providing network resilience and ensuring continuous communication even in the event of a single port or cable failure.
Hot-Swappable Architecture:
Allows for module replacement without system shutdown, minimizing disruptions in continuous-operation environments such as power plants and refineries.
Allows for module replacement without system shutdown, minimizing disruptions in continuous-operation environments such as power plants and refineries.
Advanced Diagnostics:
Built-in self-diagnostics and status LEDs simplify troubleshooting and monitoring, ensuring proactive maintenance and reducing mean time to repair (MTTR).
Built-in self-diagnostics and status LEDs simplify troubleshooting and monitoring, ensuring proactive maintenance and reducing mean time to repair (MTTR).
Application Areas
The GE IS215WETAH1BB is ideal for applications requiring reliable Ethernet communication in industrial control systems:
- Power Generation:
Enables communication between gas turbines, steam turbines, and control centers in thermal, hydro, and combined cycle power plants, supporting real-time monitoring and adjustment of critical parameters. - Oil & Gas:
Facilitates data exchange between offshore platforms, pipelines, and onshore control rooms, ensuring seamless operation of pumps, valves, and safety systems. - Industrial Automation:
Integrates with PLCs, SCADA systems, and robotic equipment in manufacturing plants, enabling real-time control and monitoring of production lines. - Aerospace & Defense:
Provides communication capabilities in military vehicles, aircraft, and missile systems, ensuring reliable operation in extreme conditions.
Related Products
- GE IS215UCVEH2AE (VMEbus Processor Module):
Works in tandem with the IS215WETAH1BB to provide computational power for control algorithms and data processing. - GE VMIVME-7666-111000 (VMEbus Serial Communication Module):
Extends communication capabilities by supporting serial protocols (RS-232/422/485) for legacy devices. - GE IS215UCVGM06A (VMEbus Graphics Controller):
Provides graphical interface capabilities for HMIs and visualization systems in control rooms. - GE IS215VCMIH2CA (VMEbus Communication Interface Card):
Offers redundant communication paths for critical systems, complementing the Ethernet connectivity of the IS215WETAH1BB. - GE IS215WETAH1BC (Ethernet Interface Module):
An upgraded variant with enhanced processing power and additional features, suitable for more demanding applications.
Installation and Maintenance
Pre-installation Preparations:
Ensure the VMEbus rack is properly grounded and ventilated, with compatible power supplies (24 V DC). Verify that the rack supports 6U VME64x modules and that existing system firmware is compatible. Use GE’s configuration tools to set IP addresses, subnet masks, and communication parameters before installation.
Ensure the VMEbus rack is properly grounded and ventilated, with compatible power supplies (24 V DC). Verify that the rack supports 6U VME64x modules and that existing system firmware is compatible. Use GE’s configuration tools to set IP addresses, subnet masks, and communication parameters before installation.
Maintenance Suggestions:
- Routine Inspections:
Monthly checks of front-panel LEDs and diagnostic software to monitor module status, network activity, and fault conditions. - Environmental Management:
Quarterly cleaning of vents and filters to prevent dust accumulation, ensuring proper airflow and temperature regulation. - Firmware Updates:
Periodically update module firmware to the latest version to enhance performance, add new features, and address security vulnerabilities. - Spare Parts Handling:
Store spare modules in static-free packaging at 10–30°C with <50% humidity. Test spares annually to ensure functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the GE IS215WETAH1BB, covering hardware defects under normal use. For discontinued models, our global supply chain ensures rapid sourcing of replacement parts. In the event of performance issues, our technical support team offers 24/7 assistance, including remote diagnostics and on-site troubleshooting.
