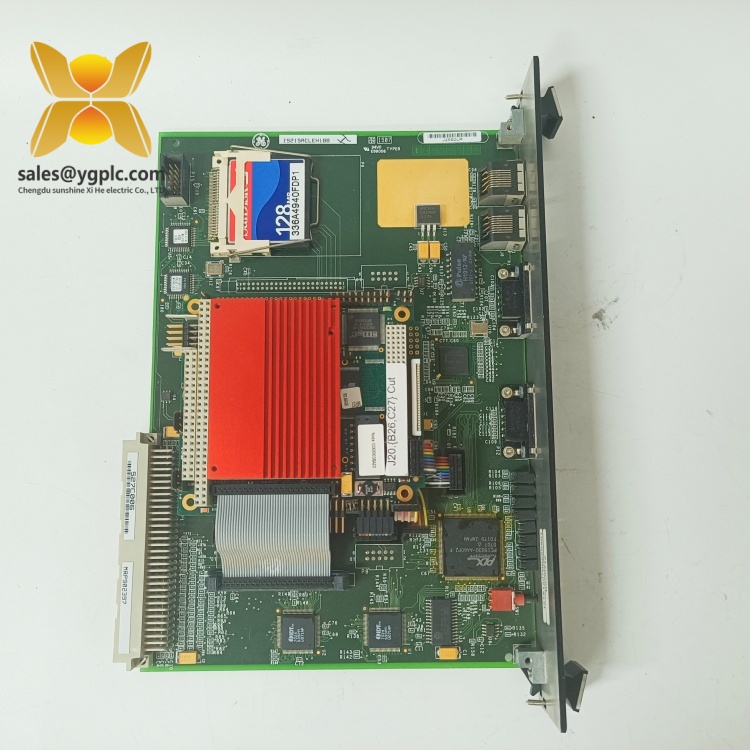

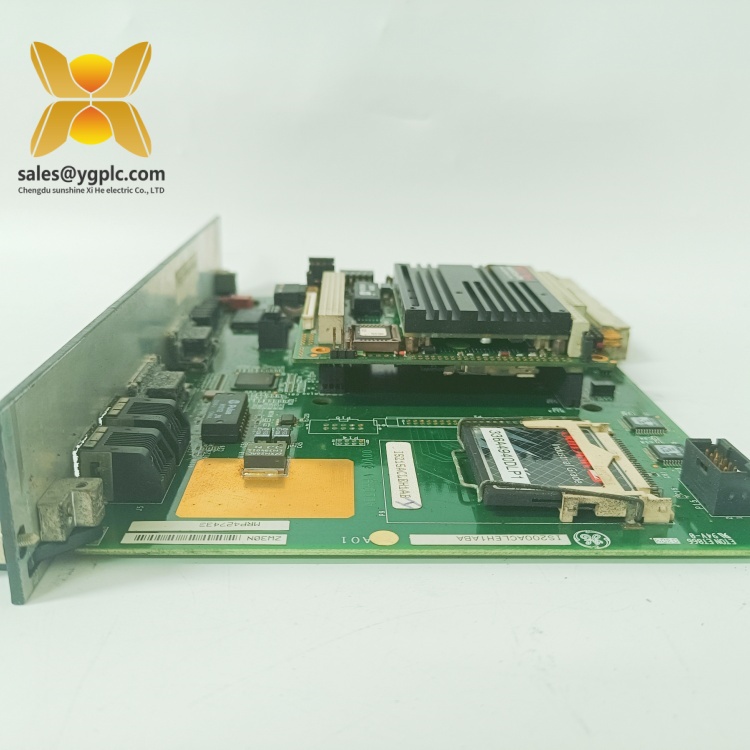

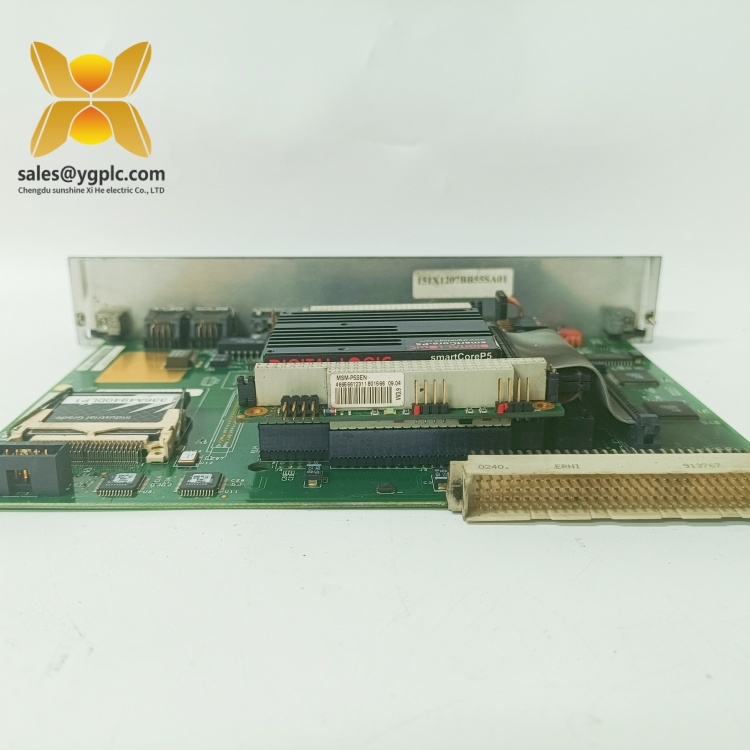

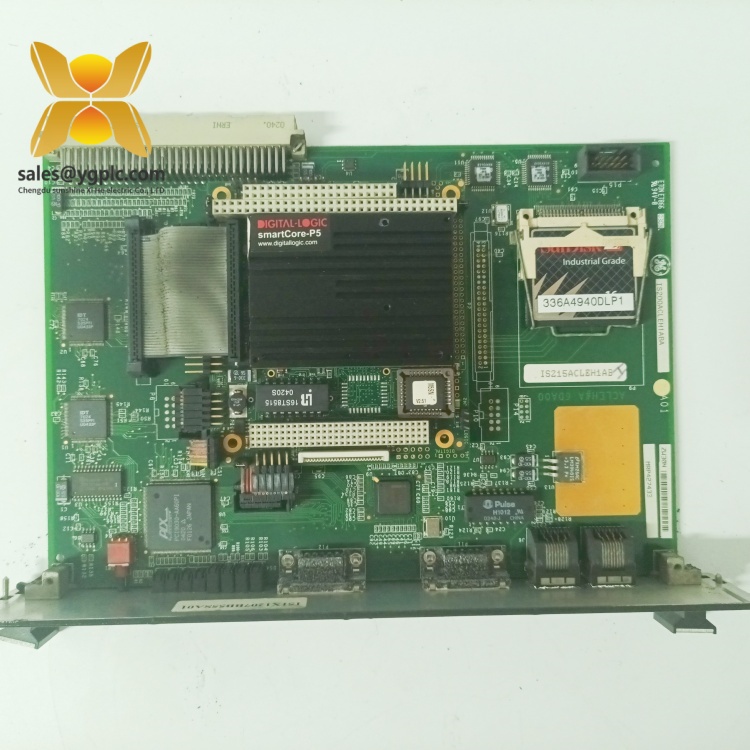

GE IS215ACLEH1AB Application Control Layer Module
Product Overview: GE IS215ACLEH1AB
The GE IS215ACLEH1AB application control layer module is a high-performance industrial automation component designed for GE’s Mark VI Speedtronic™ turbine control systems, a flagship platform for managing steam and gas turbines in critical power generation and industrial processes. As a core element of the EX2100 excitation control series, this module acts as a microprocessor-based master controller, enabling real-time coordination of turbine operations, communication protocols, and safety interlocks. Engineered for mission-critical environments, the IS215ACLEH1AB integrates advanced hardware and software features to ensure seamless data exchange, process optimization, and system reliability.
Featuring dual Ethernet ports (10/100 Mbps) and support for protocols like Modbus TCP/IP and Ethernet Global Data, the IS215ACLEH1AB serves as a communication hub between the turbine control processor, I/O modules, and supervisory networks. Its hot-swappable design allows maintenance without system shutdown, while the -40°C to +70°C operating range and rugged metal enclosure ensure durability in harsh industrial settings, from offshore oil platforms to high-temperature power plant control rooms. The module’s 266 MHz CPU, 8 MB DRAM, and 4 MB flash memory enable rapid execution of control algorithms and real-time diagnostics, making it indispensable for managing complex turbine excitation and load-balancing processes.
Within automation architectures, the IS215ACLEH1AB acts as a central coordinator, translating sensor inputs into actionable control signals and enforcing safety protocols to prevent overloads or system failures. Its compatibility with GE’s Mark VI I/O racks and compliance with IEEE 1131-2 and IEC 61131-3 standards solidify its role in ensuring uninterrupted operation of large-scale turbine systems.
Technical Specifications: GE IS215ACLEH1AB
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS215ACLEH1AB |
| Manufacturer | GE |
| Product Type | Application Control Layer Module |
| Series | Mark VI Speedtronic™, EX2100 Excitation Control |
| Communication Interfaces | 2 x Ethernet (10/100 Mbps), 2 x Serial (COM1/COM2) |
| Supported Protocols | Modbus TCP/IP, Ethernet Global Data, IEEE 1588 |
| Power Supply | 125V DC (±10%) |
| Physical Dimensions | 18.0 in (H) × 12.0 in (W) × 12.0 in (D) |
| Weight | 4.5 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (Mark VI VME-compatible) |
| Compliance | IEEE 1131-2, IEC 61131-3, CE, UL |
| Country of Origin | United States |
Main Features and Advantages: GE IS215ACLEH1AB
Real-Time Control and Communication: The IS215ACLEH1AB leverages its 266 MHz CPU and dual Ethernet ports to manage real-time data exchange between the turbine control system and external devices, ensuring precise synchronization of excitation currents, speed regulation, and load distribution. Its support for industrial protocols minimizes latency and enhances interoperability with SCADA systems and remote monitoring platforms.
Redundant and Rugged Design: With dual redundant power inputs and a robust metal enclosure, the module withstands voltage fluctuations, vibration, and extreme temperatures. The hot-swappable capability allows technicians to replace or upgrade components without disrupting operations—a critical feature for 24/7 power generation facilities.
Advanced Diagnostics and Safety: Built-in LED indicators (Active, OK, Enet, Flash) provide instant visual feedback on system health, while self-diagnostic routines continuously monitor hardware integrity, communication errors, and firmware status. The module enforces safety protocols such as emergency shutdowns and fault isolation, reducing the risk of unplanned downtime and equipment damage.
Scalability and Flexibility: Designed for GE’s modular Mark VI architecture, the IS215ACLEH1AB integrates seamlessly with other EX2100 series modules (e.g., DSPX excitation controllers and I/O packs), enabling scalable configurations for single or multi-turbine installations. Its firmware supports online application loading and parameter adjustments, allowing rapid adaptation to changing operational requirements.
Application Areas: GE IS215ACLEH1AB
The GE IS215ACLEH1AB application control layer module is pivotal in industries requiring precise turbine management and automation:
- Power Generation: Deployed in thermal, combined-cycle, and renewable energy plants to control steam and gas turbines, ensuring optimal power output, grid stability, and compliance with environmental regulations. The module’s real-time load balancing and excitation control optimize fuel efficiency and reduce emissions.
- Oil and Gas: Used in offshore platforms and refineries to manage turbine-driven compressors, pumps, and generators, enabling remote monitoring and control of critical processes in harsh, corrosive environments. Its rugged design and wide temperature range make it ideal for offshore and subsea applications.
- Industrial Manufacturing: Integrates with turbine systems in chemical plants, paper mills, and cement facilities to manage energy-intensive processes, such as steam generation and mechanical drives. The module’s diagnostic capabilities support predictive maintenance and reduce operational costs.
- District Energy: Controls steam turbines in district heating and cooling networks, ensuring reliable energy distribution for commercial and residential complexes. Its precise regulation of turbine speed and output enhances system efficiency and responsiveness.
Related Products: GE IS215ACLEH1AB
- GE IS215ACLAH1A Excitation Control Module: A predecessor model with a 266 MHz CPU, designed for basic excitation control in simpler turbine setups.
- GE IS215ACLEH1B Application Control Layer Module: An upgraded variant with enhanced memory and firmware features, suitable for complex multi-turbine systems.
- GE IS215DSPXH1A DSPX Excitation Controller: Works alongside the IS215ACLEH1AB to manage turbine excitation current and voltage regulation.
- GE IS215ALGCH1A Analog Input Module: Provides high-precision analog signal conversion for temperature, pressure, and flow measurements in turbine systems.
- GE IS215TCCPH1A Turbine Control Processor: The central CPU module that communicates with the IS215ACLEH1AB to execute control algorithms and coordinate system-wide operations.
- GE IS215PARPH1A Power Supply Module: Delivers redundant power to the IS215ACLEH1AB and other Mark VI components, ensuring continuous operation during voltage fluctuations.
Installation and Maintenance: GE IS215ACLEH1AB
Pre-installation Preparations:
Before installing the IS215ACLEH1AB, ensure the control rack is properly grounded and the power supply (125V DC) meets specifications. Clean the VME-compatible slot and align the module with the backplane connectors, securing it with the provided brackets. Connect Ethernet cables to the dual ports and terminate power wires at the terminal block, following GE’s wiring diagrams to avoid polarity errors. Configure network settings (IP address, subnet mask) via the module’s front-panel interface or GE’s Proficy™ software.
Before installing the IS215ACLEH1AB, ensure the control rack is properly grounded and the power supply (125V DC) meets specifications. Clean the VME-compatible slot and align the module with the backplane connectors, securing it with the provided brackets. Connect Ethernet cables to the dual ports and terminate power wires at the terminal block, following GE’s wiring diagrams to avoid polarity errors. Configure network settings (IP address, subnet mask) via the module’s front-panel interface or GE’s Proficy™ software.
Maintenance Recommendations:
- Routine Inspections: Monthly checks for loose connections, damaged cables, or abnormal LED indicators. Use compressed air to clean dust from vents and cooling fins to prevent overheating.
- Firmware Updates: Annually update firmware using GE’s official tools to access new features, security patches, and compatibility enhancements. Back up configuration files before updates to ensure quick recovery if issues arise.
- Diagnostic Testing: Quarterly run built-in self-tests to verify communication ports, memory integrity, and CPU performance. Reference GE’s diagnostic codes to troubleshoot faults and replace faulty components promptly.
- Spare Parts Management: Maintain a spare IS215ACLEH1AB in inventory, leveraging our global supply chain for rapid replacement of discontinued or urgent components. Our company’s extensive stock and 17 years of expertise ensure minimal downtime for critical repairs.
Product Guarantee: GE IS215ACLEH1AB
Our company provides a 12-month quality warranty for the GE IS215ACLEH1AB application control layer module, covering non-human-induced hardware defects, such as communication failures, power supply malfunctions, or physical damage. During the warranty period, we will replace any defective module at no cost, ensuring uninterrupted operation of your critical systems. For urgent needs or discontinued models, our global logistics network and partnerships with GE authorized suppliers enable rapid fulfillment, even for rare or obsolete components.
With 17 years of specialization in industrial control distribution, we are committed to delivering reliable products and exceptional service. The IS215ACLEH1AB exemplifies our dedication to quality, offering robust control and communication capabilities for mission-critical turbine systems. Contact us today to optimize your automation infrastructure with this advanced module.
