Product Overview

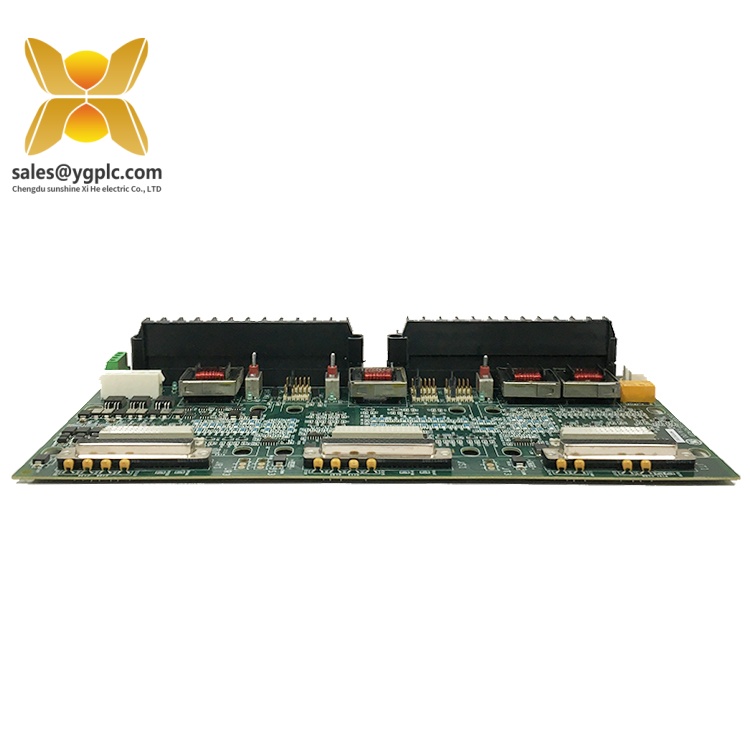

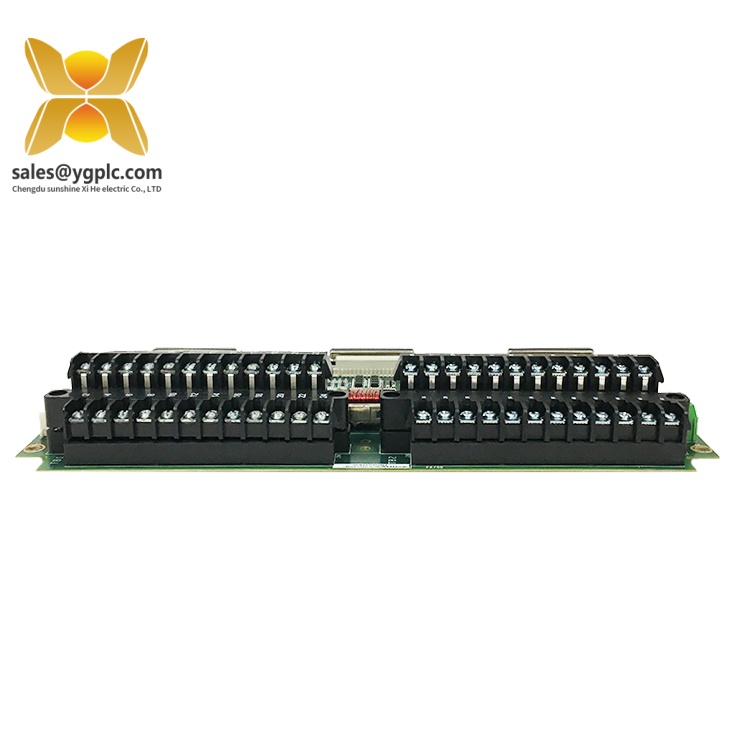

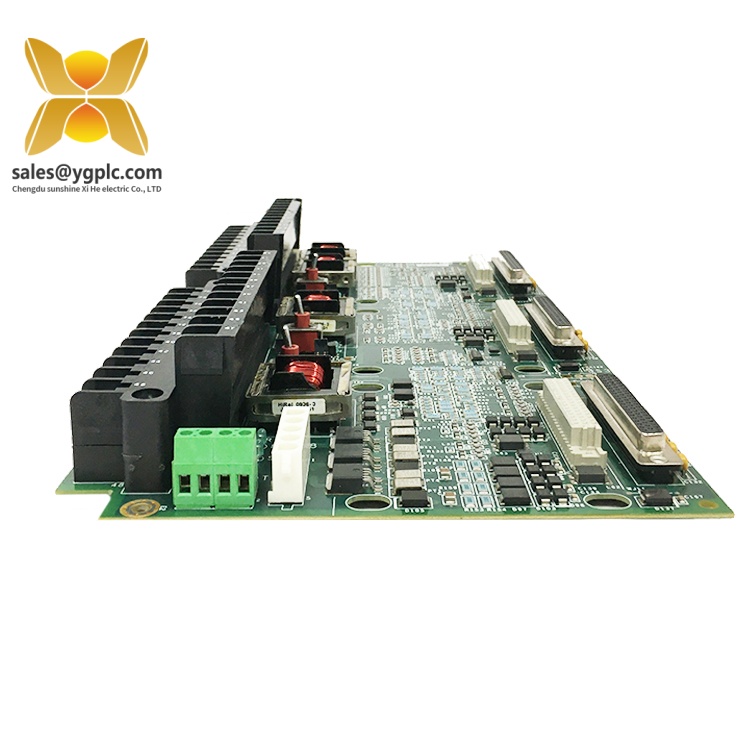

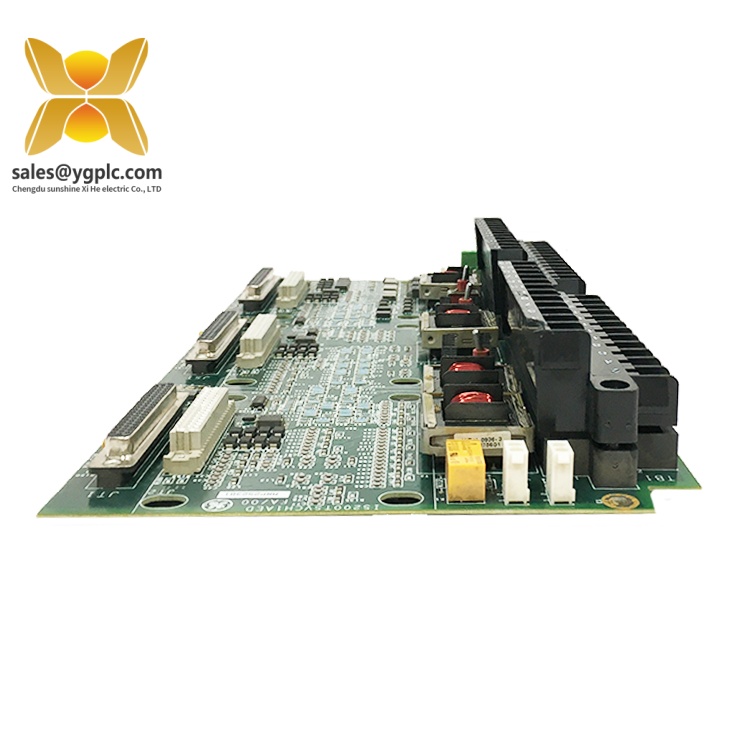

The GE IS200TSVCH1AED turbine control system module is a high-performance component designed for critical applications in GE’s Mark VI Speedtronic turbine control platform. As part of the IS200 series, this module serves as a central interface between the control system and field devices, enabling precise regulation of turbine operations in power generation, oil & gas, and heavy industrial environments.
Engineered for reliability, the IS200TSVCH1AED provides dual-channel servo control and analog input/output capabilities, supporting up to six LVDT (Linear Variable Differential Transformer) position sensors and two active pulse rate inputs for flow monitoring. Its redundant power architecture ensures continuous operation even in high-stress scenarios, while the 28V DC input voltage and integrated overcurrent protection safeguard against system failures. The module’s compact design (6.5 x 7 inches) and DIN rail mounting compatibility simplify integration into existing control cabinets, reducing installation complexity.
In automation systems, the IS200TSVCH1AED acts as a critical link between the Speedtronic controller and field equipment such as servo valves, actuators, and sensors. Its high-speed data processing and real-time feedback mechanisms enable accurate turbine speed control, load balancing, and fault diagnostics, ensuring optimal performance and minimizing downtime. By leveraging advanced signal conditioning and isolation technology, the module mitigates electromagnetic interference (EMI) and ensures stable operation in harsh industrial environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200TSVCH1AED |
| Manufacturer | GE |
| Product Type | Turbine Control System Module |
| Input Voltage | 28V DC |
| Output Voltage | 24V DC (regulated) |
| I/O Channels | 6 x LVDT inputs, 2 x pulse rate inputs |
| Communication Protocol | Modbus RTU/TCP |
| Physical Dimensions | 6.5 x 7 inches |
| Mounting Type | DIN rail |
| Weight | 1.2 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
IS200TSVCH1AED
Key Features and Advantages
Dual-Channel Redundancy: The IS200TSVCH1AED incorporates dual-channel servo control, ensuring uninterrupted operation even if one channel fails. This redundancy is critical for mission-critical applications, such as power plants, where downtime can result in significant financial losses.E-mail :sales@ygplc.com.
Precision Signal Handling: With support for LVDT sensors and pulse rate inputs, the module delivers high-accuracy position and flow monitoring, enabling precise turbine speed regulation and load control. Its 12-bit analog-to-digital conversion ensures minimal signal distortion, enhancing system reliability.
EMI Resistance: Advanced isolation transformers and noise-filtering circuitry protect the module from electromagnetic interference, making it suitable for use in environments with high electrical noise, such as petrochemical plants and steel mills.
Flexible Configuration: The module’s jumper-selectable servo coil current (10–120 mA) allows customization for different turbine types and applications. This adaptability reduces the need for additional hardware, streamlining system design and maintenance.
Easy Integration: The IS200TSVCH1AED interfaces seamlessly with GE’s Mark VI Speedtronic system, supporting Modbus communication for remote monitoring and diagnostics. Its Euro-Block terminals and 37-pin connector simplify wiring and reduce installation time.
IS200TSVCH1AED
Application Areas
The GE IS200TSVCH1AED turbine control system module is ideally suited for industries requiring precise turbine management:
- Power Generation: Integrates with Mark VI systems to control steam and gas turbines in power plants, ensuring stable energy output and grid synchronization.
- Oil & Gas: Manages compressor stations and refinery processes, providing real-time monitoring of flow rates and valve positions to optimize production efficiency.
- Industrial Manufacturing: Powers heavy machinery, such as rolling mills and extruders, by regulating motor speed and load distribution.
- Water Treatment: Controls pumps and valves in wastewater treatment plants, ensuring compliance with environmental standards through accurate flow control.
- Mining: Supports ventilation systems and conveyor belts in mining operations, enhancing safety and productivity through reliable turbine performance.
Related Products
- IS200TSVCH1A: A predecessor model with similar functionality but fewer I/O channels.
- IS200TSVCH2AED: An upgraded version with expanded analog input capabilities for complex turbine setups.
- IS200ADIIH1A: A dual-channel I/O module 配套使用 with the IS200TSVCH1AED for analog and digital signal processing.
- IS200ACLAH1A: An application control layer module that executes control algorithms and monitors system health.
- IS200AVSCG1A: An SCR control board for high-voltage turbine applications.E-mail :sales@ygplc.com.
- IS200BICLH1A: An IGBT drive module that manages high-power loads in conjunction with the IS200TSVCH1AED.
- IS200BPIBG1A: A phase logic module that enhances the module’s control capabilities for advanced industrial processes.
- IS200BPIHH1A: A bridge personality interface board for customized turbine configurations.
IS200TSVCH1AED
Installation and Maintenance
Installation Preparation:
Before installing the IS200TSVCH1AED, verify the input voltage (28V DC) and ensure the DIN rail is clean and properly grounded. Align the module with the rail and secure it using mounting clips. Connect power cables to the terminal blocks, ensuring torque specifications (35A max per terminal) are met. Link the module to adjacent components via the 37-pin connector (P1) and configure jumper settings (JP1/JP2) based on the required servo coil current.E-mail :sales@ygplc.com.
Before installing the IS200TSVCH1AED, verify the input voltage (28V DC) and ensure the DIN rail is clean and properly grounded. Align the module with the rail and secure it using mounting clips. Connect power cables to the terminal blocks, ensuring torque specifications (35A max per terminal) are met. Link the module to adjacent components via the 37-pin connector (P1) and configure jumper settings (JP1/JP2) based on the required servo coil current.E-mail :sales@ygplc.com.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks for loose connections, blown fuses, or signs of overheating. Clean the module’s surface to prevent dust accumulation.
- Fuse Replacement: Use GE-certified 5A fuses for overload protection. Avoid higher-rated fuses to maintain safety.
- Connector Checks: Inspect terminals for corrosion during annual maintenance. Re-seat connectors if necessary to ensure reliable signal transmission.
- Firmware Updates: While the IS200TSVCH1AED does not require firmware updates, consult GE’s technical documentation for hardware revisions or compatibility notices.
IS200TSVCH1AED
Product Warranty
We provide a 12-month quality warranty for the GE IS200TSVCH1AED turbine control system module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.E-mail :sales@ygplc.com.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your turbine control system with the IS200TSVCH1AED module.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.Whatsapp:+86 18859254943.
