Product Overview

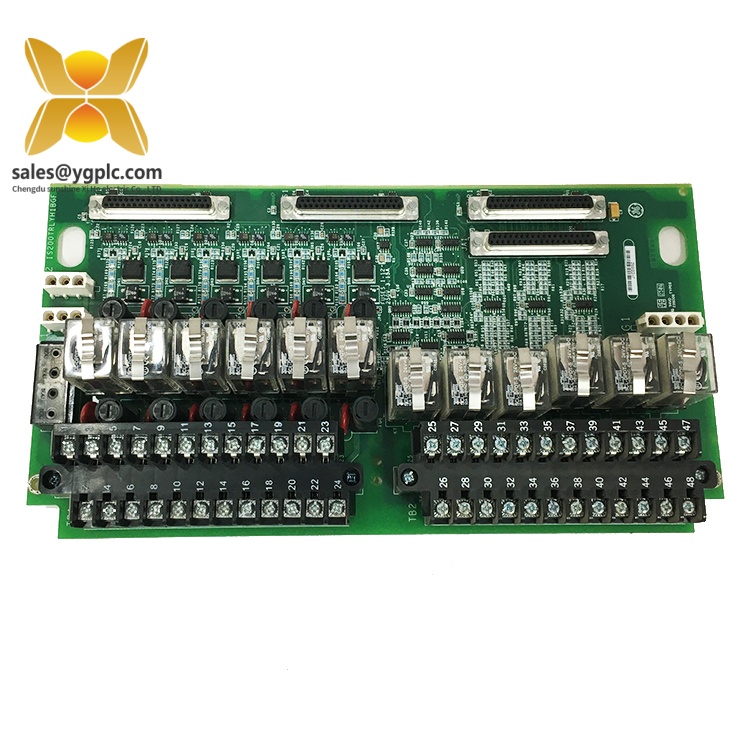

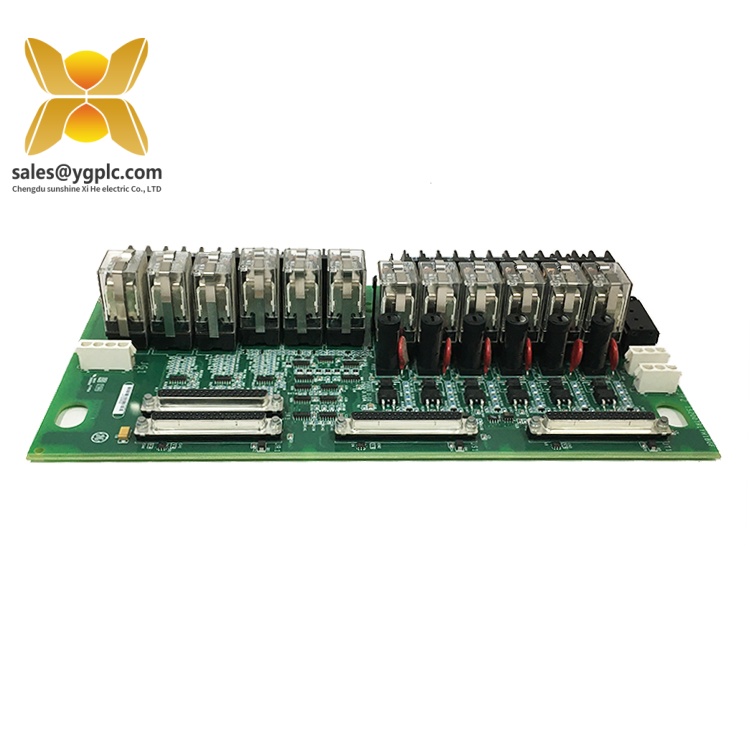

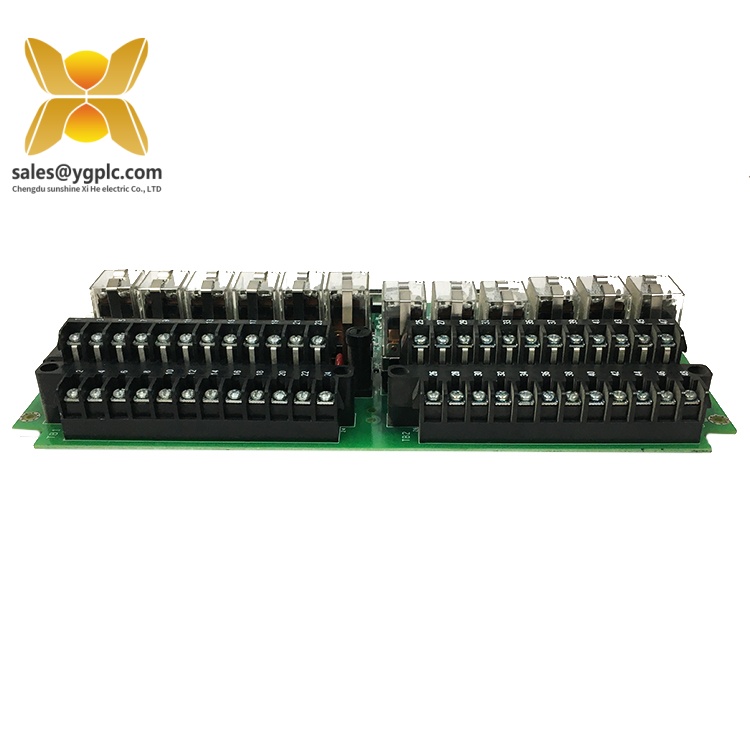

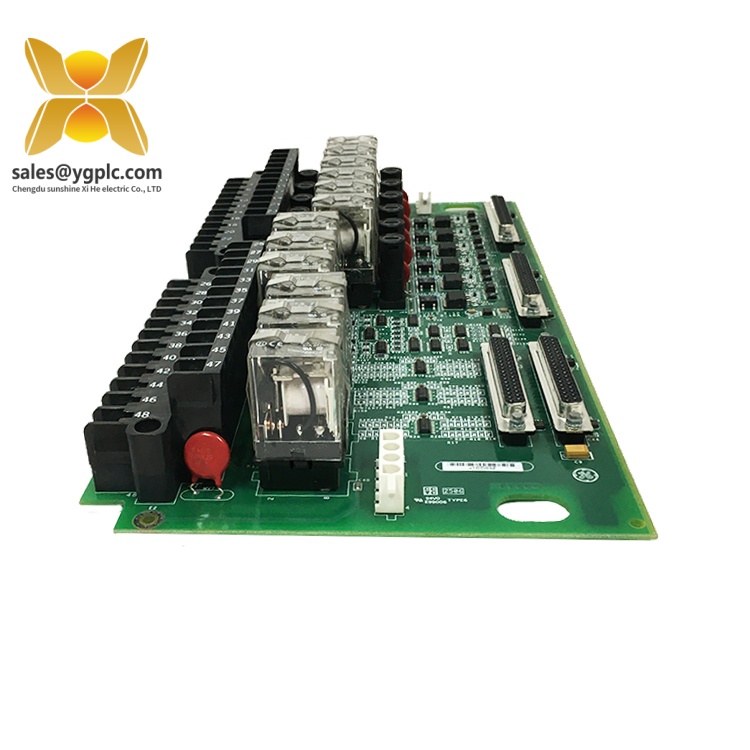

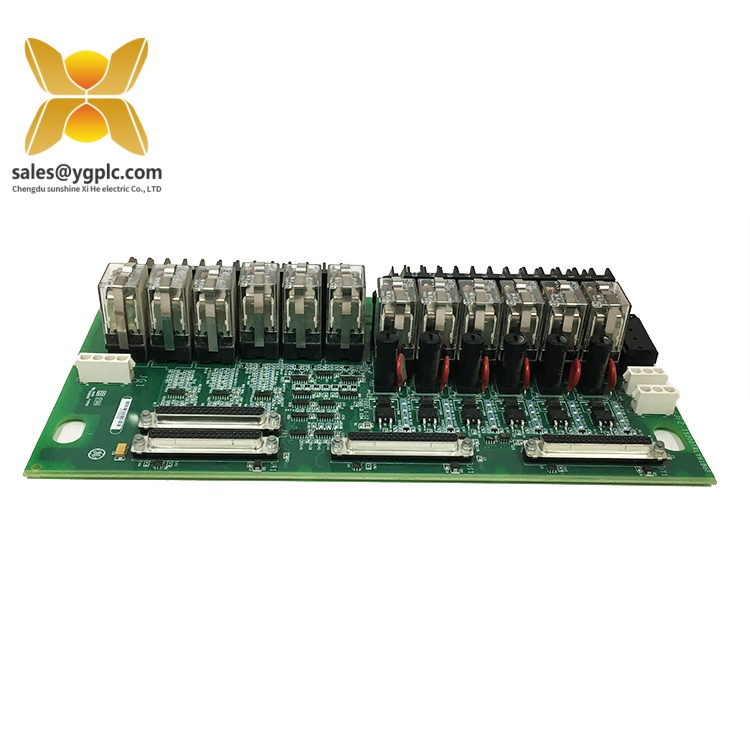

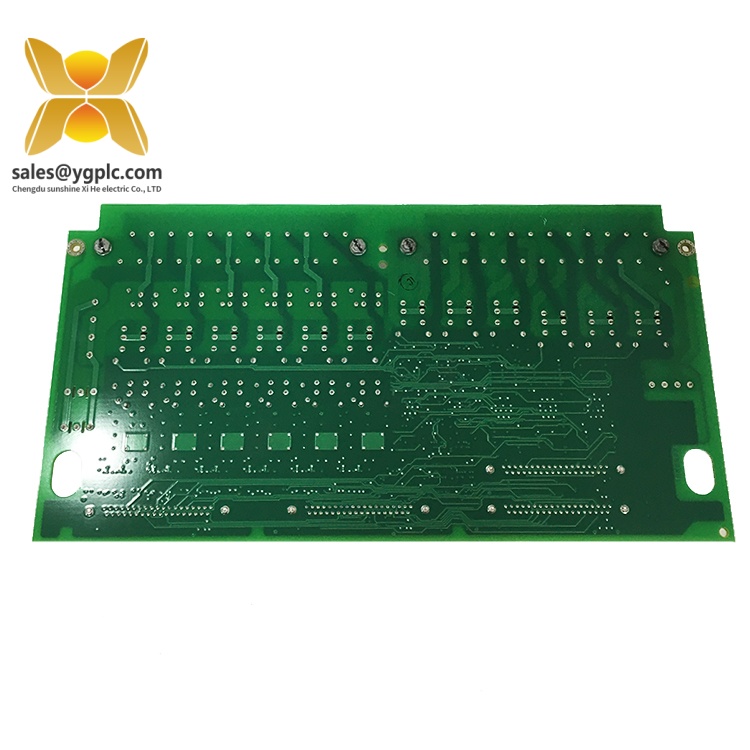

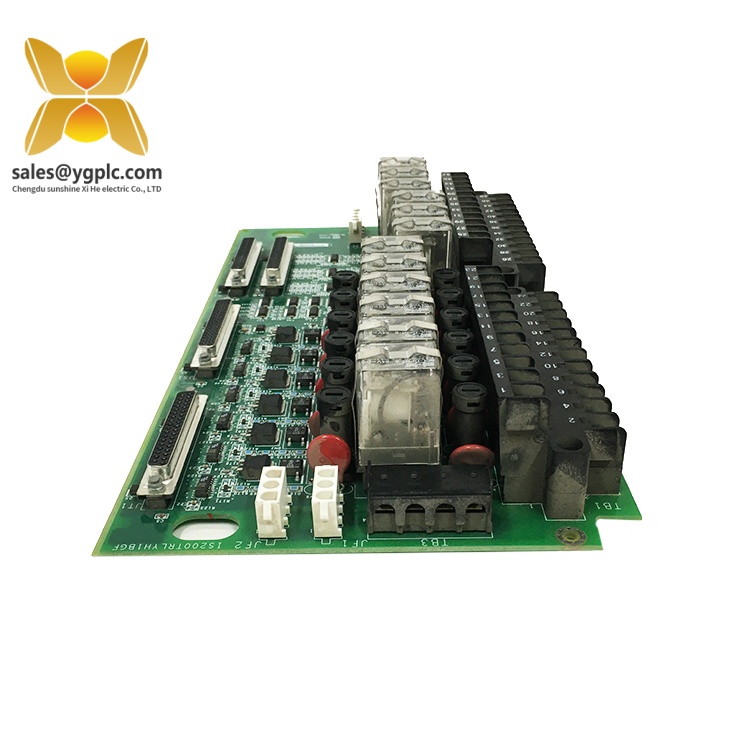

The GE IS200TRLYH1BGF termination relay card is a crucial component within GE’s renowned Mark VI turbine control system series. Engineered with precision, this board serves as a linchpin for managing relay operations, ensuring seamless control in industrial automation processes. As part of the IS200 series, it inherits the high – performance legacy of GE’s industrial control products.
The IS200TRLYH1BGF is designed to convert control signals into actionable switch operations, which are essential for driving various electrical and mechanical devices. In a complex industrial setup, especially in power generation plants where gas and steam turbines are involved, this board plays a pivotal role. It acts as an interface between the control system and the field devices, translating digital commands into physical actions. For example, it can be used to control the opening and closing of valves, the starting and stopping of motors, and other critical operations within a turbine control system. This not only enhances the overall system’s reliability but also contributes to efficient and stable operation, making it an indispensable part of industrial control ecosystems.E-mail :sales@ygplc.com.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200TRLYH1BGF |
| Manufacturer | GE |
| Product Type | Termination Relay Card |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | – 30°C to +65°C |
| Width | 17.8 cm |
| Height | 33.02 cm |
| Relay Configuration | 12 plug – in magnetic relays |
| Output Options (first six relays) | Configurable for dry, form – C contact outputs or driving external solenoids |
| Standard Power Sources | 125 V DC, 115/230 V AC |
| Optional Power Source | 24 V DC |
| Relay Types (7 – 11) | Unpowered isolated form – C contacts |
| Relay Type (12) | Isolated form – C contact for specialized applications |
| Connector Types (simplex) | Connector JA1 |
| Connector Types (TMR) | Connectors JR1, JS1, JT1 |
IS200TRLYH1BGF
Main Features and Advantages
High – Reliability Relay Operation
The IS200TRLYH1BGF is equipped with 12 plug – in magnetic relays. These relays are highly reliable and can be configured to suit different industrial applications. For instance, the first six relays can be set for dry, form – C contact outputs or used to drive external solenoids, providing flexibility in controlling various devices. The relays from 7 – 11 are unpowered isolated form – C contacts, and relay 12 is an isolated form – C contact for specialized applications such as ignition transformers. This diverse relay configuration ensures that the board can meet the complex requirements of different industrial processes.
Multiple Power Source Options
With standard power sources of 125 V DC, 115/230 V AC and an optional 24 V DC, the IS200TRLYH1BGF can adapt to different power supply setups in industrial environments. This versatility allows it to be easily integrated into existing systems without the need for major power infrastructure changes.Whatsapp:+86 18859254943.
Robust Fault Detection
The board features advanced fault detection mechanisms. It can detect loss of relay solenoid excitation current, alerting operators when the excitation current to the relay solenoids is lost. It also flags discrepancies between the actual and commanded coil currents. Additionally, it monitors communication with the I/O board and triggers safety measures if the cable is unplugged or communication is lost. This comprehensive fault detection ensures system integrity and minimizes the risk of operational errors.
IS200TRLYH1BGF
Application Areas
Power Generation
In power plants, the **GE IS200TRLYH1BGF is extensively used in gas and steam turbine control systems. It controls the starting, stopping, and speed regulation of turbines, ensuring stable power generation. For example, it can manage the relays that control the fuel supply valves in gas turbines, optimizing the combustion process for efficient power production.
Industrial Manufacturing
In manufacturing facilities, this termination relay card is used to control a wide range of machinery. It can be employed to operate conveyor belts, control the movement of robotic arms, and manage the switching of electrical equipment in production lines. Its reliable performance helps maintain the smooth operation of manufacturing processes, reducing downtime and increasing productivity.
Petrochemical Industry
Within the petrochemical sector, the IS200TRLYH1BGF plays a crucial role in controlling pumps, compressors, and valves. It ensures the safe and efficient transfer of fluids and gases in refineries and chemical plants. For instance, it can be used to control the relays that open and close valves in a pipeline, regulating the flow of petrochemical products.Whatsapp:+86 18859254943.
Related Products
- IS200ADIIH1A: A dual – channel I/O module that can be used in conjunction with the IS200TRLYH1BGF to expand the input and output capabilities of the control system. It helps in gathering more sensor data and controlling additional actuators.
- IS200ACLAH1A: An application control layer module. It works with the IS200TRLYH1BGF to execute control algorithms, enhancing the overall control functionality of the Mark VI system.
- IS200TTURH1CCC S1DF00Z: A terminal turbine board that, like the IS200TRLYH1BGF, is part of the Mark VI system. It focuses more on turbine – specific control functions such as overspeed protection and synchronization, while the IS200TRLYH1BGF is more about relay – based control for various devices in the system.
- IS200AVSCG1A: An SCR control board that can be integrated with the IS200TRLYH1BGF in applications where high – voltage control is required, especially in systems with thyristor – based power control.
- IS200BPIHH1A: A bridge personality interface board that can be used to customize the functionality of the IS200TRLYH1BGF according to specific application requirements, enabling better integration with unique industrial processes.
IS200TRLYH1BGF
Installation and Maintenance
Installation Preparation:
Before installing the IS200TRLYH1BGF, ensure that the power supply voltage matches the board’s requirements. The board has standard power source options of 125 V DC, 115/230 V AC, and an optional 24 V DC. Check the physical dimensions (17.8 cm width and 33.02 cm height) to ensure a proper fit in the control cabinet. Clean the area where the board will be mounted to prevent dust and debris from interfering with its operation. When handling the board, use anti – static precautions to avoid damaging the sensitive electronic components. Identify the correct connector types (JA1 for simplex and JR1, JS1, JT1 for TMR configurations) and ensure proper alignment during connection.Whatsapp:+86 18859254943.
Before installing the IS200TRLYH1BGF, ensure that the power supply voltage matches the board’s requirements. The board has standard power source options of 125 V DC, 115/230 V AC, and an optional 24 V DC. Check the physical dimensions (17.8 cm width and 33.02 cm height) to ensure a proper fit in the control cabinet. Clean the area where the board will be mounted to prevent dust and debris from interfering with its operation. When handling the board, use anti – static precautions to avoid damaging the sensitive electronic components. Identify the correct connector types (JA1 for simplex and JR1, JS1, JT1 for TMR configurations) and ensure proper alignment during connection.Whatsapp:+86 18859254943.
Maintenance Recommendations:
Regularly inspect the IS200TRLYH1BGF for any signs of physical damage, such as cracks on the circuit board or loose connections. Check the relays for proper operation, ensuring that they are switching as expected. The board has a temperature rating of 0°C to 60°C during operation and – 30°C to +65°C during storage. Monitor the operating environment to ensure these temperature limits are not exceeded. Periodically test the fault detection mechanisms of the board to ensure they are functioning correctly. If any issues are detected, refer to the GE documentation for troubleshooting steps or contact a qualified technician.
IS200TRLYH1BGF
Product Warranty
Our company provides a one – year quality warranty for the GE IS200TRLYH1BGF termination relay card. This warranty covers hardware failures resulting from non – human factors. In case the product experiences performance anomalies or functional failures during the warranty period, we will provide replacement services. Given our 17 – year – long presence in the industrial control parts distribution business, we have an extensive global supply chain network. This enables us to respond promptly to customers’ procurement needs for scarce spare parts, even for discontinued models. We are committed to ensuring the continuous and stable operation of industrial systems by providing reliable products and services.Whatsapp:+86 18859254943.
