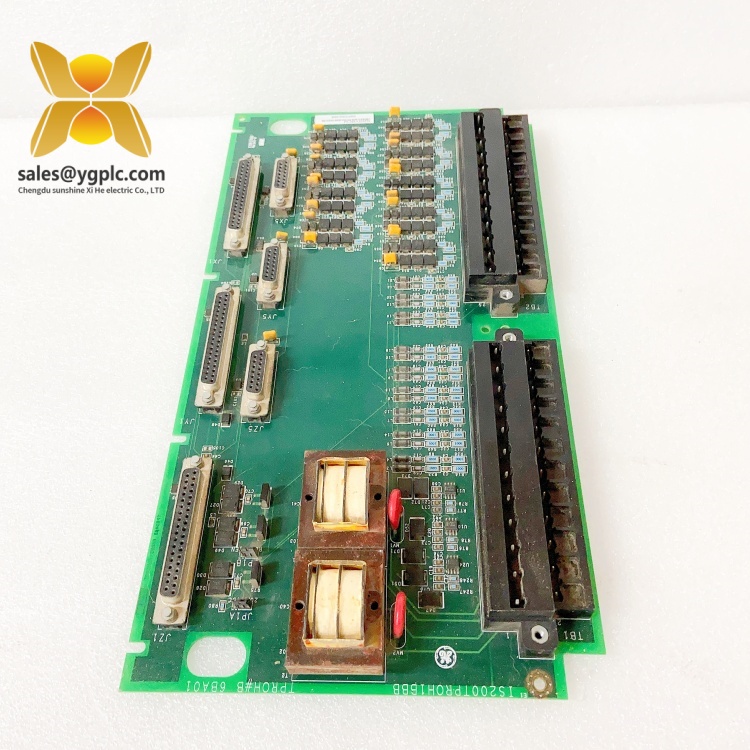

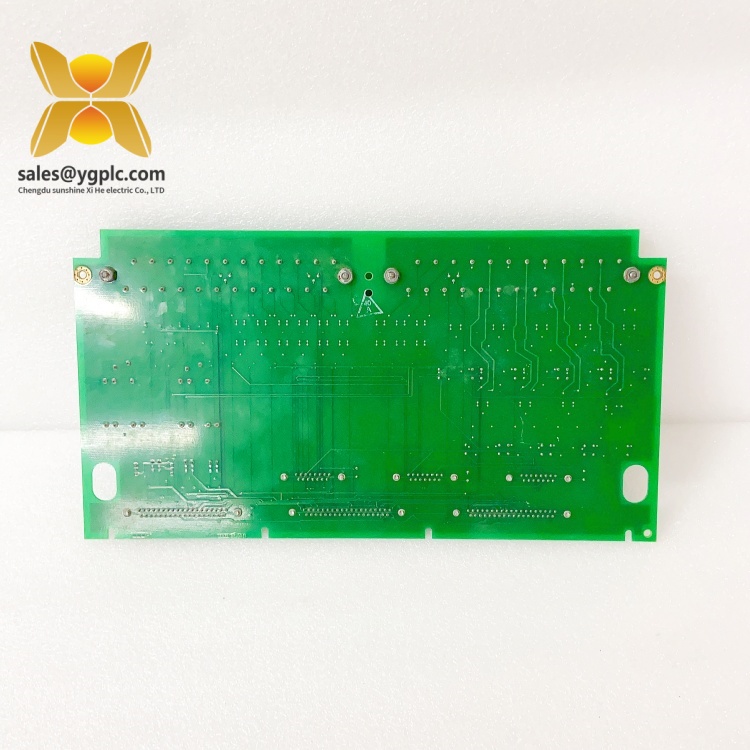

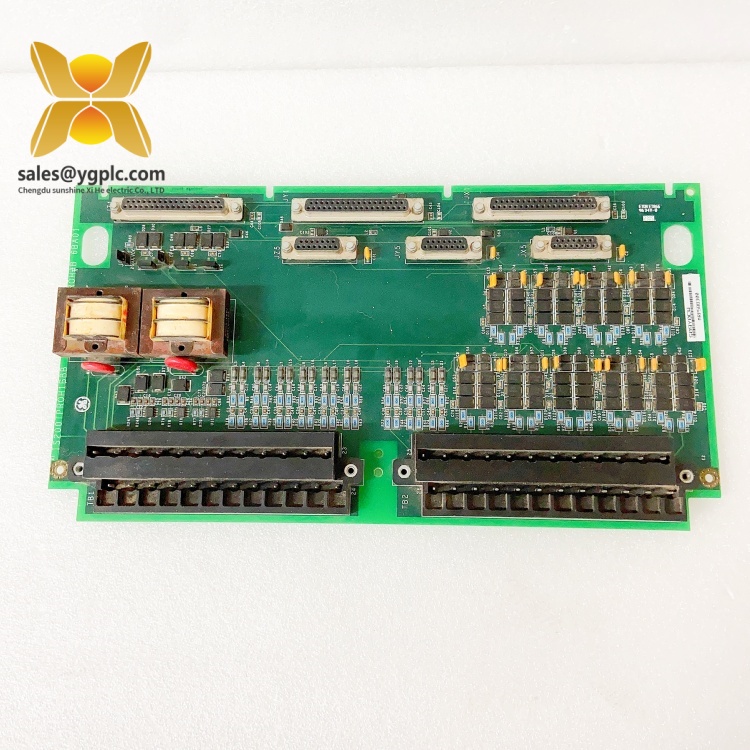

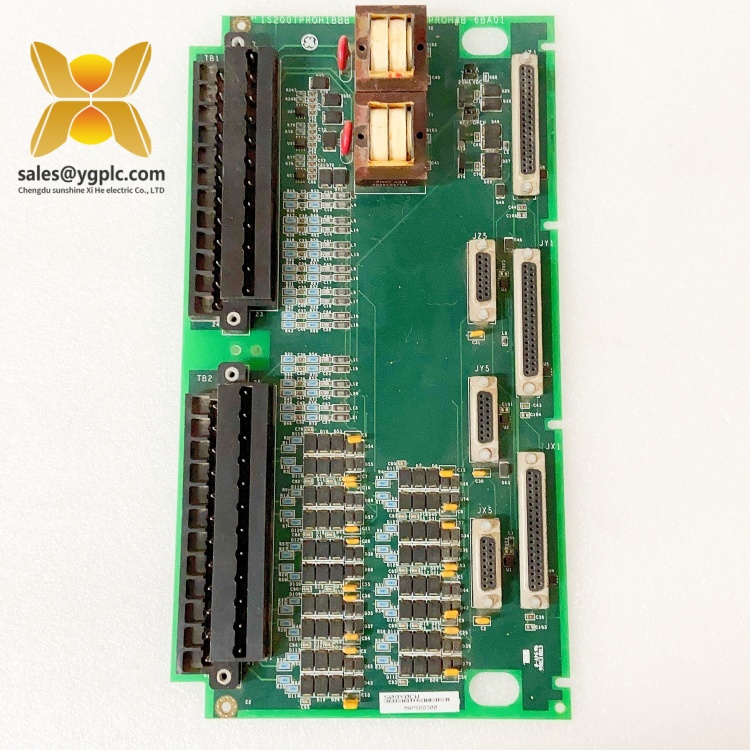

GE IS200TPROH1BCB Turbine Protection Module
Product Overview: GE IS200TPROH1BCB
The GE IS200TPROH1BCB turbine protection module is a high-reliability industrial control component designed for GE’s Mark VIe Turbine Control System, a cornerstone of power generation and process automation. Engineered to safeguard steam and gas turbines from critical failures, this module serves as a vital component in ensuring operational safety and efficiency across mission-critical applications. The IS200TPROH1BCB integrates advanced protection algorithms with robust hardware, monitoring key turbine parameters and triggering safety interlocks to prevent damage from overspeed, vibration, or thermal stress.
As part of the IS200 series for Mark VIe systems, the IS200TPROH1BCB features the TURB PROT (Turbine Protection) function, processing inputs from speed sensors, vibration monitors, and temperature transducers to execute precise protective actions. Its dual-redundant design and hot-swappable capability ensure continuous operation during maintenance, while built-in diagnostic tools enable real-time fault detection. The module’s wide operating temperature range (-40°C to +70°C) and IP20 protection rating make it suitable for harsh industrial environments, including power plants, refineries, and combined cycle facilities.
In automation architectures, the IS200TPROH1BCB acts as a safety-critical node, interfacing with PLCs, DCS systems, and human-machine interfaces (HMIs) to provide comprehensive turbine protection. By integrating seamlessly with GE’s Mark VIe ecosystem, this module enhances system reliability, reduces unplanned downtime, and supports predictive maintenance strategies, ultimately optimizing power generation efficiency and extending equipment lifespan.
Technical Specifications: GE IS200TPROH1BCB
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200TPROH1BCB |
| Manufacturer | GE |
| Product Type | Turbine Protection Module |
| Input Voltage | 24V DC (±10%) |
| Input Channels | 8 digital inputs, 4 analog inputs |
| Output Signals | Relay outputs (24V DC, 5A), 4–20 mA signals |
| Communication Protocol | Modbus RTU, Ethernet (GE Fast Ethernet) |
| Physical Dimensions | 228.6 mm (H) × 127 mm (W) × 101.6 mm (D) |
| Weight | 1.5 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (GE Mark VIe chassis) |
| Compliance | IEEE 1511, API 612, NEMA ICS 6 |
| Country of Origin | United States |
Main Features and Advantages: GE IS200TPROH1BCB
Advanced Turbine Protection Logic: The IS200TPROH1BCB incorporates pre-programmed protection algorithms for overspeed, vibration, and thermal overload, ensuring rapid response to critical conditions. Its triple modular redundancy (TMR) capability enhances fault tolerance, making it suitable for safety-instrumented systems (SIS).
Redundant and Hot-Swappable Design: Dual power inputs and communication paths minimize downtime, while hot-swappable hardware allows module replacement without system shutdown. This design is critical for maintaining continuous operation in power plants where interruptions impact grid stability.
Comprehensive Diagnostic Capabilities: Built-in self-test routines and real-time status indicators (LEDs) enable quick fault identification, reducing troubleshooting time. The module’s fault logging feature records event histories for post-analysis, supporting root cause determination.
Flexible Communication Interfaces: With support for Modbus and GE’s proprietary Fast Ethernet, the IS200TPROH1BCB integrates seamlessly with legacy and modern control systems. This flexibility allows data sharing with SCADA platforms for centralized monitoring and analytics.
Industrial-Grade Durability: The module’s rugged construction and wide temperature tolerance ensure reliable performance in high-vibration environments typical of turbine installations. Its EMI/RFI shielding protects against electromagnetic interference, maintaining signal integrity.
Application Areas: GE IS200TPROH1BCB
The GE IS200TPROH1BCB turbine protection module is essential for industries relying on turbine-driven power generation and process control:
- Power Generation: Installed in thermal, hydro, and combined-cycle power plants to protect steam turbines from overspeed and mechanical failures, ensuring stable grid supply. The module’s quick response times are critical for preventing catastrophic equipment damage.
- Oil and Gas: Deployed in refineries and pipeline compressor stations to monitor gas turbines, triggering safety shutdowns in the event of vibration anomalies or thermal stress. This enhances operational safety in hazardous environments.
- Chemical and Petrochemical: Used in steam turbine-driven pumps and generators, the IS200TPROH1BCB safeguards processing equipment from failures that could disrupt production or pose safety risks.
- District Heating and Cooling: Controls turbines in cogeneration plants, balancing power and thermal energy production while maintaining protection against operational anomalies.
- Marine and Aerospace: Supports turbine systems in ship propulsion and aircraft ground support equipment, where reliability is non-negotiable for mission-critical operations.
Related Products: GE IS200TPROH1BCB
- GE IS200TURPH1AAA (Turbine Protection Module): A base model with similar functionality, offering basic turbine protection for simpler setups.
- GE IS200TCSBH1AAA (Turbine Control System Module): Works alongside the IS200TPROH1BCB to provide comprehensive turbine control, integrating protection and operational management.
- GE IS200TSVIH1BBA (Turbine Speed/Vibration Interface Module): Feeds speed and vibration data to the IS200TPROH1BCB, enhancing protection accuracy.
- GE IS200TCTAH1AAA (Turbine Control Terminal Assembly): Provides wiring and connectivity for the IS200TPROH1BCB, simplifying installation in Mark VIe systems.
- GE IS200TBPSH1ABA (Turbine Bypass Control Module): Complements the IS200TPROH1BCB by managing turbine bypass valves during transient conditions.
- GE IS200TPPBH1BAA (Turbine Power Protection Module): Extends protection to include power output monitoring, working in tandem with the IS200TPROH1BCB.
Installation and Maintenance: GE IS200TPROH1BCB
Pre-installation Preparations:
Before installing the IS200TPROH1BCB, verify the control cabinet is properly grounded and ventilated to meet thermal requirements. Ensure the power supply (24V DC) matches specifications and that the Mark VIe chassis is compatible. Mount the module in the designated rack slot, securing it with retention brackets. Connect input signals from speed sensors and vibration monitors using shielded cables to minimize interference, and link output relays to the shutdown circuit. Configure communication parameters (IP address, baud rate) via GE’s Proficy Machine Edition software.
Before installing the IS200TPROH1BCB, verify the control cabinet is properly grounded and ventilated to meet thermal requirements. Ensure the power supply (24V DC) matches specifications and that the Mark VIe chassis is compatible. Mount the module in the designated rack slot, securing it with retention brackets. Connect input signals from speed sensors and vibration monitors using shielded cables to minimize interference, and link output relays to the shutdown circuit. Configure communication parameters (IP address, baud rate) via GE’s Proficy Machine Edition software.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include verifying LED status indicators, tightening cable connections, and cleaning dust from ventilation slots. Use the module’s diagnostic interface to review fault logs and system health.
- Functional Testing: Quarterly simulate protection scenarios (e.g., overspeed, vibration spikes) to ensure relay outputs and communication remain responsive. Calibrate input sensors to maintain measurement accuracy.
- Firmware Updates: Periodically update firmware through GE’s official channels to access new protection algorithms and security patches, ensuring compatibility with evolving system requirements.
- Spare Parts Management: Keep a spare IS200TPROH1BCB on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.
Product Guarantee: GE IS200TPROH1BCB
Our company provides a 12-month quality warranty for the GE IS200TPROH1BCB turbine protection module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with faulty relays, communication failures, or processing errors at no cost. For discontinued models or urgent needs, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous operation of your critical systems.
With 17 years of expertise in industrial control distribution, we are committed to delivering reliable products and exceptional service. The IS200TPROH1BCB exemplifies our dedication to quality, offering robust turbine protection for power generation and process industries. Contact us today to enhance your system’s safety and reliability with this advanced protection module.
Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for GE’s official technical manuals.
