Sale!

GE IS200SAMBH1ABA | Sensor Interface Module for Mark VIe Turbine Control System | IS200STCIH2A GE

Original price was: $5,600.00.Current price is: $4,500.00.

Brand model:GE
Product Name: IS200SAMBH1ABA
Warranty: 1 year
Size:178 mm (H) × 101 mm (W) × 76 mm (D)
Weight:1.27kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Category: Brand:

Description

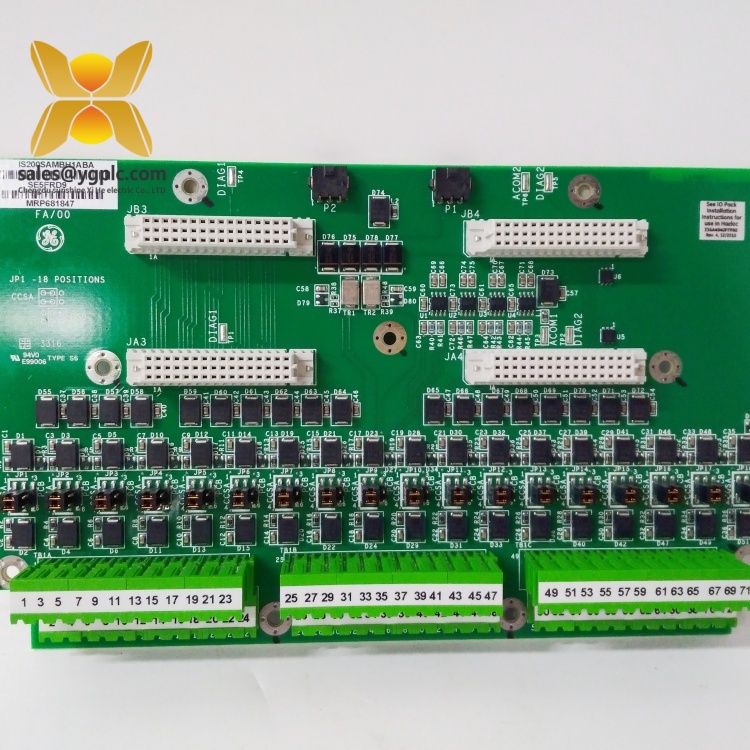

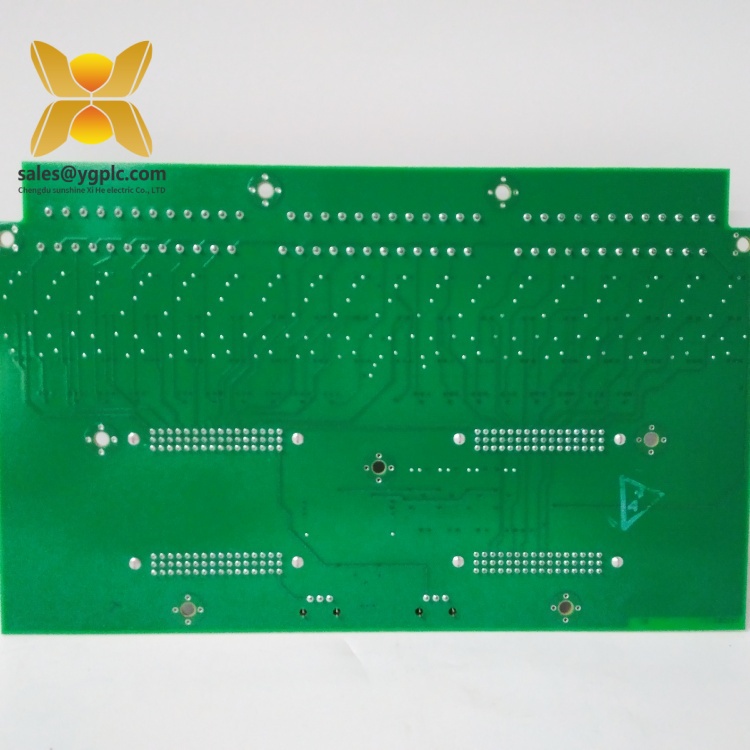

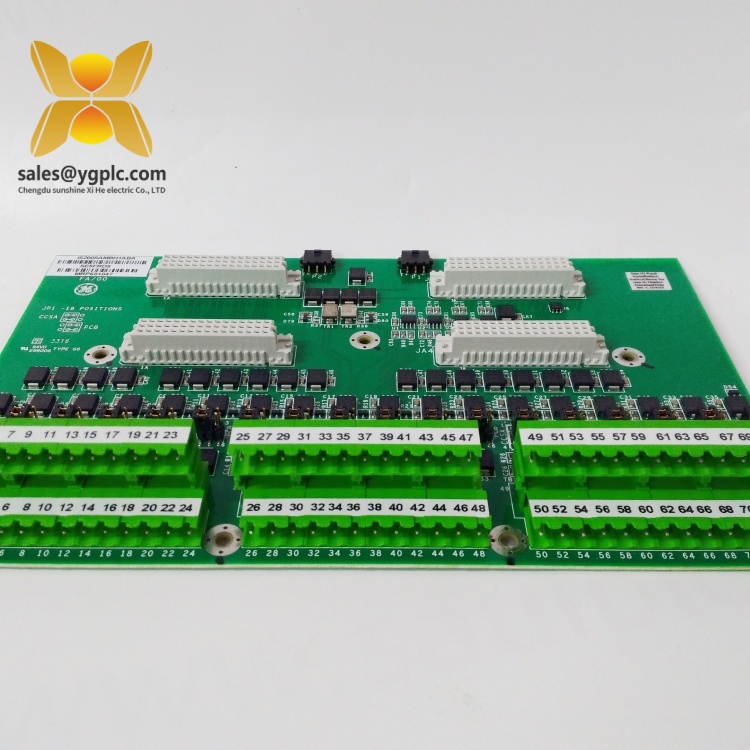

GE IS200SAMBH1ABA Sensor Interface Module for Mark VIe Turbine Control System

Product Overview: GE IS200SAMBH1ABA

The GE IS200SAMBH1ABA sensor interface module is a high-reliability industrial component designed for GE’s Mark VIe turbine control system, a cornerstone of advanced power generation and process automation. As a critical interface between field sensors and the control system, this module enables seamless integration of analog and digital signals from various transducers, ensuring precise monitoring and control of turbine operations. The IS200SAMBH1ABA serves as a bridge for converting sensor data into standardized outputs, supporting real-time diagnostics and predictive maintenance in mission-critical power and industrial applications.



Engineered for durability in harsh environments, the IS200SAMBH1ABA features redundant power supplies and hot-swappable functionality, allowing maintenance without system shutdown. Its wide input range (4–20 mA, 0–10 V DC) accommodates diverse sensor types, while built-in signal conditioning ensures accurate data transmission. The module’s -40°C to +70°C operating range and IP20 protection rating make it suitable for demanding settings, from thermal power plants to petrochemical facilities. As part of the Mark VIe ecosystem, the IS200SAMBH1ABA enhances system reliability by providing robust connectivity and fault tolerance for turbine control networks.

Technical Specifications: GE IS200SAMBH1ABA

Parameter Name Parameter Value
Product Model IS200SAMBH1ABA
Manufacturer GE
Product Type Sensor Interface Module
Input Signals 4–20 mA, 0–10 V DC (analog), dry contacts (digital)
Output Signals Isolated 4–20 mA, RS485 (Modbus RTU)
Communication Protocol Modbus RTU, Profibus DP
Physical Dimensions 228.6 mm (H) × 127 mm (W) × 76.2 mm (D)
Weight 1.5 kg
Operating Temperature -40°C to +70°C
Humidity 5–95% non-condensing
Mounting Type Rack-mounted (Mark VIe control system)
Power Supply 24V DC (dual redundant)
Country of Origin United States

Main Features and Advantages: GE IS200SAMBH1ABA

Redundant and Reliable Design: The IS200SAMBH1ABA incorporates dual redundant power inputs, ensuring continuous operation even if one supply fails. This redundancy is critical for preventing unplanned downtime in power generation systems where turbine control is essential.



Flexible Signal Integration: With support for both analog (4–20 mA/0–10 V DC) and digital (dry contact) inputs, the module adapts to diverse sensor types, from pressure transducers to proximity switches. Its built-in signal conditioning minimizes noise and interference, maintaining data integrity.



Hot-Swappable Functionality: The module can be replaced without powering down the system, enabling maintenance during operation. This feature reduces mean time to repair (MTTR) and enhances overall system availability in continuous processes.



Industrial-Grade Durability: Designed to withstand harsh industrial environments, the IS200SAMBH1ABA features a rugged metal enclosure and wide temperature tolerance. It resists vibration, dust, and electromagnetic interference, ensuring reliable performance in power plants and heavy manufacturing.



Seamless System Integration: As part of GE’s Mark VIe system, the module integrates seamlessly with other control components (e.g., CP3000 controllers, IS200TCCBH1A) via standardized interfaces, simplifying system configuration and reducing integration complexity.

Application Areas: GE IS200SAMBH1ABA

The GE IS200SAMBH1ABA sensor interface module is essential for industries requiring precise turbine control and sensor data management:



  • Power Generation: Installed in thermal, combined-cycle, and hydroelectric power plants to monitor turbine vibrations, pressure, and temperature, ensuring optimal energy production and grid stability.
  • Oil and Gas: Deployed in refineries and natural gas processing facilities to control compressor turbines and monitor process parameters in harsh, corrosive environments.
  • Industrial Manufacturing: Used in large-scale manufacturing plants to manage steam turbines for power generation and process heating, supporting continuous production lines.
  • Marine Propulsion: Integrates with marine turbine systems for propulsion and power generation, withstanding the harsh conditions of offshore operations.
  • District Heating: Manages steam turbines in district heating networks, ensuring efficient heat distribution and system reliability.

Related Products: GE IS200SAMBH1ABA

  1. GE IS200TCCBH1A Controller Module: A 配套使用 controller for Mark VIe systems, processing data from the IS200SAMBH1ABA for turbine control.
  2. GE IS200DSVIH1A Drive Module: Controls turbine actuators, working alongside the IS200SAMBH1ABA for precise motion management.
  3. GE IS200ESVCH1A Exciter Control Module: Manages turbine excitation systems, integrating with sensor data from the IS200SAMBH1ABA.
  4. GE IS200PWRCH1A Power Supply Module: Provides redundant power to the IS200SAMBH1ABA and other Mark VIe components.
  5. GE IS200ALGCH1A Analog Input Module: Expands analog signal processing capabilities, complementing the IS200SAMBH1ABA in complex sensor networks.
  6. GE IS200DVIHH1A Digital Input Module: Handles digital sensor signals, working in conjunction with the IS200SAMBH1ABA for comprehensive data acquisition.

Installation and Maintenance: GE IS200SAMBH1ABA

Pre-installation Preparations:
Before installing the IS200SAMBH1ABA, verify the control rack is properly grounded and powered (24V DC). Clean the rack slot and ensure no debris is present. Slide the module into the designated slot, securing it with retention brackets. Connect sensor cables to the terminal block, following GE’s wiring diagrams to ensure correct polarity and shielding. Configure input parameters (e.g., signal type, scaling) using GE’s Proficy software and test signal transmission before commissioning.



Maintenance Recommendations:



  • Routine Inspections: Monthly visual checks for loose connections, cable wear, or overheating. Use the module’s status LEDs to verify operational health.
  • Calibration: Annually calibrate analog inputs using a certified signal source to maintain measurement accuracy. Reference GE’s calibration procedures for step-by-step guidance.
  • Firmware Updates: Periodically update firmware via the control system’s communication interface to access new features and bug fixes.
  • Spare Parts Management: Keep a spare IS200SAMBH1ABA on hand, leveraging our global supply chain for quick replacement of discontinued or urgent components.

Product Guarantee: GE IS200SAMBH1ABA

Our company provides a 12-month quality warranty for the GE IS200SAMBH1ABA sensor interface module, covering non-human-induced hardware defects. During the warranty period, we will replace any module with signal processing failures, power supply issues, or physical damage at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt fulfillment, minimizing downtime and supporting continuous industrial operation.



With 17 years of expertise in industrial control distribution, we are committed to reliable products and exceptional service. The IS200SAMBH1ABA exemplifies our dedication to quality, offering robust sensor integration for critical turbine control systems. Contact us today to optimize your industrial automation with this advanced interface module.



Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for GE’s official technical manuals.
