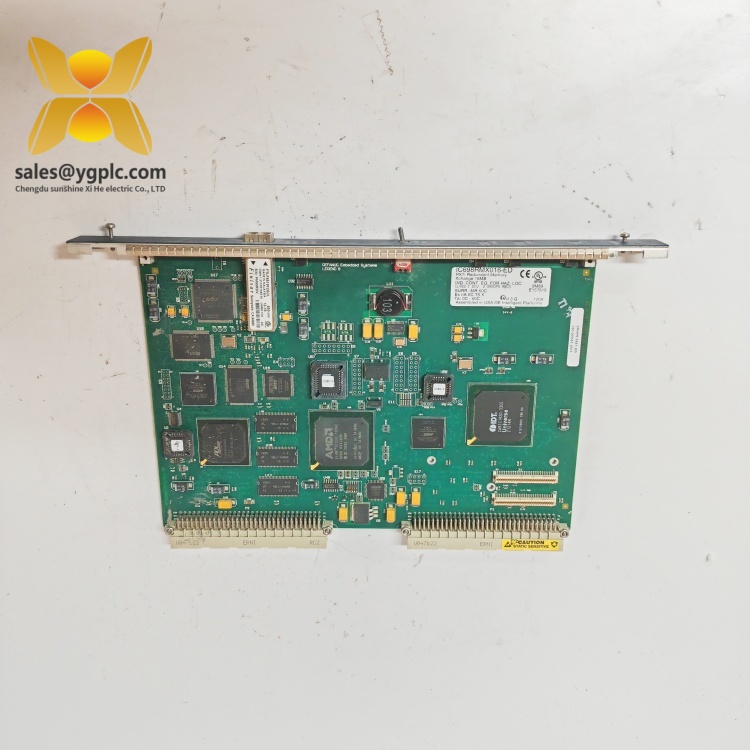

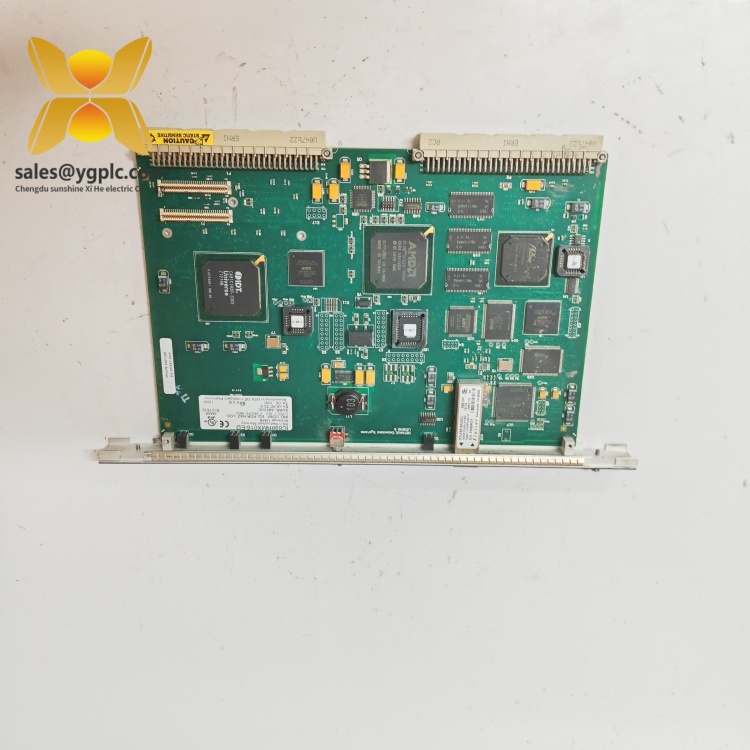

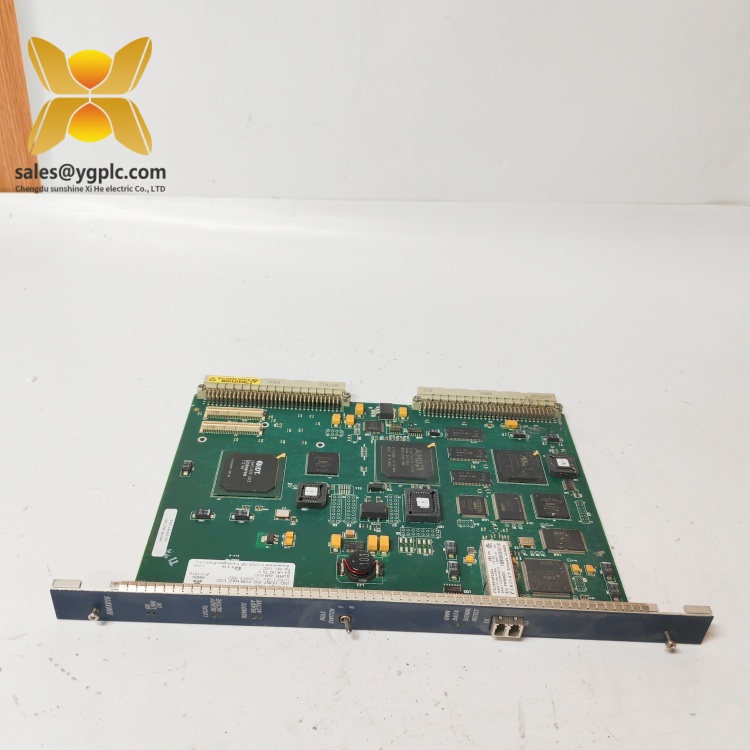

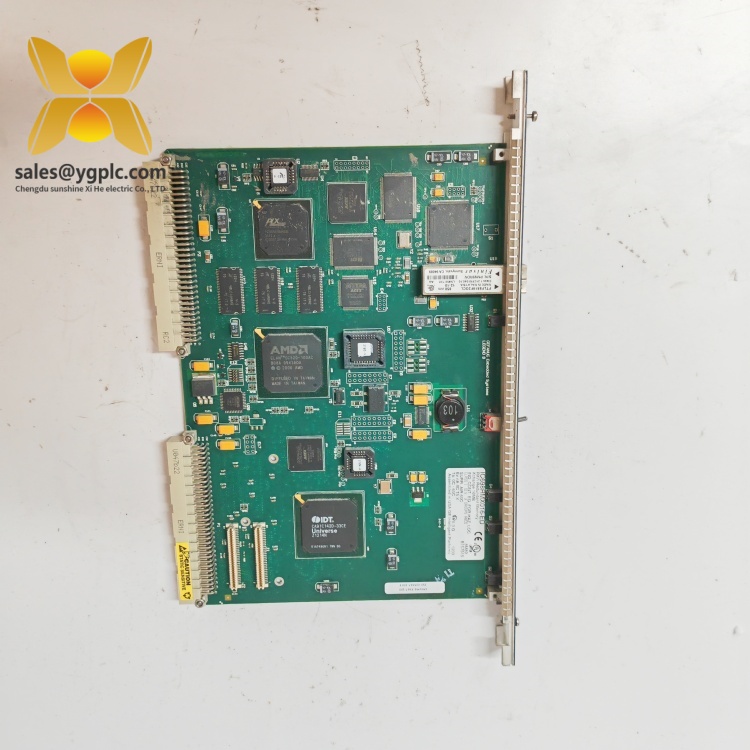

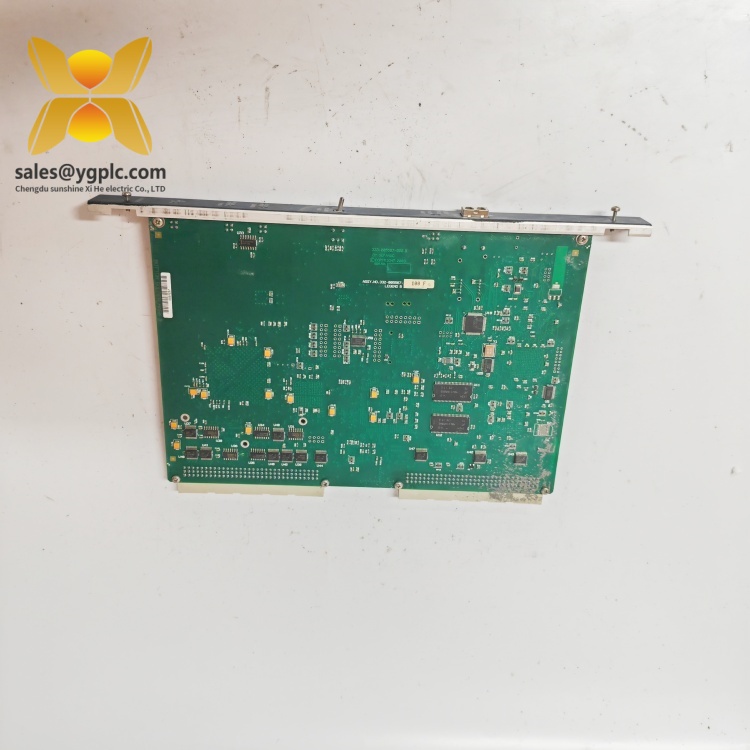

GE IC698RMX016-ED
GE IC698RMX016-ED
GE IC698RMX016-ED
GE IC698RMX016-ED
GE IC698RMX016-ED

GE IC698RMX016-ED | Redundant master module | IC693MDL655E GE

Original price was: $1,000.00.Current price is: $700.00.

Brand model:GE
Product Name:IC698RMX016-ED
Warranty: 1 year
Size:100mm (W) x 120mm (H) x 80mm (D)
Weight:0.85kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days
Order time: one month after payment

Get a Quote
Category: Brand:

Description

GE IC698RMX016-ED Product Specification

Product Overview：GE IC698RMX016-ED

The GE IC698RMX016-ED is a high-reliability redundant master module designed for industrial automation systems, engineered by GE (General Electric), a pioneer in power and control solutions. As a core component of the PACSystems RX7i platform, this module ensures seamless redundancy in critical control applications, making it indispensable for industries requiring uninterrupted operation, such as oil and gas, power generation, and water treatment. The GE IC698RMX016-ED is specifically designed to provide failover capability between primary and secondary controllers, minimizing downtime and enhancing system resilience.



Featuring dual processors and independent power supplies, the GE IC698RMX016-ED enables real-time synchronization of control logic and data between redundant controllers. This ensures that if the primary module fails, the secondary module assumes control within milliseconds, maintaining continuous operation without loss of data or functionality. The module supports hot-swappable functionality, allowing for maintenance or replacement without powering down the system, a critical feature in 24/7 industrial environments. Compatible with GE’s Proficy Machine Edition software, the GE IC698RMX016-ED offers intuitive configuration and diagnostics, streamlining system setup and troubleshooting.



In automation architectures, the GE IC698RMX016-ED acts as the backbone of redundant control systems, ensuring high availability for processes where failure could lead to significant operational losses or safety hazards. Its robust design withstands harsh conditions, including wide temperature ranges (-40°C to +70°C) and high vibration, while supporting advanced communication protocols like Ethernet/IP and Modbus TCP for seamless integration with supervisory systems. By combining redundancy, scalability, and ease of use, this module delivers long-term value by reducing maintenance costs and improving overall system reliability.

Technical Specifications：GE IC698RMX016-ED

Parameter Name Parameter Value
Product Model GE IC698RMX016-ED
Manufacturer GE (General Electric)
Product Type Redundant Master Module
Platform PACSystems RX7i
Processor Dual 1.2 GHz PowerPC processors
Memory 512 MB Flash, 1 GB DDR3 SDRAM
Communication Interfaces 2x Gigabit Ethernet (10/100/1000BaseT), 2x RS-232/485
Power Supply 24 VDC ±20% (dual isolated inputs for redundancy)
Physical Dimensions 171.45 mm (W) × 203.2 mm (H) × 114.3 mm (D)
Weight 1.8 kg
Operating Temperature -40°C to +70°C
Humidity 5% to 95% non-condensing
Certifications CE, UL, CSA, Class I Div 2 (hazardous locations)
GE IC698RMX016-ED

GE IC698RMX016-ED

Main Features and Advantages：GE IC698RMX016-ED

True Redundancy with Instant Failover: The GE IC698RMX016-ED employs a dual-processor architecture to maintain identical states between primary and secondary modules. This ensures that in the event of a failure, the standby module takes over within 50 milliseconds, preventing disruptions in critical processes. The module’s redundant power supplies and communication paths further enhance system reliability, making it suitable for safety-critical applications.



Hot-Swappable Design: Designed for minimal downtime, the module supports hot swapping, allowing technicians to replace or maintain components without interrupting system operation. This feature is particularly valuable in industries like pharmaceuticals or food processing, where unplanned shutdowns can lead to product loss or regulatory non-compliance.



Scalable and Flexible Integration: As part of the PACSystems RX7i platform, the GE IC698RMX016-ED integrates seamlessly with a wide range of I/O modules, including analog, digital, and specialty modules for motion control or temperature monitoring. Its support for multiple communication protocols enables connectivity with both legacy and modern systems, making it adaptable to evolving industrial needs.



Advanced Diagnostics and Monitoring: The module provides real-time diagnostic information via front-panel LED indicators and software tools, allowing operators to monitor system health, network status, and power supply conditions. Proactive diagnostics reduce mean time to repair (MTTR) by identifying issues before they escalate, ensuring optimal system performance.



Rugged Industrial Construction: Built to withstand harsh environments, the GE IC698RMX016-ED is rated for operation in extreme temperatures and high-vibration settings, such as manufacturing floors or offshore platforms. Its durable design meets industry standards for shock and vibration resistance, ensuring long-term reliability in challenging applications.

GE IC698RMX016-ED

GE IC698RMX016-ED

Application Areas：GE IC698RMX016-ED

The GE IC698RMX016-ED is ideally suited for industries requiring high availability and fault tolerance:



  1. Oil and Gas:
    • Deployed in upstream production facilities, midstream pipelines, and downstream refineries to control pumps, valves, and compressors. The module’s redundancy ensures continuous operation in remote or harsh environments, where maintenance access is limited.
    • Supports safety systems compliant with IEC 61508, enabling its use in emergency shutdown (ESD) and fire and gas (F&G) systems.
  2. Power Generation:
    • Manages steam turbines, generators, and grid synchronization in thermal, hydro, and renewable energy plants. Redundant control ensures stable power output and prevents blackouts during equipment transitions or maintenance.
    • Integrates with supervisory control and data acquisition (SCADA) systems for real-time monitoring and load balancing.
  3. Water and Wastewater Treatment:
    • Controls pumps, filters, and chemical dosing systems in water treatment plants, ensuring uninterrupted supply of clean water. Redundancy is critical in maintaining compliance with environmental regulations and avoiding service disruptions.
    • Supports remote operation and diagnostics, reducing the need for on-site personnel in potentially hazardous environments.
  4. Manufacturing and Process Control:
    • Optimizes production lines in automotive, pharmaceutical, and food processing industries by ensuring continuous operation of robotics, conveyor systems, and quality control equipment.
    • Enables predictive maintenance through real-time data analysis, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

Related Products：GE IC698RMX016-ED

  • GE IC698RMX024-EC: An upgraded version of the GE IC698RMX016-ED with enhanced processing power and memory, suitable for large-scale, data-intensive applications.
  • GE IC698CPE030: A non-redundant CPU module for simpler control systems, often used as a cost-effective alternative in non-critical applications.
  • GE IC698ACC700: A communication module that adds Profibus DP-V1 support to the PACSystems RX7i platform, complementing the GE IC698RMX016-ED in multi-protocol environments.
  • GE IC698ALG742: An analog input module for high-precision temperature and pressure monitoring, frequently paired with the GE IC698RMX016-ED in process control systems.
  • GE IC698MDL750: A discrete output module for controlling solenoids and motors, designed for use in redundant systems requiring reliable switching capabilities.
    GE IC698RMX016-ED

    GE IC698RMX016-ED

Installation and Maintenance：GE IC698RMX016-ED

Pre-installation Preparations:
Before installing the GE IC698RMX016-ED, ensure the following:



  • Verify that the power supply (24 VDC ±20%) is stable and meets the module’s dual-input requirements for redundancy.
  • Install the module in a properly grounded enclosure with adequate ventilation to maintain operating temperature limits.
  • Use GE’s Proficy Machine Edition software to configure the module’s IP address, redundancy settings, and communication protocols before powering up the system.



Maintenance Recommendations:



  • Regularly inspect the module’s LED indicators to monitor power status, network connectivity, and redundancy health. Unusual flashing or error codes should be addressed immediately using the software’s diagnostic tools.
  • Clean the module’s ventilation slots periodically to prevent dust accumulation, which can lead to overheating in high-temperature environments.
  • Perform firmware updates as recommended by GE to access the latest features and security patches, ensuring compatibility with evolving automation standards.
  • For redundant systems, test failover functionality periodically to ensure the primary and secondary modules synchronize correctly and switch roles without data loss.
    GE IC698RMX016-ED

    GE IC698RMX016-ED

Product Warranty：GE IC698RMX016-ED

Our company provides a one-year quality warranty for the GE IC698RMX016-ED, covering hardware defects and non-human-induced failures. During the warranty period, we will promptly replace any defective module to minimize downtime. For discontinued or hard-to-find models like the GE IC698RMX016-ED, our global supply chain network ensures quick access to scarce parts, supporting urgent repair needs. We stand behind the reliability of our products and offer dedicated technical support to assist with installation, configuration, and troubleshooting, ensuring your industrial systems operate at peak performance.



Contact Information:
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com. Our team of experts is available to provide tailored solutions and pricing for your automation needs.
