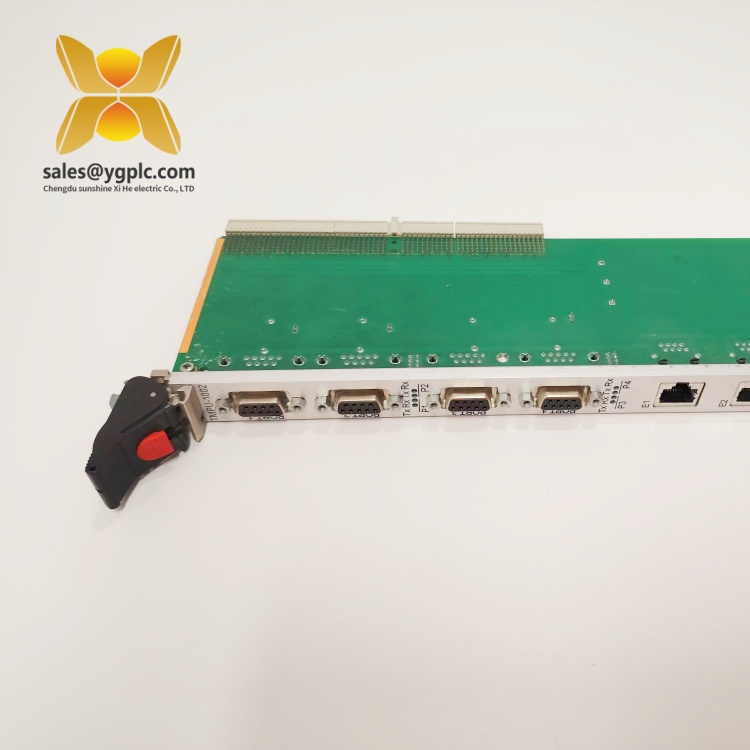

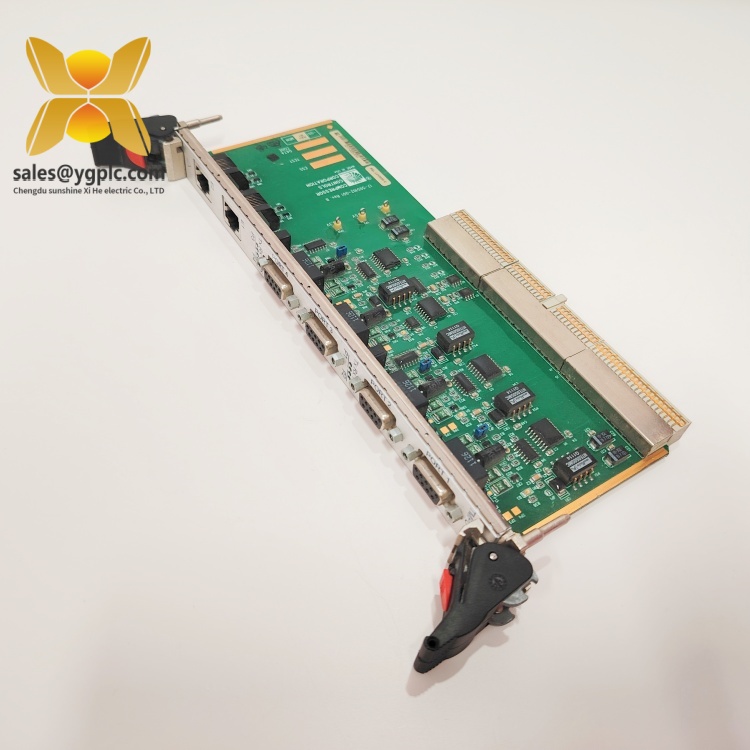

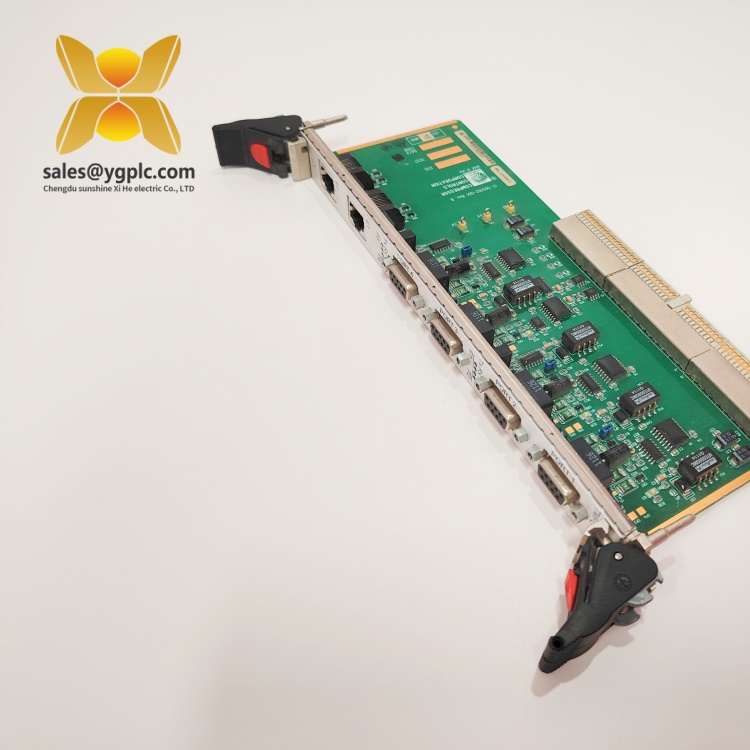

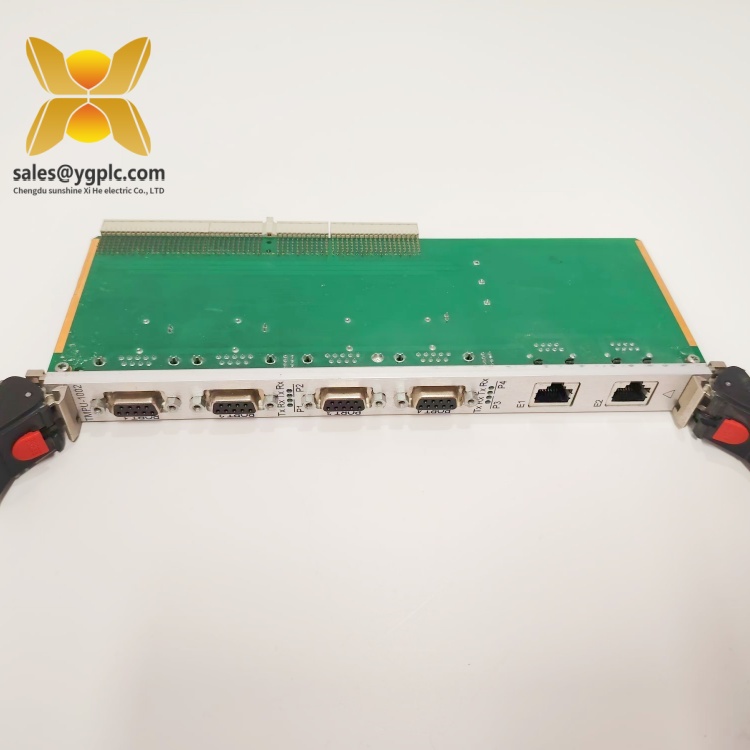

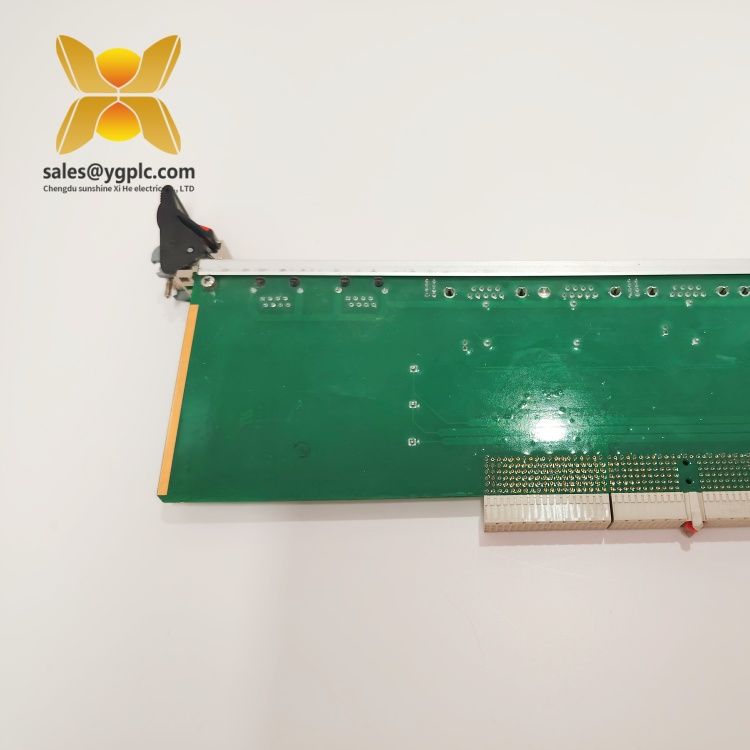

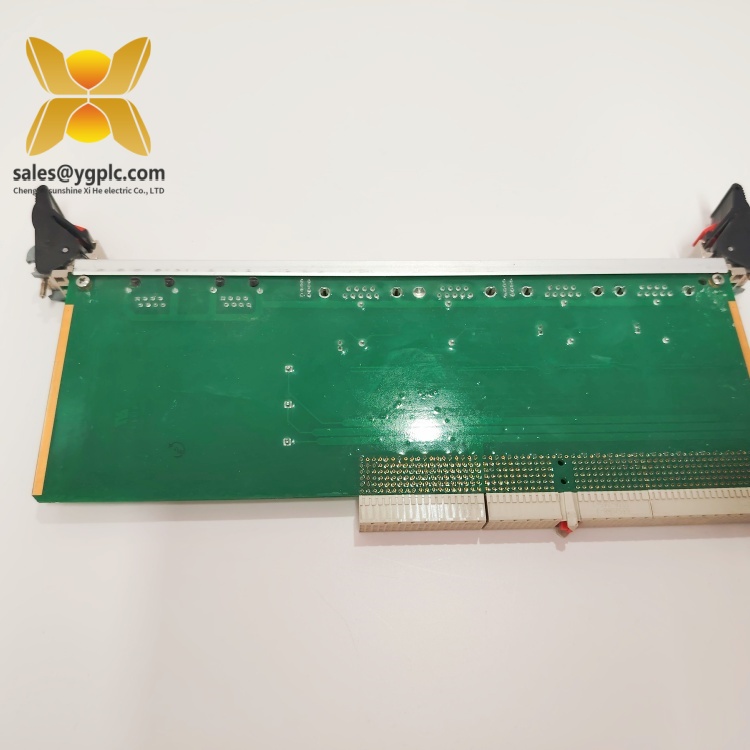

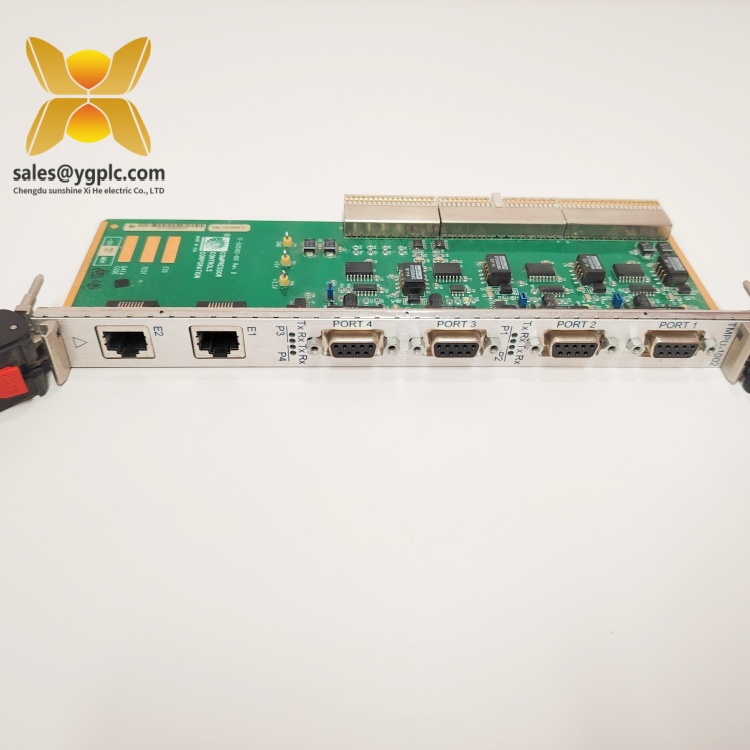

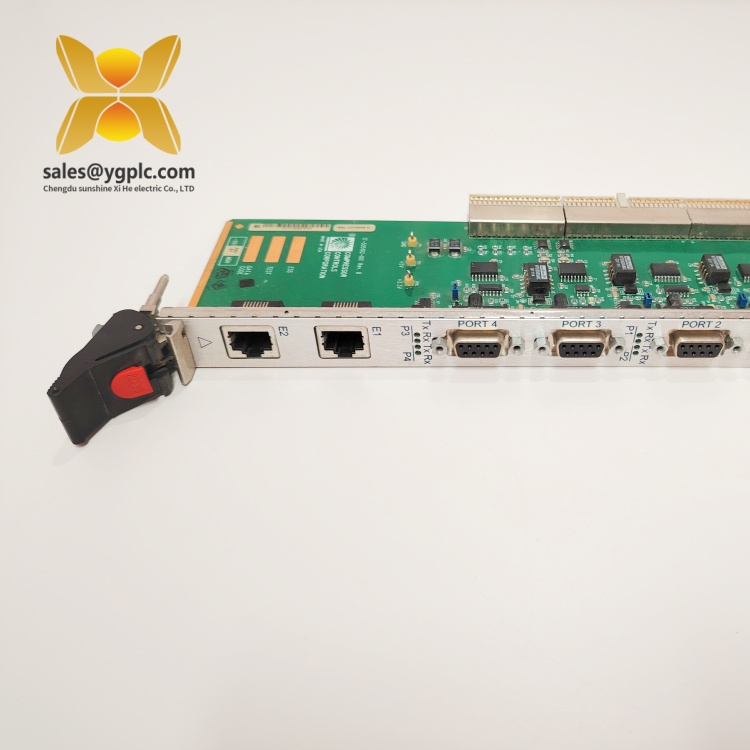

Product Overview：CCC TMPU-1002

The CCC TMPU-1002 CPU Transition Module is a high-performance industrial device designed to bridge communication gaps between legacy and modern CPU systems in industrial automation environments. As part of Compressor Controls Corporation’s (CCC) TMPU series, this module ensures seamless integration of older control systems with newer generations of CPUs, enabling backward compatibility and minimizing downtime during system upgrades or migrations.

Engineered for reliability, the TMPU-1002 supports multiple industrial communication protocols, including Modbus RTU/TCP and Ethernet/IP, allowing it to interface with a wide range of I/O modules, sensors, and actuators. Its 24V DC input voltage and 1.0A current rating ensure stable operation in diverse power supply environments, while the -20°C to +70°C operating temperature range makes it suitable for harsh industrial settings, such as oil refineries and manufacturing plants. The module’s DIN rail mounting and compact design (0.45 kg weight) facilitate easy installation in space-constrained control cabinets, reducing integration complexity.

In automation systems, the TMPU-1002 acts as a critical communication hub, converting signals between legacy and modern CPUs to maintain operational continuity. Its 1500V AC isolation voltage safeguards against electrical noise and voltage spikes, ensuring data integrity even in high-interference environments. This module is widely used in industries such as oil & gas, power generation, and heavy manufacturing, where system reliability and backward compatibility are essential for cost-effective upgrades.

Technical Specifications：CCC TMPU-1002

Parameter Name	Parameter Value
Product Model	TMPU-1002
Manufacturer	Compressor Controls Corporation (CCC)
Product Type	CPU Transition Module
Input Voltage	24V DC
Output Voltage	Adjustable 0–5V DC
Current Rating	1.0A
Communication Protocols	Modbus RTU/TCP, Ethernet/IP
Isolation Voltage	1500V AC
Operating Temperature	-20°C to +70°C
Mounting Type	DIN rail
Weight	0.45 kg
Physical Dimensions	100 mm x 80 mm x 40 mm (W x H x D)
Protection Rating	IP20
Response Time	< 50 ms

CCC TMPU-1002

Legacy System Compatibility: The TMPU-1002 enables seamless integration of older CPU systems with modern control architectures, allowing businesses to upgrade critical infrastructure without replacing all hardware. This reduces migration costs and downtime, making it ideal for industries reliant on legacy equipment.

Multi-Protocol Support: With support for Modbus and Ethernet/IP, the module ensures flexible connectivity with a wide range of industrial devices, including I/O modules, HMIs, and SCADA systems. This versatility simplifies system design and integration across diverse automation platforms.

Rugged Design: Built with industrial-grade components and a IP20-rated enclosure, the TMPU-1002 withstands harsh environmental conditions, including vibration, dust, and temperature fluctuations. Its 1500V AC isolation further protects against electrical interference, ensuring reliable performance in high-risk environments.

Compact and Easy Installation: The module’s DIN rail mounting and lightweight design (0.45 kg) streamline installation in crowded control panels. Its intuitive wiring interface and plug-and-play functionality minimize setup time, reducing operational disruptions.

Predictive Maintenance Capabilities: By monitoring communication health and error rates, the TMPU-1002 provides real-time diagnostics to identify potential failures early. This proactive approach helps prevent unplanned downtime and extends the lifespan of connected equipment.

CCC TMPU-1002

Application Areas：CCC TMPU-1002

The CCC TMPU-1002 CPU Transition Module is widely deployed in industries where system modernization and backward compatibility are critical:

Oil & Gas: Integrates legacy control systems with newer CPUs in offshore platforms and refineries, ensuring uninterrupted operation during equipment upgrades.
Power Generation: Bridges communication gaps between outdated turbine control systems and modern SCADA platforms, enhancing grid stability and energy efficiency.
Manufacturing: Enables seamless data exchange between legacy PLCs and Industry 4.0-ready systems, supporting smart factory initiatives and predictive maintenance strategies.
Water Treatment: Connects older pump and valve controllers to modern IoT-enabled monitoring systems, improving process efficiency and compliance with environmental regulations.
Mining: Facilitates the integration of aging conveyor belt and crusher controls with advanced automation systems, enhancing safety and productivity in mining operations.

Installation and Maintenance：CCC TMPU-1002

Installation Preparation:
Before installing the TMPU-1002, verify the 24V DC power supply and ensure the DIN rail is securely mounted. Clean the rail and inspect the module for physical damage. Align the module with the rail and secure it using the provided clips. Connect the power cables to the terminal block, ensuring proper torque (35A max per terminal). Link the module to the CPU and I/O devices via the Modbus RTU/TCP or Ethernet/IP ports, following CCC’s wiring guidelines.

Maintenance Recommendations:

Routine Inspections: Quarterly checks for loose connections, dust accumulation, or signs of overheating. Clean the module’s surface with a dry cloth to prevent debris buildup.
Firmware Updates: Periodically download the latest firmware from CCC’s official website to access new features and security patches.
Connector Checks: Inspect connectors annually for corrosion or wear. Re-seat connectors if necessary to maintain reliable signal transmission.
Sensor Calibration: If paired with sensors (e.g., accelerometers), calibrate them annually using CCC-approved tools to ensure accurate data input.
Redundancy Testing: For redundant configurations, test failover mechanisms bi-annually to confirm seamless operation in case of primary module failure.
CCC TMPU-1002

Product Warranty：CCC TMPU-1002

We provide a 12-month quality warranty for the CCC TMPU-1002 CPU Transition Module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.

With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to modernize your automation systems with the TMPU-1002 CPU Transition Module.

Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
