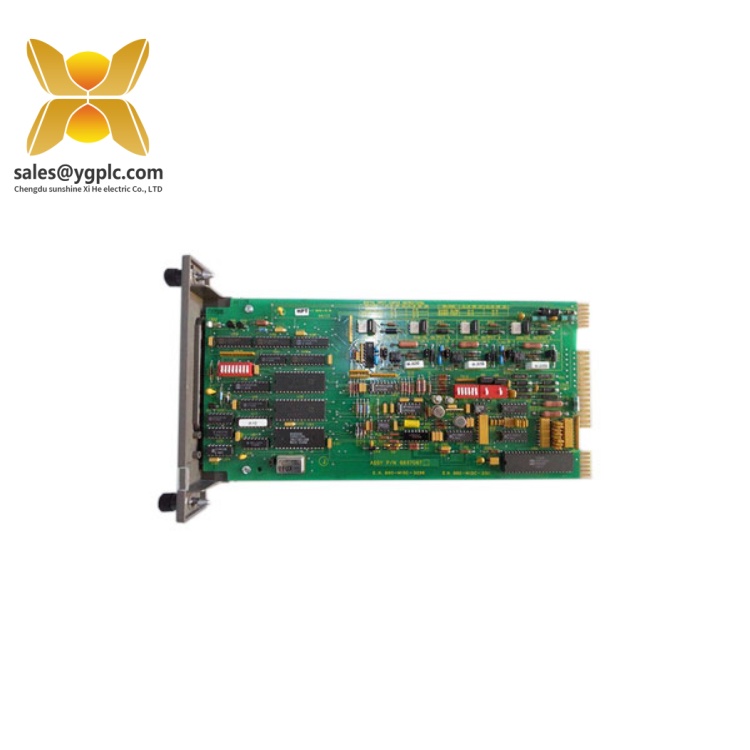

Product Overview: ABB IMHSS03
The ABB IMHSS03 is a high-performance servo drive module engineered for precision motion control in industrial automation systems. As a key component of ABB’s renowned industrial control product lineup, this module integrates advanced motor control algorithms, robust hardware design, and seamless connectivity to deliver reliable and accurate operation across diverse industrial applications. Whether used in CNC machines, robotic arms, or automated production lines, the ABB IMHSS03 ensures smooth motion, fast response, and consistent performance, making it a trusted choice for manufacturers seeking to enhance productivity and operational efficiency.
Technical Specifications — ABB IMHSS03
| Parameter | Specification |
|---|---|
| Nominal Output Current | 3 A (continuous), 6 A (peak for 10 seconds) |
| Input Voltage | 3-phase AC 200–240 V ±10%, 50/60 Hz |
| Control Mode | Position, velocity, torque control; pulse/direction input |
| Encoder Interface | Incremental encoder (TTL), absolute encoder support |
| Communication Protocols | Modbus RTU, CANopen |
| Digital I/O | 4 digital inputs, 2 digital outputs (transistor) |
| Protection Features | Overcurrent, overvoltage, undervoltage, overheating, short circuit |
| Operating Temperature | 0°C to +50°C (ambient, no derating) |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W×H×D) | 85 mm × 160 mm × 140 mm |
| Certifications | CE, UL, RoHS |
