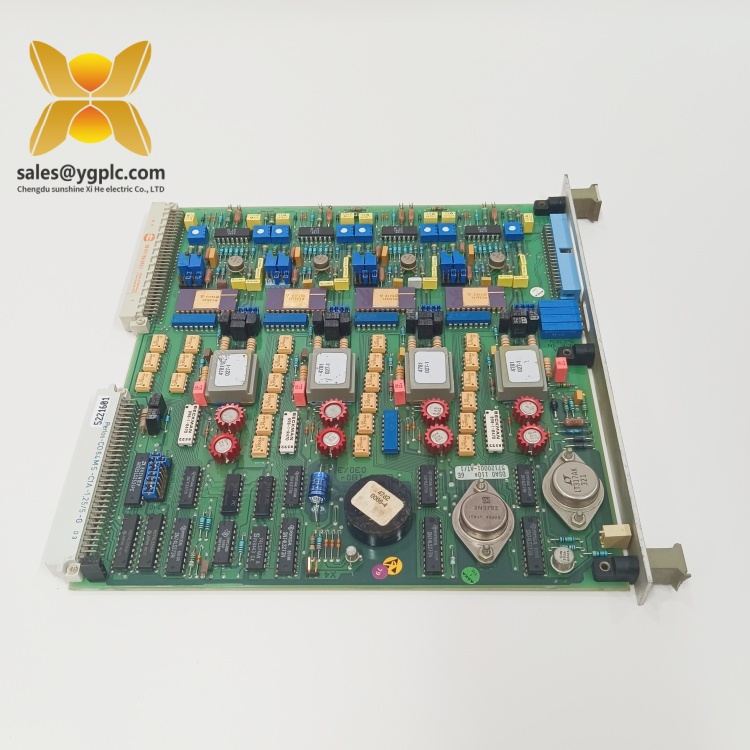

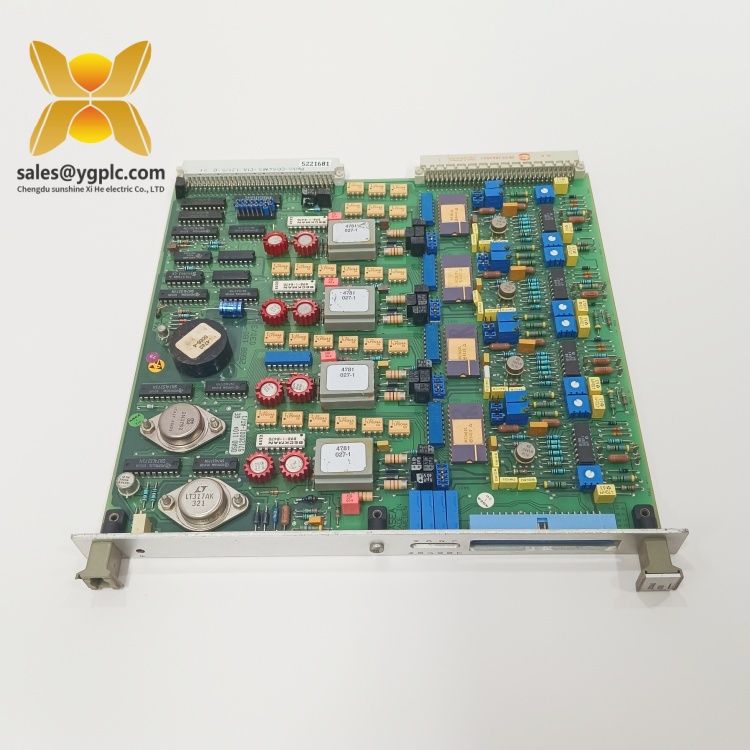

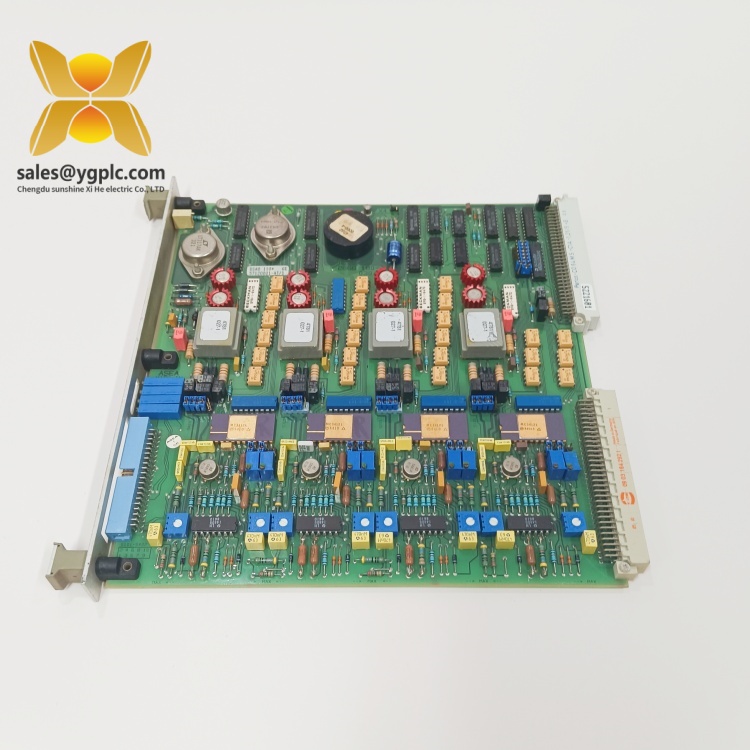

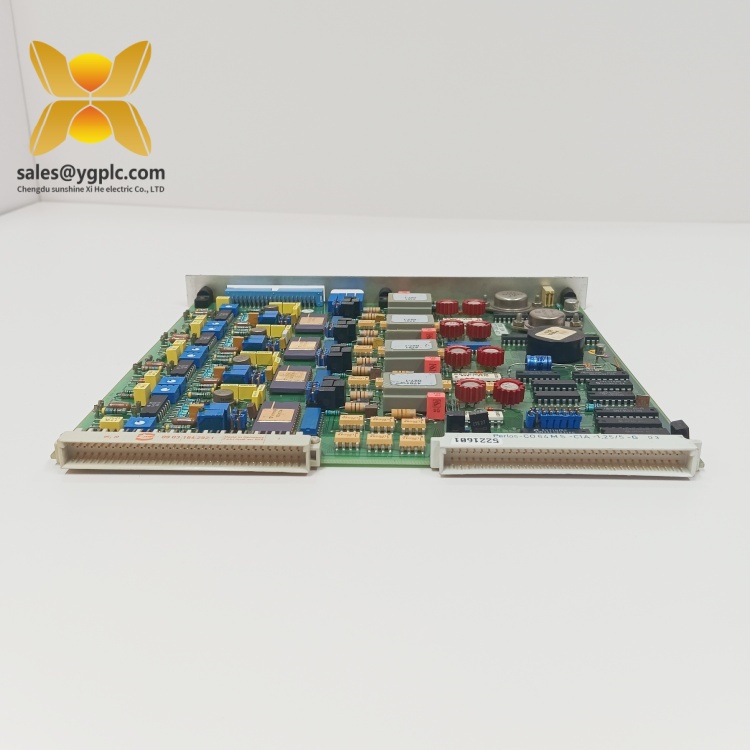

ABB DASO110 57120001-AT1 Digital Output Module
Product Overview ：ABB DASO110 57120001-AT1
The ABB DASO110 57120001-AT1 is a high-performance Digital Output Module designed for industrial automation systems, serving as a critical interface between control systems and field devices. As part of ABB’s AC 800M controller platform within the Industrial IT System 800xA architecture, this module enables precise control of discrete actuators such as valves, contactors, and motors in complex industrial environments. Engineered to deliver reliable signal transmission and robust fault tolerance, the DASO110 57120001-AT1 ensures seamless integration with PLCs, DCSs, and SCADA systems, making it indispensable for process automation in industries like oil & gas, power generation, and manufacturing.
Featuring 16 galvanically isolated output channels, the ABB DASO110 57120001-AT1 supports both AC and DC loads (24–230 V AC/DC), providing flexibility for diverse applications. Each channel includes surge protection and diagnostic feedback, allowing real-time monitoring of output status and quick detection of faults such as open circuits or overloads. The module’s compact design (100 mm × 160 mm × 60 mm) and DIN rail mounting facilitate easy installation in control panels, while its compatibility with ABB’s S800 I/O system ensures seamless interoperability with other modules, reducing system complexity and maintenance costs.
In automation ecosystems, the DASO110 57120001-AT1 acts as a reliable actuator control hub, converting digital commands from higher-level systems into physical actions. Its advanced diagnostics and redundant power supply capability (24 V DC ±10%) enhance system resilience, minimizing unplanned outages in mission-critical processes. Whether deployed in standalone configurations or large-scale distributed systems, this module delivers consistent performance, ensuring operational efficiency and safety across demanding industrial applications.
Technical Specifications ：ABB DASO110 57120001-AT1
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DASO110 57120001-AT1 |
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Output Channels | 16 isolated channels |
| Output Voltage | 24–230 V AC/DC |
| Maximum Current per Channel | 2 A (resistive load) |
| Isolation | Galvanic isolation (2.5 kV RMS) |
| Power Supply | 24 V DC ±10% (redundant) |
| Physical Dimensions | 100 mm (H) × 160 mm (W) × 60 mm (D) |
| Weight | 0.5 kg |
| Operating Temperature | -25°C to +70°C |
| Mounting | DIN rail (35 mm) |
| Certifications | CE, UL, IEC 61131-2 |
ABB DASO110 57120001-AT1
Key Features and Advantages ：ABB DASO110 57120001-AT1
Wide Voltage Compatibility: The DASO110 57120001-AT1 supports a broad output voltage range (24–230 V AC/DC), eliminating the need for multiple module types and simplifying integration with diverse actuators. This versatility reduces hardware costs and streamlines inventory management.
Galvanic Isolation and Surge Protection: Each channel features 2.5 kV RMS galvanic isolation, protecting the control system from voltage spikes and ground loops. Surge protection devices (SPDs) further safeguard against transient overvoltages, ensuring reliable operation in high-noise environments.
Redundant Power Supply: The module’s dual 24 V DC inputs provide redundancy, ensuring continuous operation even if one power source fails. This feature is critical for maintaining process continuity in applications where downtime is costly, such as oil refineries or power plants.
Advanced Diagnostics: Built-in diagnostics monitor output health, power supply status, and thermal conditions. LED indicators and digital feedback (via the S800 I/O bus) enable rapid fault identification, reducing troubleshooting time and minimizing maintenance costs.
Compact and Rugged Design: With a lightweight design (0.5 kg) and IP20-rated enclosure, the DASO110 57120001-AT1 fits into space-constrained control panels while withstanding harsh industrial environments, including vibration (up to 5 g) and humidity (5–95% non-condensing).
Seamless System Integration: As part of ABB’s S800 I/O family, the module integrates seamlessly with ABB’s AC 800M controllers and 800xA software, enabling real-time data exchange and centralized configuration. Its support for open protocols like Profibus DP and Ethernet/IP also facilitates integration with third-party systems.
ABB DASO110 57120001-AT1
Application Areas ：ABB DASO110 57120001-AT1
The ABB DASO110 57120001-AT1 is widely applied in industries requiring precise control of discrete devices:
- Oil & Gas: Controls motor starters, solenoid valves, and emergency shutdown (ESD) devices in offshore platforms, pipelines, and refineries, ensuring compliance with safety standards and operational efficiency.
- Power Generation: Manages circuit breakers, damper actuators, and auxiliary systems in thermal, hydro, and wind power plants, optimizing energy production and grid stability.
- Manufacturing: Drives robotic arms, conveyor belts, and packaging equipment in automotive, food & beverage, and pharmaceutical facilities, enabling high-precision automation and batch processing.
- Water/Wastewater: Controls pumps, valves, and filtration systems in treatment plants, ensuring consistent water quality and regulatory compliance.
Specific applications include:
- Motor Control: Directly driving three-phase motors via contactors, with built-in fault detection to prevent overload damage.
- Valve Automation: Providing on/off control for pneumatic or electric valves in chemical processing, ensuring accurate flow regulation and leak prevention.
- Emergency Systems: Triggering safety interlocks and shutdown sequences in response to critical alarms, such as fire detection or overpressure events.
By delivering reliable and deterministic control, the DASO110 57120001-AT1 enhances process repeatability, reduces manual intervention, and minimizes the risk of human error in industrial operations.
Related Products ：ABB DASO110 57120001-AT1
- DASO160 57120001-BT1: A 32-channel variant with higher density, suitable for large-scale automation systems requiring extensive discrete control.
- DASO115 57120001-CT1: A compact 8-channel module designed for small-scale applications or retrofitting older systems.
- DI810 57160001-AA1: A digital input module that pairs with the DASO110 57120001-AT1 for closed-loop control, providing feedback from sensors and switches.
- SD822Z: A redundant 24 V DC power supply for S800 I/O modules, ensuring stable power delivery to the DASO110 57120001-AT1.
- CI854K01: A communication interface module that enables Profibus DP connectivity for the DASO110 57120001-AT1 in distributed control systems.
- TB840A: A termination unit that simplifies field wiring by providing a centralized connection point for output signals, reducing installation time.
- PM866K01: A high-performance controller module from ABB’s AC 800M series, which coordinates with the DASO110 57120001-AT1 for complex automation tasks.
- TU840V: A voltage supervision module that monitors power quality for the DASO110 57120001-AT1, enhancing system reliability in unstable power environments.
ABB DASO110 57120001-AT1
Installation and Maintenance ：ABB DASO110 57120001-AT1
Installation Preparation:
Before installing the ABB DASO110 57120001-AT1, ensure the DIN rail is securely mounted and grounded. Verify compatibility with the target actuator’s voltage and current requirements, using shielded cables to minimize electromagnetic interference. Connect the module’s redundant power supplies and terminate field wires in the TB840A termination unit (sold separately). Use ABB’s Control Builder M software to configure output parameters, such as fail-safe states and response time delays.
Before installing the ABB DASO110 57120001-AT1, ensure the DIN rail is securely mounted and grounded. Verify compatibility with the target actuator’s voltage and current requirements, using shielded cables to minimize electromagnetic interference. Connect the module’s redundant power supplies and terminate field wires in the TB840A termination unit (sold separately). Use ABB’s Control Builder M software to configure output parameters, such as fail-safe states and response time delays.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, burnt components, or overheating signs. Clean the module’s vents with compressed air to prevent dust accumulation that could affect heat dissipation.
- Functional Testing: Perform quarterly tests of each output channel using a load simulator to ensure proper operation. Document test results to identify trends in component performance.
- Firmware Updates: Regularly update the module’s firmware via ABB’s 800xA Asset Manager to access new features and security patches, ensuring compatibility with evolving system requirements.
- Spare Parts Management: Store spare DASO110 57120001-AT1 modules in anti-static packaging at room temperature (20–25°C) with low humidity, rotating inventory to ensure shelf-life viability.
ABB DASO110 57120001-AT1
Product Warranty ：ABB DASO110 57120001-AT1
Our company provides a 12-month quality warranty for the ABB DASO110 57120001-AT1, covering hardware defects under normal use. In the event of unexpected failures, we offer prompt replacement services to minimize downtime. For legacy or discontinued models, our global supply chain network specializes in sourcing rare industrial control parts, ensuring quick turnaround for urgent needs. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, delivering tailored solutions to keep your automation systems operating at peak performance.
