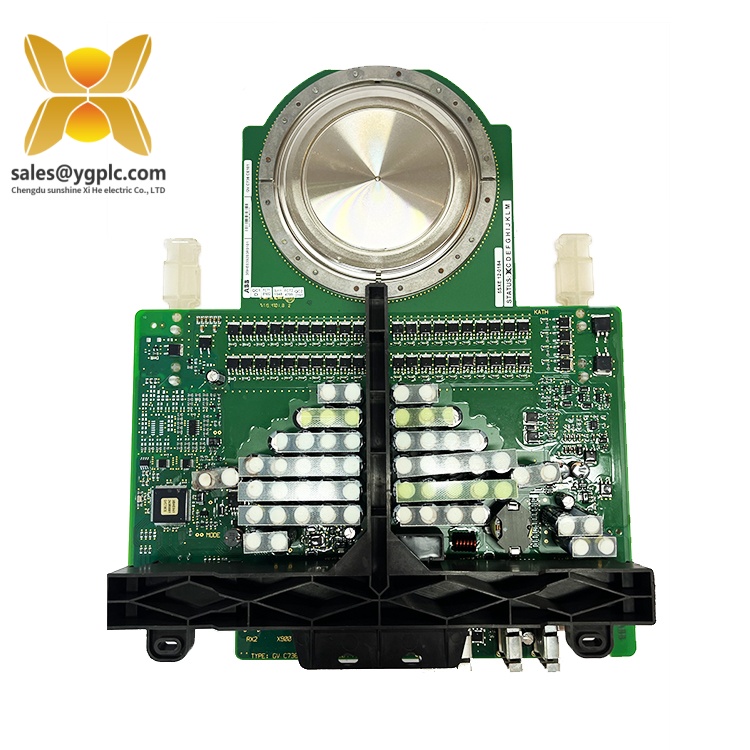

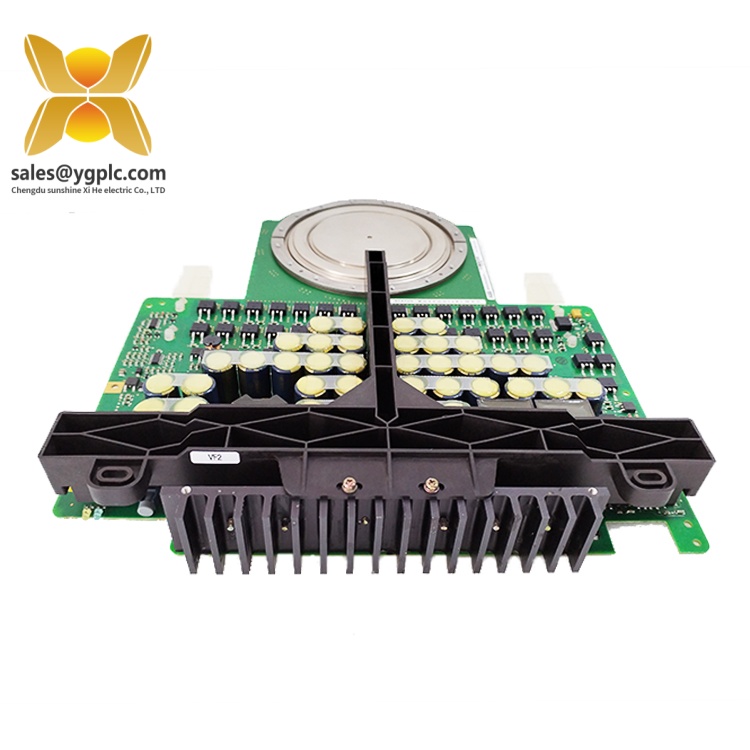

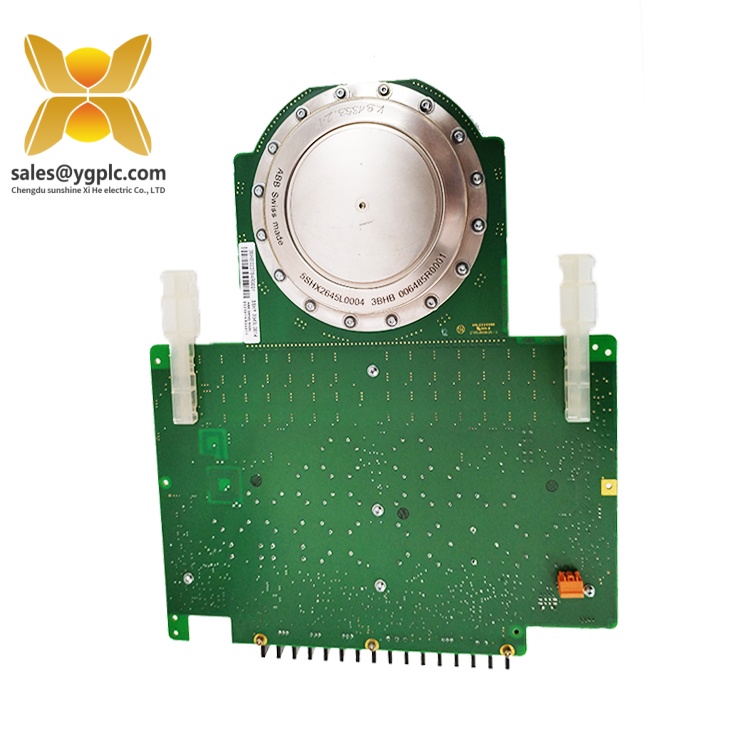

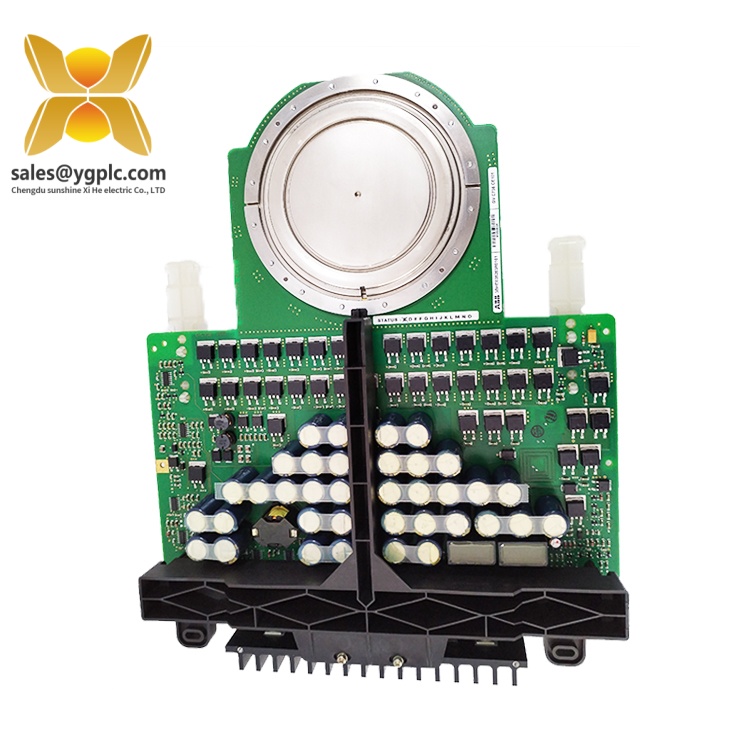

ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101 High-Voltage IGCT Power Module
Product Overview ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
The ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101 is a cutting-edge High-Voltage Integrated Gate-Commutated Thyristor (IGCT) Power Module designed for high-power industrial applications requiring precise control and efficient energy conversion. As a cornerstone of ABB’s Power Semiconductors portfolio, this module combines the advantages of thyristors and transistors to deliver superior performance in voltage source converters (VSCs), motor drives, and renewable energy systems. The 5SHY 3545L0014 series is engineered to handle extreme power demands, making it indispensable for applications such as high-voltage direct current (HVDC) transmission, large-scale variable frequency drives (VFDs), and grid-scale energy storage.
Featuring a robust design with integrated gate drive circuitry, the ABB GVC736CE101 enables fast switching speeds and low conduction losses, optimizing energy efficiency in heavy-duty systems. Its modular architecture supports easy integration into existing power electronics frameworks, while advanced thermal management ensures reliable operation under sustained high loads. The module’s compatibility with ABB’s DriveIT and Grid Automation platforms enhances system interoperability, allowing seamless coordination with control systems for real-time monitoring and fault mitigation. By combining high voltage blocking capability (up to 4.5 kV) with high current handling (up to 3.5 kA), the 5SHY 3545L0014 series sets a benchmark for power density and reliability in industrial automation.
In the context of modern automation systems, the ABB 5SHY 3545L0014 3BHB013085R0001 serves as a critical enabler for sustainable energy solutions. It facilitates the integration of renewable energy sources into the grid by enabling efficient power conversion in wind turbine inverters and solar power plants. Additionally, its use in HVDC systems reduces transmission losses, supporting the development of smart grids. With its ability to withstand harsh environmental conditions and deliver consistent performance over long operational lifespans, this module is a strategic investment for industries aiming to enhance productivity while minimizing downtime and maintenance costs.
Technical Specifications ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101 |
| Manufacturer | ABB |
| Product Type | High-Voltage IGCT Power Module |
| Voltage Rating | 4.5 kV RMS |
| Continuous Current (I_T(AV)) | 3.5 kA |
| Peak Surge Current | 80 kA (10 ms) |
| Switching Frequency | Up to 2 kHz |
| Thermal Resistance (Rth(j-c)) | 0.015 K/W |
| Physical Dimensions | 300 mm (H) × 200 mm (W) × 80 mm (D) |
| Weight | 5.2 kg |
| Operating Temperature | -40°C to +125°C (junction) |
| Mounting | Press-fit or bolt-down mechanical interface |
| Certifications | IEC 60747-5-5, UL 1558, RoHS |
5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
Key Features and Advantages ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
High Power Density and Efficiency: The ABB 5SHY 3545L0014 module delivers exceptional power handling capabilities, with a voltage rating of 4.5 kV and continuous current capacity of 3.5 kA. Its low switching losses and high commutation efficiency reduce energy waste, making it ideal for applications where operational costs and sustainability are critical.
Advanced Thermal Management: Integrated ceramic substrate and copper baseplate design ensure optimal heat dissipation, allowing the module to operate reliably at high junction temperatures (+125°C). This feature extends component lifespan and minimizes the need for external cooling systems, reducing overall system complexity.
Rugged Mechanical Design: The module’s robust construction withstands mechanical stress and vibration, making it suitable for harsh industrial environments such as offshore platforms, mining facilities, and heavy machinery applications. Its hermetically sealed housing protects against moisture, dust, and corrosive elements.
Integrated Gate Drive Compatibility: The GVC736CE101 is designed to work seamlessly with ABB’s UNI183x and UNI186x gate drive units, ensuring precise control over switching dynamics. This integration simplifies system design and enhances reliability by minimizing signal delay and interference.
Modular Scalability: The module’s standardized form factor enables parallel operation in multi-level converter topologies, allowing engineers to scale power systems up to megawatt levels. This flexibility supports incremental capacity upgrades and future-proofs industrial installations.
Comprehensive Diagnostic Capabilities: Built-in voltage and current sensing features enable real-time monitoring of module health. Early fault detection mechanisms, such as overcurrent and overvoltage protection, help prevent cascading failures and reduce downtime.
Application Areas ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
The ABB 5SHY 3545L0014 3BHE039203R0101 finds extensive use in industries requiring high-power conversion and control:
- Power Transmission & Distribution: As a key component in HVDC converters, this module facilitates efficient long-distance power transmission, supporting grid interconnections and renewable energy integration. It is also used in static var compensators (SVCs) to stabilize voltage and improve power quality.
- Industrial Drives: In large-scale manufacturing, the module powers VFDs for motors in pumps, compressors, and rolling mills. Its high switching speed and low distortion ensure smooth motor operation and energy savings of up to 15% compared to traditional thyristor-based systems.
- Renewable Energy: Deployed in wind turbine converters and solar inverters, the 5SHY 3545L0014 enables efficient conversion of variable renewable energy into grid-compatible power. Its reliability in harsh outdoor environments makes it a preferred choice for onshore and offshore wind farms.
- Marine & Offshore: Used in ship propulsion systems and offshore platform power management, the module’s rugged design meets the strict requirements of marine applications, including high humidity, salt fog, and mechanical vibration.
- Metal & Mining: In electric arc furnaces and mine hoist drives, the module’s high surge current capability and fast fault response times enhance process efficiency and safety in heavy industrial settings.
5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
Related Products ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
- 5SHY 3545L0003 3BHB013084R0001: A lower current variant (2.5 kA) of the 5SHY 3545L0014 series, suitable for medium-power applications requiring similar voltage ratings.
- 5SHY 4545L0001 3BHE039204R0101: A higher voltage model (6.5 kV) designed for ultra-high-power systems, such as HVDC grids and large-scale energy storage projects.
- UNI1835 Gate Drive Unit: Specifically engineered to drive the GVC736CE101, this unit provides isolated power and control signals, ensuring precise switching and fault protection.
- 5SYX 17N1501 Capacitor Module: A 配套 energy storage module that works in tandem with the 5SHY 3545L0014 to stabilize voltage in converter systems.
- PSS601 Protection Relay: Monitors the module’s electrical parameters and triggers protective actions in case of overloads or short circuits, enhancing system safety.
- 3BHE039007R0101 Cooling Kit: A dedicated thermal management solution designed to optimize heat dissipation for the 3BHB013085R0001 module in high-load applications.
- 5SHY 2545L0001 3BHE039202R0101: A compact variant with reduced dimensions, suitable for space-constrained installations such as mobile power converters.
- DriveIT Power Converter Platform: A scalable system architecture that integrates the 5SHY 3545L0014 with control algorithms and monitoring software for end-to-end power management.
Installation and Maintenance ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
Installation Preparation:
Before installing the ABB 5SHY 3545L0014 3BHE039203R0101, ensure the mechanical interface is clean and free of debris. Verify that the mounting surface provides adequate thermal conductivity (e.g., using thermal grease or pads). Connect the gate drive unit (e.g., UNI1835) with shielded cables to minimize electromagnetic interference, and secure all electrical connections to prevent loose contacts. Ensure the system’s cooling infrastructure (e.g., heat sinks, fans) is properly configured to maintain the module’s operating temperature within specified limits.
Before installing the ABB 5SHY 3545L0014 3BHE039203R0101, ensure the mechanical interface is clean and free of debris. Verify that the mounting surface provides adequate thermal conductivity (e.g., using thermal grease or pads). Connect the gate drive unit (e.g., UNI1835) with shielded cables to minimize electromagnetic interference, and secure all electrical connections to prevent loose contacts. Ensure the system’s cooling infrastructure (e.g., heat sinks, fans) is properly configured to maintain the module’s operating temperature within specified limits.
Maintenance Recommendations:
- Routine Inspections: Conduct quarterly visual inspections to check for signs of physical damage, such as cracks in the housing or corrosion on terminals. Use a digital multimeter to verify gate drive signals and ensure proper voltage levels.
- Thermal Performance Checks: Annually measure the module’s thermal resistance using ABB’s diagnostic tools. Clean heat sinks and replace thermal interface materials if degradation is detected.
- Firmware Updates: Periodically update the gate drive unit’s firmware to incorporate the latest control algorithms and fault mitigation strategies, following ABB’s official guidelines.
- Spare Parts Management: Store spare modules in a controlled environment (temperature: 10–30°C, humidity: ≤60%) to preserve their operational integrity. Maintain a documented inventory of spare parts for quick replacement during emergencies.
5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
Product Warranty ：ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101
Our company provides a 12-month quality warranty for the ABB 5SHY 3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101, covering hardware defects arising from material or manufacturing flaws. During the warranty period, we will replace any defective module at no additional cost, provided the issue is not due to misuse, unauthorized modification, or improper installation. For out-of-production models or urgent requirements, our global supply chain network leverages strategic partnerships to source rare components efficiently, ensuring minimal downtime for critical systems. Our technical support team is available 24/7 to assist with troubleshooting, installation guidance, and performance optimization, reflecting our commitment to delivering reliable solutions that sustain industrial operations worldwide.
For product inquiries, visit our official website or contact our sales team via phone/email for personalized support.
