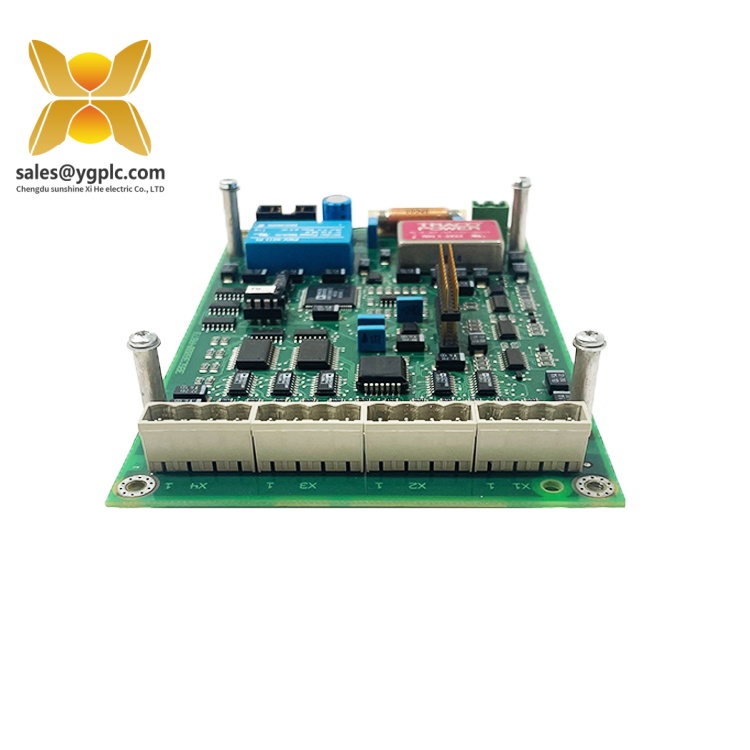

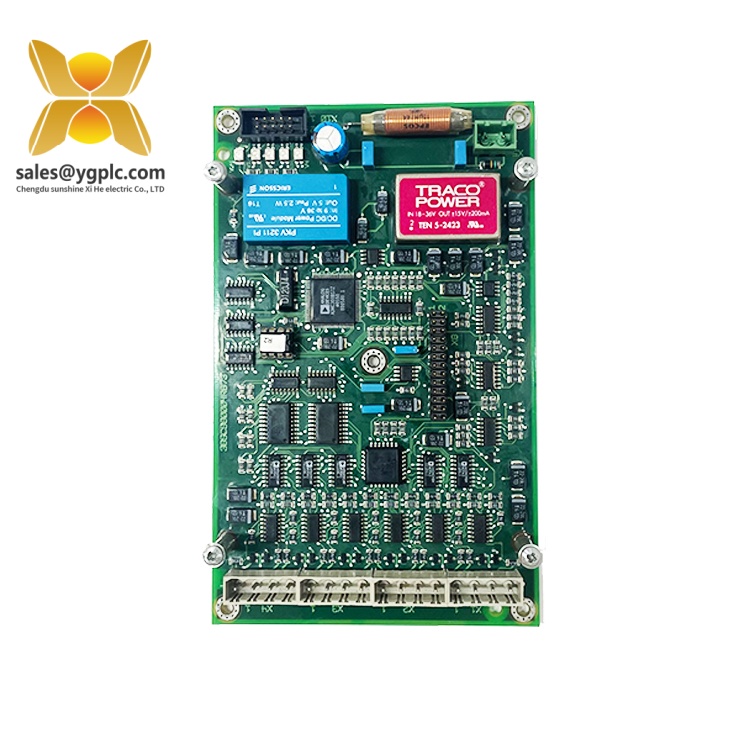

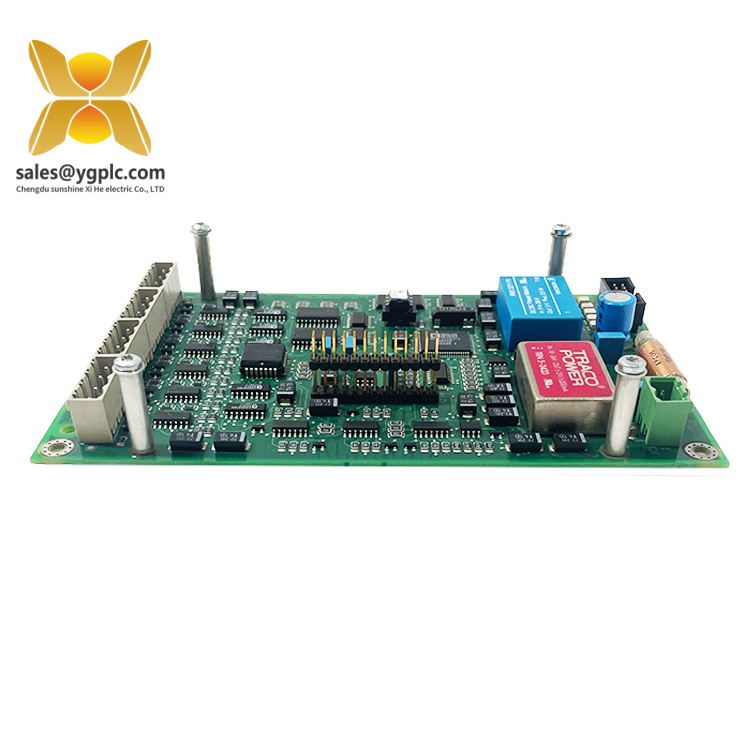

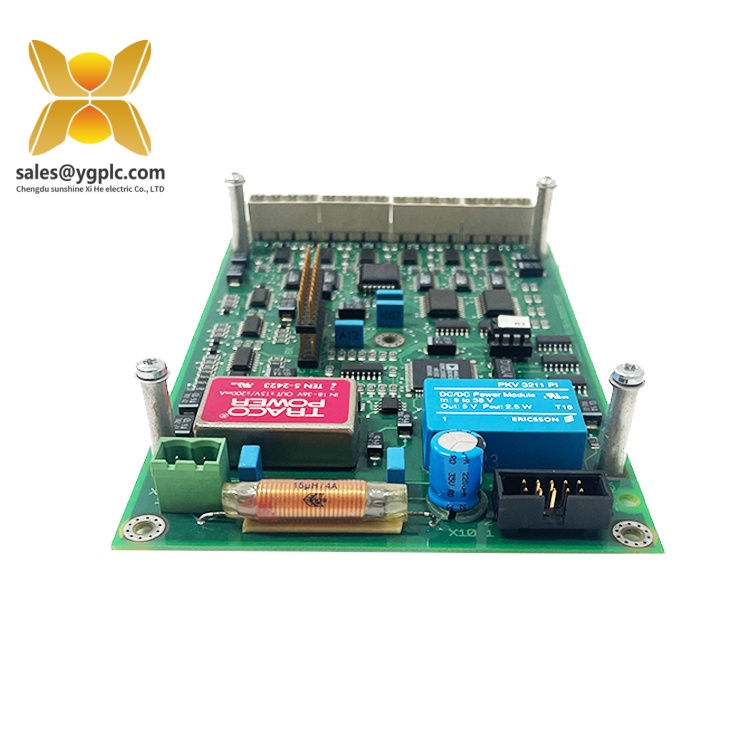

ABB 3ASC25H214 DATX130 Industrial Communication Module
Product Overview ：ABB 3ASC25H214 DATX130
The ABB 3ASC25H214 DATX130 industrial communication module is a high-performance component designed for seamless integration within ABB’s AC 800M distributed control system (DCS). As part of the Advant Controller 800M series, this module serves as a critical link between field devices, control systems, and supervisory networks, enabling real-time data exchange and centralized management in complex industrial environments.
Engineered to meet the demands of modern automation, the 3ASC25H214 DATX130 supports multiple communication protocols, including Modbus TCP/IP and PROFINET, ensuring compatibility with a wide range of sensors, actuators, and third-party systems. Its dual-port Ethernet interface provides redundant network connectivity, minimizing downtime in mission-critical applications. The module’s compact design (150 mm x 100 mm x 50 mm, 0.6 kg) and rugged construction make it suitable for harsh industrial settings, with an operating temperature range of -40°C to +70°C and IP20 protection against dust and light moisture.
In automation systems, the 3ASC25H214 DATX130 acts as a centralized data hub, facilitating bidirectional communication between the AC 800M controller and field devices. It enables real-time monitoring of process variables, remote configuration of I/O modules, and seamless integration with SCADA systems, enhancing operational efficiency and enabling predictive maintenance strategies. By reducing complexity in multi-vendor environments, this module simplifies system architecture and supports scalable, future-proof automation solutions.
Technical Specifications ：ABB 3ASC25H214 DATX130
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3ASC25H214 DATX130 |
| Manufacturer | ABB |
| Product Type | Industrial Communication Module |
| Communication Protocols | Modbus TCP/IP, PROFINET, EtherNet/IP |
| Interface Type | 2 x RJ45 (10/100 Mbps), 1 x RS485 |
| Input Voltage | 24V DC ±10% |
| Power Consumption | 5W |
| Physical Dimensions | 150 mm x 100 mm x 50 mm |
| Weight | 0.6 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | DIN rail (TS35/7.5 or TS35/15) |
| Country of Origin | Sweden |
3ASC25H214 DATX130
Key Features and Advantages ：ABB 3ASC25H214 DATX130
Multi-Protocol Flexibility: The 3ASC25H214 DATX130 supports simultaneous operation of Modbus TCP/IP and PROFINET, allowing integration of legacy devices and modern industrial networks. This versatility eliminates the need for dedicated gateways, reducing hardware costs and simplifying system design.
Redundant Network Design: With dual independent Ethernet ports, the module ensures continuous communication through automatic failover between primary and secondary network paths. This feature is critical for applications such as power plants and chemical refineries, where uninterrupted data flow is essential for safety and productivity.
Compact and Rugged Construction: Designed for space-constrained control cabinets, the module’s sleek form factor does not compromise durability. Its industrial-grade components and conformal coating protect against vibration, electromagnetic interference (EMI), and temperature fluctuations, ensuring reliable performance in harsh environments.
Plug-and-Play Integration: The module is fully compatible with ABB’s Control Builder M software, enabling intuitive configuration of communication parameters, data mapping, and diagnostic functions. Its hot-swappable design allows for easy replacement without powering down the system, minimizing maintenance downtime.
Advanced Diagnostics: Built-in LED indicators provide real-time status updates for power, network connectivity, and data transmission. The module also supports SNMP (Simple Network Management Protocol) for remote monitoring, enabling proactive identification of issues such as cable faults or protocol errors.
3ASC25H214 DATX130
Application Areas ：ABB 3ASC25H214 DATX130
The ABB 3ASC25H214 DATX130 industrial communication module is ideally suited for industries requiring robust, high-speed data integration:
- Power Generation: Integrates with turbine control systems and grid management platforms to monitor real-time power output, fuel consumption, and equipment health. For example, in a natural gas power plant, the module enables seamless communication between gas turbines and the SCADA system, optimizing load balancing and reducing emissions.
- Oil & Gas: Facilitates data exchange between offshore platforms, pipeline networks, and onshore control centers. It supports real-time monitoring of pressure, flow rates, and safety systems in refineries, ensuring compliance with environmental regulations and operational safety standards.
- Manufacturing: Enhances smart factory operations by connecting PLCs, robotics, and conveyor systems to a centralized DCS. In automotive manufacturing, the 3ASC25H214 DATX130 enables real-time tracking of production metrics, such as cycle times and defect rates, to optimize workflow efficiency.
- Water and Wastewater Treatment: Monitors pump stations, filtration systems, and chemical dosing equipment in water treatment plants. The module’s reliability ensures continuous operation of critical systems, even in wet or corrosive environments.
- Mining and Metals: Supports communication between heavy machinery, such as crushers and concentrators, and plant-wide control systems. It enables predictive maintenance of equipment by transmitting vibration and temperature data to analytics platforms, reducing unplanned downtime.
3ASC25H214 DATX130
Related Products ：ABB 3ASC25H214 DATX130
- ABB 3BSE018190R1 (AC 800M CPU Module): The core controller of the AC 800M system, sets with the 3ASC25H214 DATX130 to process data and execute control algorithms.
- ABB 3HAC025200-001 (DI810 Digital Input Module): An I/O module that interfaces with the 3ASC25H214 DATX130 to collect binary signals from field devices, such as limit switches and sensors.
- ABB 3BSE042319R1 (AI810 Analog Input Module): Captures continuous process variables (e.g., temperature, pressure) and transmits them to the communication module for further processing.
- ABB 3ASC25H215 DATX140: An upgraded version with additional protocol support (e.g., OPC UA) and higher data throughput, suitable for advanced industrial IoT applications.
- ABB 3HAC12913-1 (TB821 Terminal Block): A simplifies wiring between the 3ASC25H214 DATX130 and field devices, ensuring secure and reliable connections.
- ABB 3BSE008610R1 (PS501 Power Supply): Provides redundant power to the AC 800M system, ensuring stable operation of the 3ASC25H214 DATX130 and other modules.
- ABB 3BSE012345R1 (CM572 Communication Module): A legacy model compatible with older ABB systems, serving as an alternative for users transitioning to the 3ASC25H214 DATX130.
Installation and Maintenance ：ABB 3ASC25H214 DATX130
Installation Preparation:
Before installing the 3ASC25H214 DATX130, ensure the control cabinet is properly grounded and ventilated to meet the module’s environmental requirements. Verify the power supply (24V DC) and network infrastructure (Ethernet switches, routers) are compatible with the module’s specifications. Mount the module on a DIN rail using the provided clips, ensuring adequate spacing for heat dissipation. Connect the power cable to the terminal block and establish Ethernet connections using shielded twisted-pair cables to minimize EMI.
Before installing the 3ASC25H214 DATX130, ensure the control cabinet is properly grounded and ventilated to meet the module’s environmental requirements. Verify the power supply (24V DC) and network infrastructure (Ethernet switches, routers) are compatible with the module’s specifications. Mount the module on a DIN rail using the provided clips, ensuring adequate spacing for heat dissipation. Connect the power cable to the terminal block and establish Ethernet connections using shielded twisted-pair cables to minimize EMI.
Maintenance Recommendations:
- Routine Inspections: Monthly checks should include visual inspection of LED indicators to confirm normal operation, verification of cable connections for tightness, and cleaning of dust from the module’s vents using compressed air.
- Firmware Updates: Periodically update the module’s firmware via ABB’s Control Builder M software to access new features and security patches. Back up existing configurations before initiating updates to prevent data loss.
- Redundancy Testing: Quarterly tests of the dual Ethernet ports should be conducted to ensure failover functionality. Simulate network outages to verify seamless switching between primary and secondary paths.
- Environmental Monitoring: Regularly monitor the control cabinet’s temperature and humidity levels to ensure they remain within the module’s specified range (-40°C to +70°C, 5–95% non-condensing). Address any deviations promptly to avoid component degradation.
3ASC25H214 DATX130
Product Warranty ：ABB 3ASC25H214 DATX130
We provide a 12-month quality warranty for the ABB 3ASC25H214 DATX130 industrial communication module, covering hardware defects arising from non-human factors. During the warranty period, we will replace any faulty module at no cost. For discontinued models or urgent orders, our global supply chain network ensures rapid delivery of Scarce spare parts，leveraging partnerships with manufacturers and distributors to meet critical timelines. Our team of technical experts is available to provide pre-sales consultations, installation guidance, and post-sales support, ensuring seamless integration and optimal performance of the module in your automation system.
With 17 years of expertise in industrial control distribution, we pride ourselves on delivering reliable, high-quality components and exceptional customer service. Contact us today to explore how the 3ASC25H214 DATX130 can enhance the connectivity and efficiency of your industrial operations.
Note: All product names, logos, and trademarks are the property of their respective owners. This document is for informational purposes only and does not constitute a guarantee of specifications. Always refer to the manufacturer’s official documentation for detailed technical requirements and safety guidelines.
