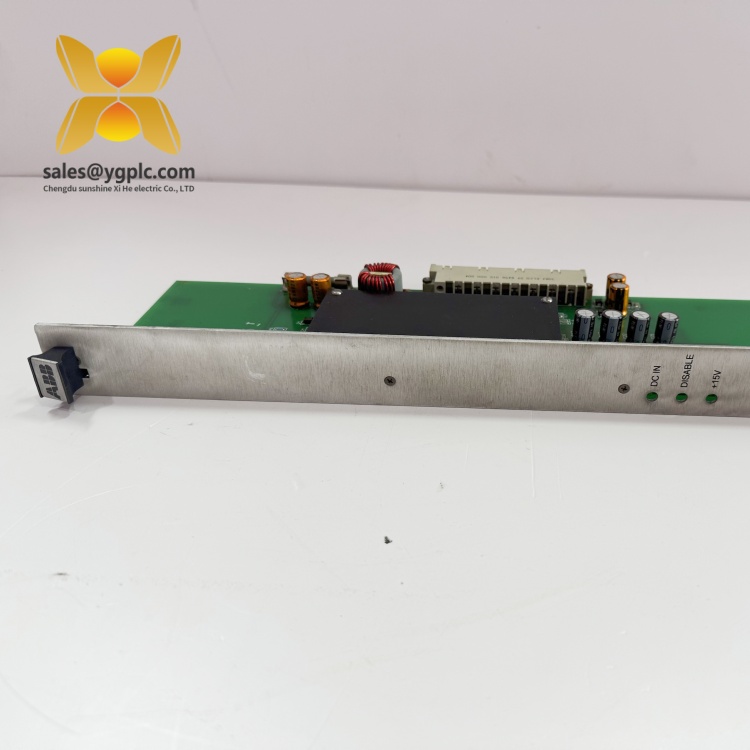

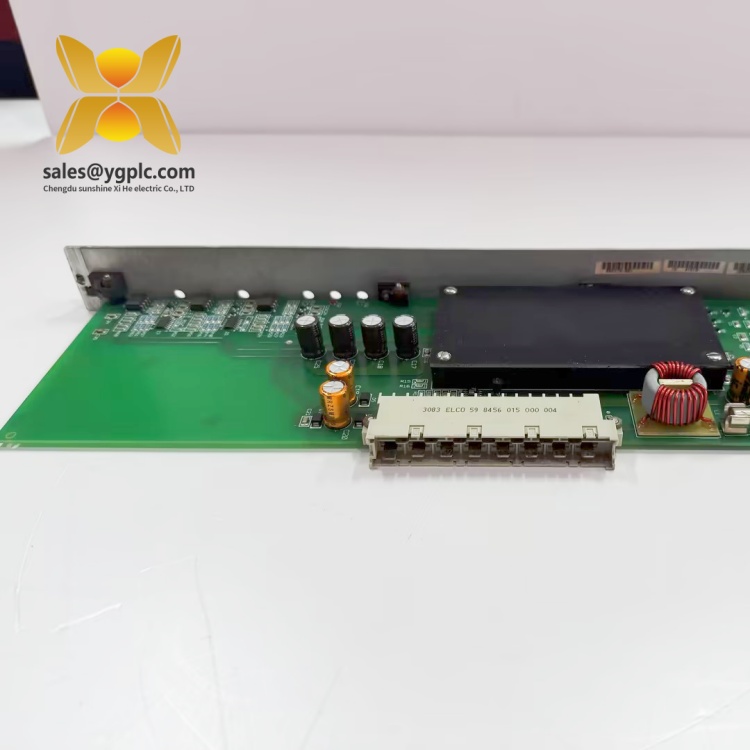

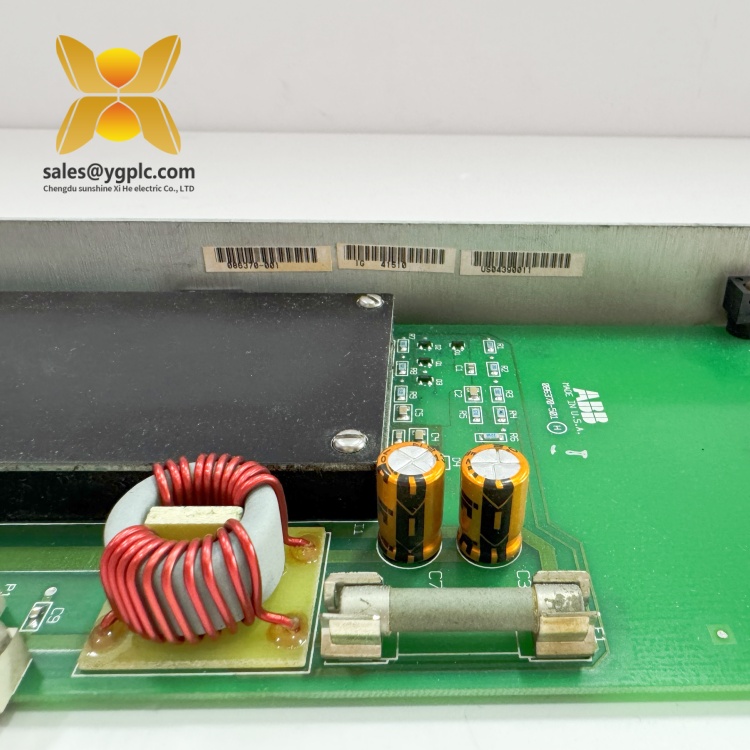

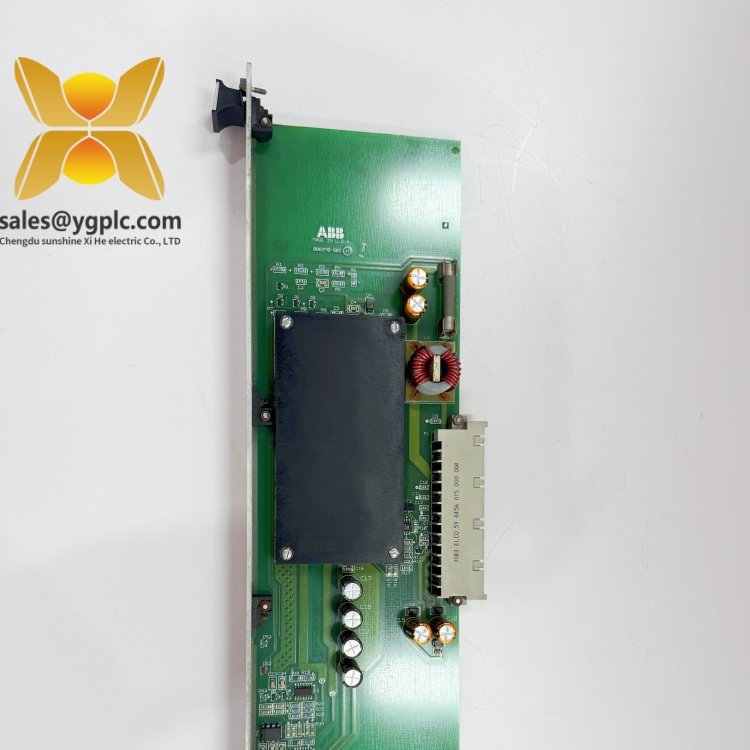

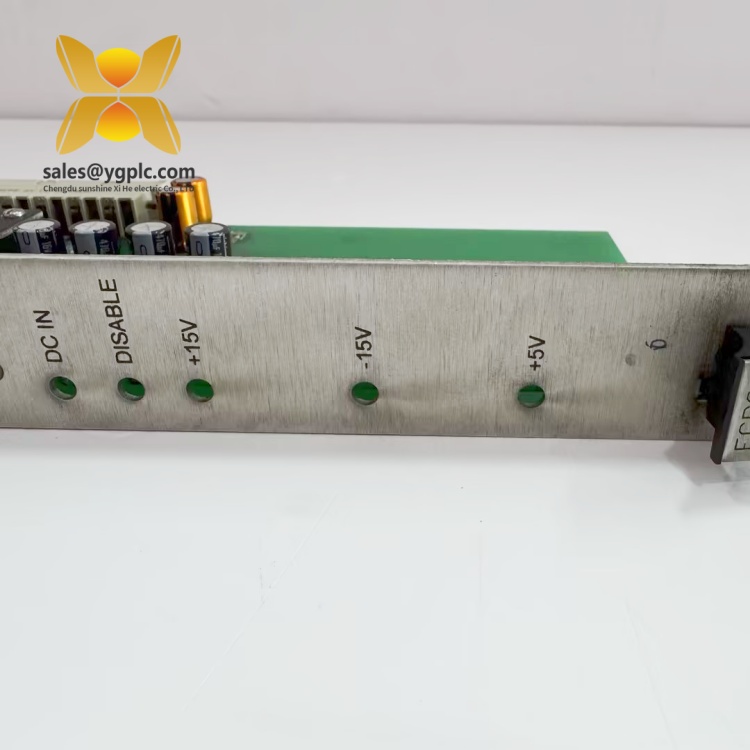

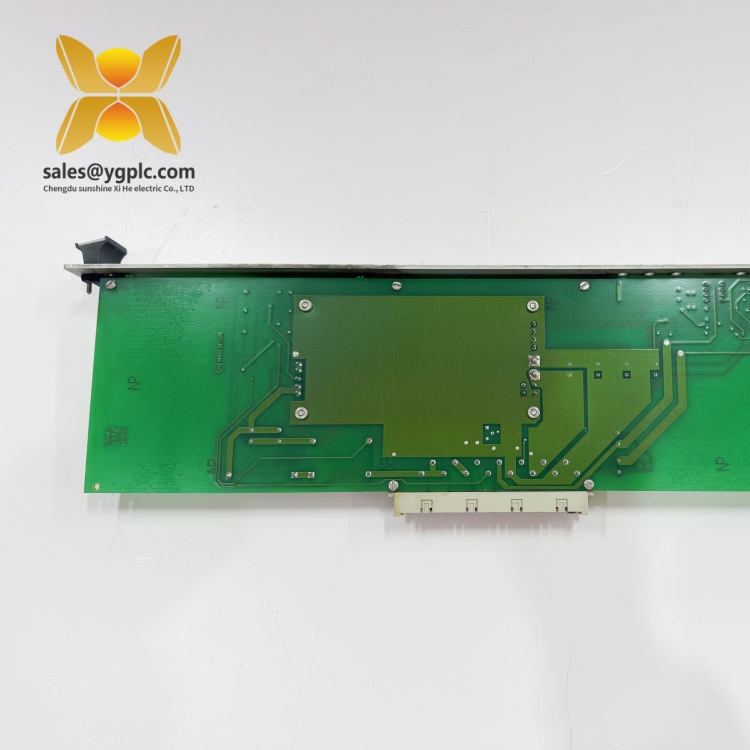

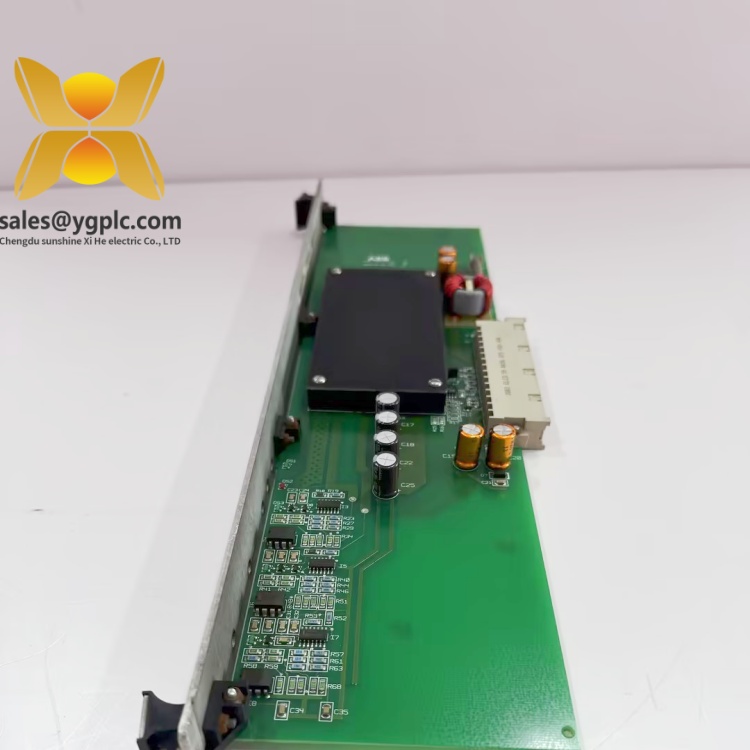

Product Overview ：ABB 086370-001
The ABB 086370-001 Analog Output Module is a high-performance industrial automation component designed for precise control of analog signals in distributed control systems (DCS) and programmable logic controller (PLC) applications. As part of ABB’s S800 I/O series, this module delivers reliable signal conditioning and output control for industrial processes requiring accurate voltage or current regulation.
Engineered for flexibility, the 086370-001 supports 4–20 mA current outputs and 0–10 VDC voltage outputs, making it suitable for a wide range of actuators, valves, and motors. Its Profibus DP communication interface enables seamless integration with ABB’s AC800M controller and other third-party systems, ensuring compatibility with modern industrial automation architectures. The module’s IP20-rated enclosure protects against dust and debris, while its compact design (100mm x 150mm x 40mm) allows for easy installation in space-constrained control cabinets.
Within automation systems, the 086370-001 acts as a critical link between the control system and field devices, converting digital commands into analog signals for precise process control. Its diagnostic capabilities include channel-level fault detection, ensuring rapid identification of signal anomalies and minimizing downtime. This module is widely used in industries such as manufacturing, energy production, and wastewater management, where reliable analog control is essential for maintaining operational efficiency.
Technical Specifications ：ABB 086370-001
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 086370-001 |
| Manufacturer | ABB |
| Product Type | Analog Output Module |
| Output Signal | 4–20 mA (current) / 0–10 VDC (voltage) |
| Resolution | 16-bit |
| Communication Protocol | Profibus DP |
| Power Supply | 24V DC ±10% |
| Physical Dimensions | 100mm x 150mm x 40mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Input Channels | N/A |
| Output Channels | 4 channels |
ABB 086370-001
Key Features and Advantages ：ABB 086370-001
Multi-Signal Compatibility: The 086370-001 supports both current and voltage outputs, allowing it to interface with a diverse range of industrial devices, including proportional valves, motor drives, and temperature controllers. This versatility reduces the need for multiple modules, simplifying system design and lowering installation costs.
High Precision: With a 16-bit resolution, the module ensures accurate signal reproduction, minimizing errors in critical processes such as chemical dosing, pressure regulation, and flow control. Its linearity error of <0.1% guarantees consistent performance across the entire output range.
Reliable Communication: The Profibus DP interface provides fast and deterministic data exchange, enabling real-time control and diagnostics. This feature is particularly valuable in applications where timely adjustments to process parameters are essential, such as in power generation and oil refining.
Diagnostic Capabilities: Built-in self-diagnostics monitor each output channel for faults, including short circuits, open circuits, and overvoltage conditions. Faults are reported via LED indicators and digital signals, facilitating quick troubleshooting and reducing maintenance downtime.
Space-Saving Design: The module’s compact size and DIN rail mounting allow for efficient use of cabinet space, making it ideal for retrofitting existing systems or integrating into new installations with limited room.
ABB 086370-001
Application Areas ：ABB 086370-001
The ABB 086370-001 Analog Output Module is widely deployed in industries requiring precise analog control and reliable signal conditioning:
- Manufacturing: Controls conveyor belt speed, robotic arm positioning, and hydraulic systems in automotive assembly lines and food processing plants. Its high resolution ensures smooth and accurate movement of machinery.
- Energy Production: Manages steam turbine governors, boiler feedwater valves, and generator excitation systems in power plants. The module’s compatibility with Profibus DP enables seamless integration with ABB’s System 800xA, a leading DCS platform for energy management.
- Oil & Gas: Regulates flow rates in pipeline networks, controls compressor inlet guide vanes, and manages pressure relief valves in offshore platforms and refineries. Its robust design withstands harsh environmental conditions, including temperature extremes and corrosive atmospheres.
- Water Treatment: Adjusts chemical dosing pumps, controls sludge dewatering equipment, and manages wastewater recirculation systems in municipal treatment facilities. The module’s diagnostic features help maintain compliance with environmental standards by ensuring consistent process control.
- Mining: Optimizes crusher settings, controls slurry pump speeds, and manages ventilation systems in underground and surface mining operations. Its reliability contributes to continuous production and worker safety.
Related Products ：ABB 086370-001
- ABB AI810 Analog Input Module: Works with the 086370-001 to create a complete analog control loop, providing simultaneous signal acquisition and output control for complex processes.
- **ABB AC800M Controller: A high-performance controller that interfaces with the 086370-001 via Profibus DP, enabling advanced process automation and integration with ABB’s System 800xA.
- ABB PM866AK01 Process Module: Expands system capabilities by providing additional computational power and communication options for distributed control systems.
- ABB TB801 Terminal Block: A sets with terminal block that simplifies wiring and ensures secure connections for the 086370-001, enhancing system reliability.
- ABB CI858K01 Communication Interface Module: Enables integration of the 086370-001 with Ethernet-based control systems, expanding connectivity options for modern industrial networks.
- ABB DSQC652 I/O Module: A compact module with mixed analog and digital channels, suitable for applications requiring a combination of input and output signals alongside the 086370-001.
- **ABB S800 I/O Bus Adapter: Connects the 086370-001 to ABB’s S800 I/O system, allowing for flexible expansion of I/O capabilities in distributed control environments.
ABB 086370-001
Installation and Maintenance ：ABB 086370-001
Installation Preparation:
Before installing the 086370-001, verify the power supply meets the 24V DC ±10% requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the DIN rail and secure it using the provided clips. Connect the Profibus DP cable to the module’s DB-9 connector, following ABB’s wiring guidelines. Finally, configure the module using ABB’s Automation Builder software, ensuring compatibility with the control system’s communication parameters.
Before installing the 086370-001, verify the power supply meets the 24V DC ±10% requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the DIN rail and secure it using the provided clips. Connect the Profibus DP cable to the module’s DB-9 connector, following ABB’s wiring guidelines. Finally, configure the module using ABB’s Automation Builder software, ensuring compatibility with the control system’s communication parameters.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks include verifying LED status indicators, inspecting connectors for corrosion, and cleaning the module’s surface to prevent dust accumulation.
- Signal Calibration: Annually calibrate the module using ABB’s S800 I/O diagnostic tools to ensure accurate signal output. This involves measuring the output voltage or current against a reference standard and adjusting offsets as needed.
- Firmware Updates: Periodically update the module’s firmware using ABB’s official software to access new features and security patches.
- Redundancy Testing: For mission-critical applications, semi-annually test the module’s redundancy configuration by simulating a fault and verifying that the redundant module assumes control without interruption.
Product Warranty ：ABB 086370-001
We provide a 12-month quality warranty for the ABB 086370-001 Analog Output Module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your analog control system with the 086370-001 Analog Output Module.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
