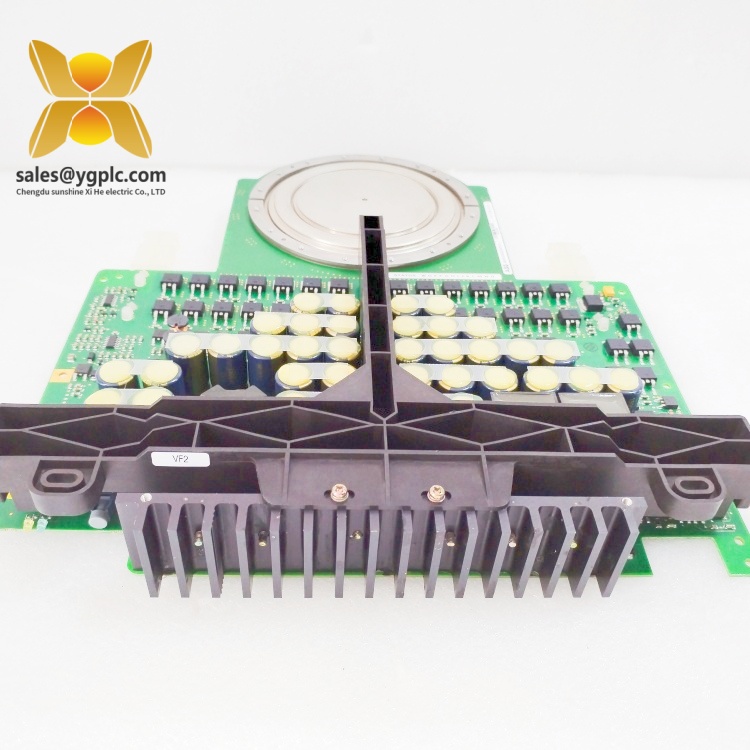

ABB 5SHY3545L0014 3BHE023784R0001 Product Specification
Product Overview
The ABB 5SHY3545L0014 3BHE023784R0001 is a high-performance IGBT (Insulated-Gate Bipolar Transistor) module designed for ABB’s industrial drive systems and power converters. It serves as a core power switching component, converting electrical energy between AC and DC with high efficiency, making it essential for precise motor control and energy conversion in industrial settings.
The ABB 5SHY3545L0014 3BHE023784R0001 handles high voltage and current loads, enabling it to work with ABB’s ACS800 and ACS880 series drives—common in heavy-duty applications like large motor drives and renewable energy converters. It integrates advanced semiconductor technology to minimize energy loss during switching, which boosts overall system efficiency.
Built to withstand tough industrial conditions, the ABB 5SHY3545L0014 3BHE023784R0001 operates in temperatures from -40°C to +125°C (junction temperature) and resists humidity, dust, and vibration. Its compact design includes a heat-dissipating base plate for thermal management, ensuring stable performance under continuous load. Whether in steel mills, wind turbines, or water pumps, the ABB 5SHY3545L0014 3BHE023784R0001 delivers reliable power switching to keep industrial systems running smoothly.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 5SHY3545L0014 3BHE023784R0001 |
| Manufacturer | ABB |
| Product Type | IGBT Power Module |
| Voltage Rating | 1200 VDC (collector-emitter) |
| Current Rating | 450 A (continuous), 900 A (peak) |
| Physical Dimensions | 140 mm (L) × 90 mm (W) × 30 mm (H) [5.51″ × 3.54″ × 1.18″] |
| Weight | 0.8 kg (1.76 lb) |
| Operating Temperature | -40°C to +125°C (junction); -25°C to +85°C (ambient) |
| Humidity | 5–95% non-condensing |
| Mounting Type | Screw-mount to heat sink |
| Protection Features | Overcurrent, short-circuit, overtemperature protection |
| Certifications | CE, UL, IEC 60747-12 |

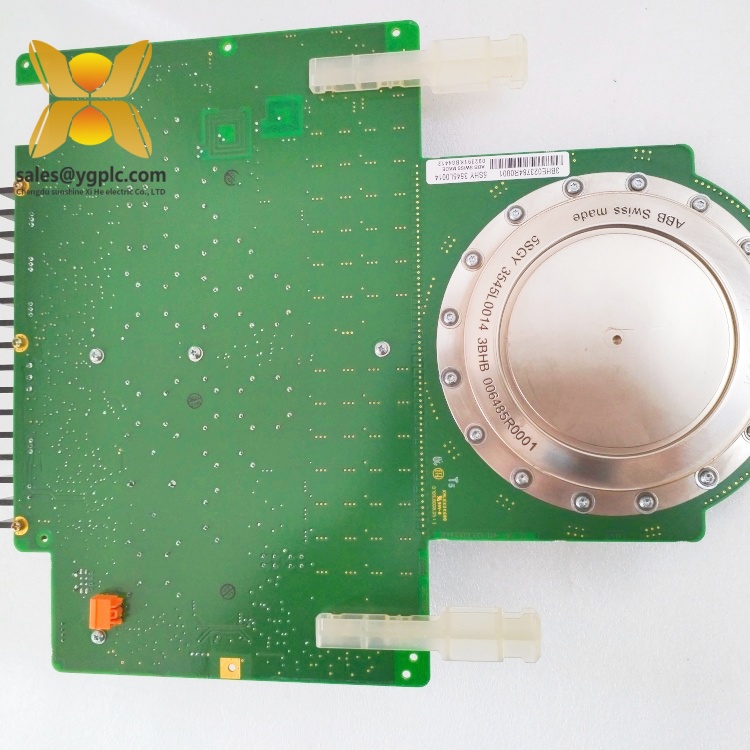

5SHY3545L0014 3BHE023784R0001
Main Features and Advantages
High power density: The ABB 5SHY3545L0014 3BHE023784R0001 handles 1200 V and 450 A continuously, making it suitable for large motor drives in industries like mining and manufacturing. Its ability to manage 900 A peak current allows it to handle sudden load spikes, such as when a conveyor starts under full load.
Efficient energy conversion: Using advanced IGBT technology, the ABB 5SHY3545L0014 3BHE023784R0001 minimizes switching losses. This reduces heat generation and energy waste, lowering operational costs. For example, in a steel mill, it can cut energy use by up to 10% compared to older thyristor-based modules.
Robust protection: The module includes built-in safeguards. It shuts down quickly during short circuits or overcurrents, preventing damage to the drive system. Overtemperature protection triggers if the heat sink gets too hot, ensuring the module doesn’t fail in high-heat environments like foundries.
Easy integration: Designed for ABB’s ACS800 and ACS880 drives, the ABB 5SHY3545L0014 3BHE023784R0001 fits standard drive cabinets. It mounts directly to a heat sink for cooling, with pre-drilled holes for quick installation. This reduces setup time and ensures a secure fit.
Durable design: The ABB 5SHY3545L0014 3BHE023784R0001 works in extreme temperatures and humidity. Its encapsulation resists dust, moisture, and chemical exposure, making it reliable in outdoor settings like wind farms or coastal power plants.
Related Products
- ABB ACS880-01-525A-3: A 315 kW drive that uses the ABB 5SHY3545L0014 3BHE023784R0001 for power conversion in heavy machinery.
- ABB 3BHB003511R0101: A heat sink fan unit that cools the ABB 5SHY3545L0014 3BHE023784R0001, preventing overheating during operation.
- ABB RINT-5511C: A drive control board that monitors the ABB 5SHY3545L0014 3BHE023784R0001’s performance, triggering alarms for faults.
- ABB 5SHY3555L0010: A higher-current (550 A) IGBT module, serving as an upgrade option for larger drives than the ABB 5SHY3545L0014 3BHE023784R0001.
- ABB PPD539A102 3BHE039770R0102: A power distribution module that supplies stable voltage to the ABB 5SHY3545L0014 3BHE023784R0001 in drive systems.

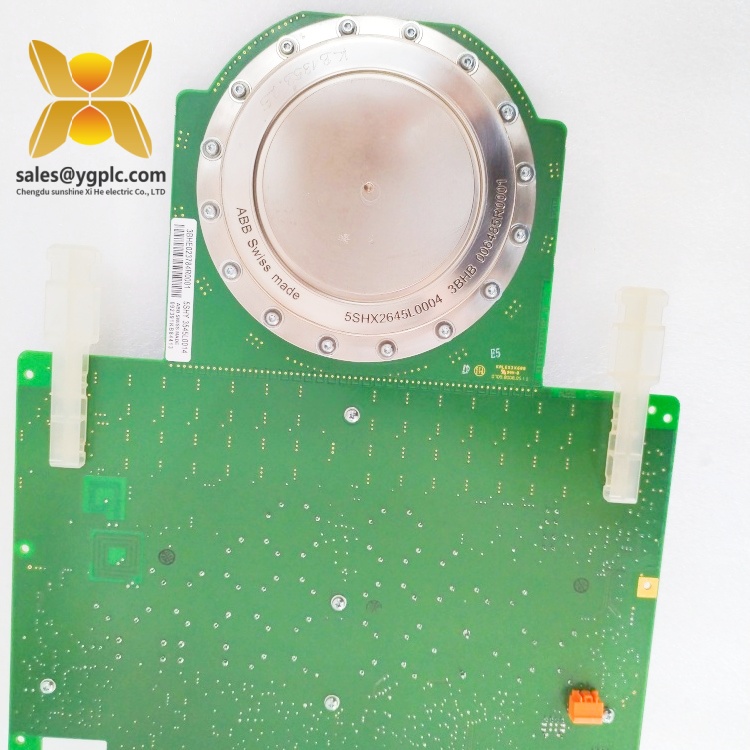

5SHY3545L0014 3BHE023784R0001
Installation and Maintenance
Pre-installation preparations: Before installing ABB 5SHY3545L0014 3BHE023784R0001, power off the drive system. Check that the heat sink is clean and flat—mounting on a warped surface can block heat transfer. Apply thermal grease to the module’s base plate to improve cooling. Align the module with the heat sink’s mounting holes and secure with screws (torque: 8 N·m). Connect power cables to the terminal lugs, ensuring tight connections to avoid arcing.
Maintenance suggestions: Inspect ABB 5SHY3545L0014 3BHE023784R0001 monthly. Check for loose cables or signs of overheating (discoloration). Clean dust from the heat sink with compressed air to maintain cooling. Measure junction temperature quarterly using a thermal imager—if it exceeds 125°C, check the fan or replace thermal grease. If the module fails to switch (e.g., drive shows “IGBT fault”), replace it to prevent further system damage.
Application Fields
In manufacturing: The ABB 5SHY3545L0014 3BHE023784R0001 powers ACS880 drives controlling extruders in plastic plants. It adjusts motor speed precisely, ensuring consistent product thickness and reducing material waste.
In renewable energy: Used in wind turbine converters, it converts variable-frequency AC from the turbine into grid-compatible AC. Its high efficiency maximizes energy output, even in fluctuating wind conditions.
In mining: Installed in crusher drive systems, it handles high currents to start and run large motors. Its rugged design withstands dust and vibration, ensuring continuous operation in remote mines.
In water treatment: Integrated into pump drives, the module regulates motor speed to match water demand. This optimizes energy use, lowering costs for pumping stations supplying cities or industrial facilities.

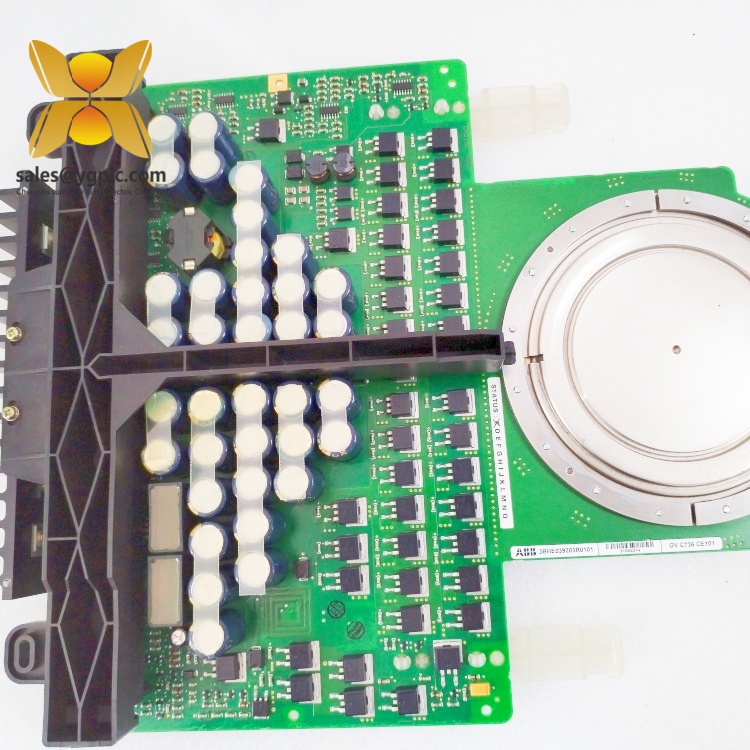

5SHY3545L0014 3BHE023784R0001
Product Guarantee
Our company offers a one-year quality warranty service for ABB 5SHY3545L0014 3BHE023784R0001, covering hardware malfunctions not caused by human factors. During the warranty period, if ABB 5SHY3545L0014 3BHE023784R0001 shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
Our company is a leading enterprise in the industrial control industry, established in 2007, has been 17 years. The company type is import and export trade distribution company, mainly selling major brands of industrial control parts, there are many unpopular discontinued models, with a large stock. Our company has the advantage of supply channels, a large number of spot, to meet the needs of customers anxious to find spare parts.
