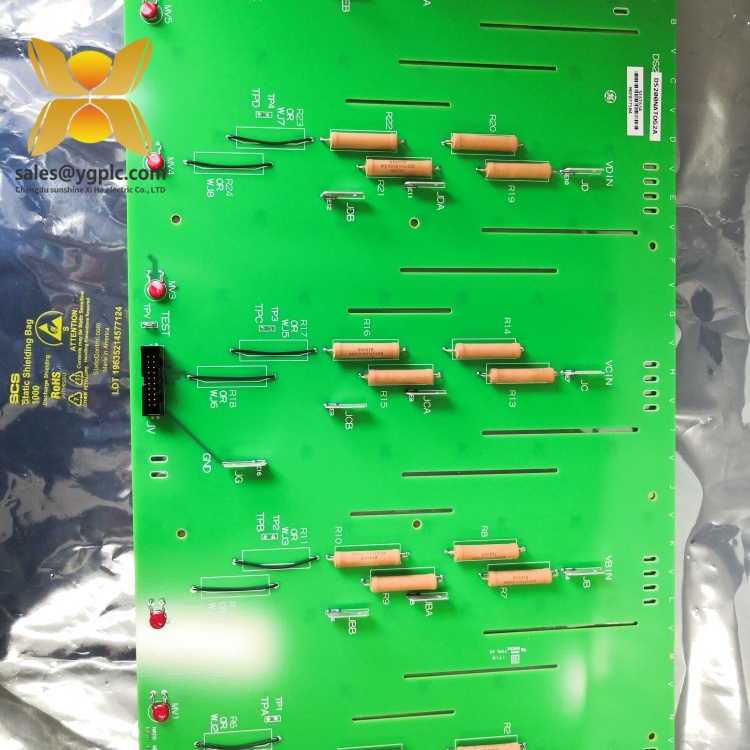

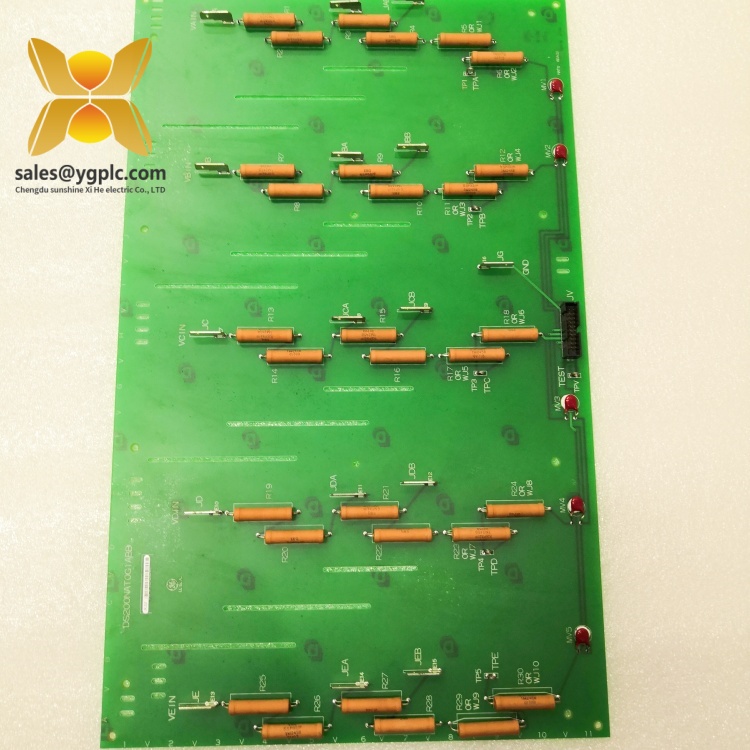

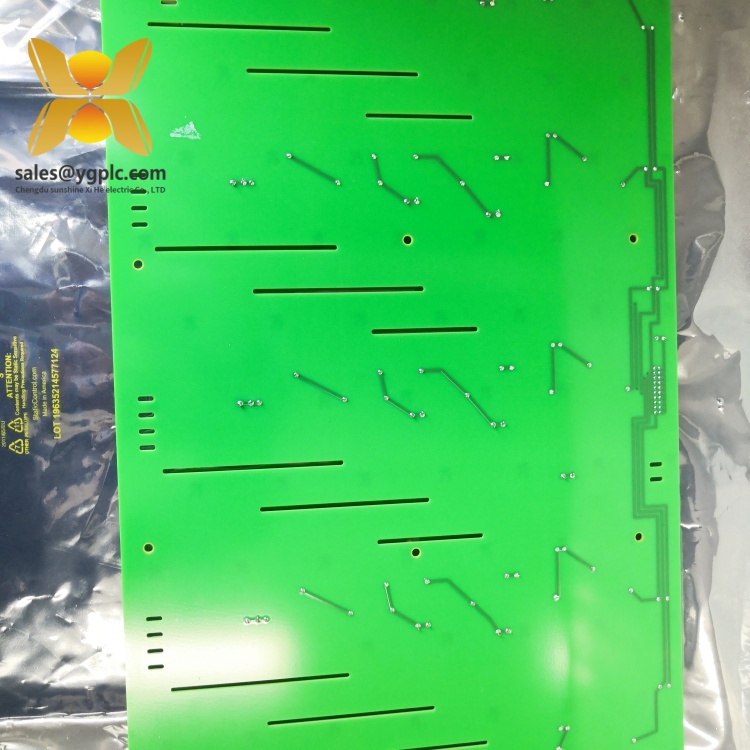

GE DS200NATOGIA Voltage Feedback Scaling Board
Product Overview
The GE DS200NATOGIA is a high-precision voltage feedback scaling board engineered by General Electric (GE) for critical industrial applications. As part of the LS2100 Static Starter Control Series, this module is designed to attenuate and accurately derive AC and DC voltages from silicon-controlled rectifier (SCR) bridges, ensuring precise feedback for control systems. With its robust construction and adherence to UL, EC, and CSA standards, the DS200NATOGIA delivers reliable performance in demanding environments such as gas turbine control, industrial motor drives, and power generation systems.
Key to its functionality is the integration of five series-connected precision resistor strings, each equipped with three stab connectors to accommodate input voltages ranging from 1200V to 6900V120. This design allows the DS200NATOGIA to adapt to diverse voltage requirements, making it a versatile component in applications where voltage scaling and stabilization are paramount. The board operates in conjunction with a VME backplane and a gate distribution and status board, forming a comprehensive system for monitoring and controlling SCR bridge operations920. By ensuring accurate voltage feedback, the DS200NATOGIA contributes to the efficient and safe operation of industrial equipment, minimizing risks of overvoltage and system instability.
Positioned as a core component in GE’s automation portfolio, the DS200NATOGIA exemplifies the brand’s commitment to innovation and reliability. Its role in voltage regulation and feedback mechanisms underscores its importance in maintaining optimal performance across various industrial sectors. Whether used in standalone systems or integrated into larger distributed control architectures, the DS200NATOGIA provides the stability and precision required for mission-critical operations.
Technical Specifications
| Parameter Name | Parameter Values |
|---|---|
| Manufacturer | General Electric (GE) |
| Product Type | Voltage Feedback Scaling Board |
| Series | LS2100 Static Starter Control |
| Voltage Input Range | 1200V, 2200V, 3300V, 4200V, 6900V |
| Resistor Strings | 5 identical strings with 3 stab connectors |
| Overvoltage Protection | Metal Oxide Varistors (MOVs) |
| Agency Approvals | UL, EC, CSA |
| Physical Dimensions | 55mmx110mm |
| Weight | 5.5kg |
| Country of Origin | United States (USA) |
Main Features and Advantages
The GE DS200NATOGIA stands out for its advanced design and practical benefits, making it a preferred choice in industrial control systems.
Precision Voltage Attenuation
The board’s five resistor strings enable precise attenuation of AC and DC voltages, ensuring accurate feedback signals for control systems. This feature is critical in applications where voltage fluctuations could compromise equipment performance or safety. By supporting multiple voltage ranges (1200V to 6900V), the DS200NATOGIA offers flexibility across diverse industrial setups120.
Reliable Overvoltage Protection
Equipped with metal oxide varistors (MOVs), the DS200NATOGIA safeguards against excessive voltage spikes, protecting both the board and downstream components. This built-in safety mechanism ensures operational continuity even in unstable power environments920.
Modular Compatibility
Designed to work seamlessly with GE’s VME backplane and gate distribution boards, the DS200NATOGIA facilitates easy integration into existing systems. Its compatibility with standard industrial interfaces simplifies installation and reduces downtime during upgrades or maintenance920.
Compliance with Industry Standards
Meeting UL, EC, and CSA standards, the DS200NATOGIA adheres to rigorous quality and safety benchmarks. This compliance ensures compatibility with global industrial requirements and instills confidence in its performance across various regions120.
Application Fields
The GE DS200NATOGIA finds extensive use in industries where precise voltage control and feedback are essential.
Power Generation and Gas Turbines
In gas turbine control systems, the DS200NATOGIA plays a pivotal role in regulating voltage outputs from SCR bridges. This ensures stable operation of turbine starters and auxiliary equipment, supporting efficient power generation in utilities and industrial plants1519.
Industrial Motor Drives
For large-scale motor drives, the board’s voltage scaling capabilities are vital for maintaining consistent performance. It helps in minimizing wear and tear on motors by ensuring smooth voltage transitions during startup and load changes120.
High-Voltage Industrial Systems
In applications involving high-voltage environments, such as mining and heavy manufacturing, the DS200NATOGIA provides reliable voltage attenuation, ensuring equipment longevity and operator safety. Its ability to handle up to 6900V makes it suitable for high-power industrial processes120.
Related Products
Here are key models related to the GE DS200NATOGIA, each tailored to specific applications:
- DS200NATOG1A: Features six resistors per string, ideal for applications requiring higher attenuation levels1.
- DS200NATOG2A: Equipped with four resistors per string, offering a balance between attenuation and cost-effectiveness111.
- DS200NATOG3A: Similar to the DS200NATOGIA, it supports the same voltage ranges but may include design updates for improved compatibility with newer systems20.
- DS200SNPAH1A: A protocol interface daughterboard that enhances communication capabilities in GE’s Mark V control systems1318.
- DS200CTBAG1ADD: A gas turbine control module for monitoring combustion and temperature, complementing the DS200NATOGIA in turbine control systems19.
Installation and Maintenance
Pre-installation preparations:
Before installing the GE DS200NATOGIA, ensure the power supply is disconnected and the system is de-energized. Verify compatibility with the VME backplane and gate distribution board, as these components are essential for proper functionality920. Inspect the board for physical damage and confirm that the voltage input range matches the application requirements.
Before installing the GE DS200NATOGIA, ensure the power supply is disconnected and the system is de-energized. Verify compatibility with the VME backplane and gate distribution board, as these components are essential for proper functionality920. Inspect the board for physical damage and confirm that the voltage input range matches the application requirements.
Maintenance suggestions:
Regular maintenance is key to prolonging the DS200NATOGIA’s lifespan. Clean the board periodically to remove dust and debris, which can affect performance. Check for loose connections or signs of wear on resistor strings and MOVs. If issues arise, consult GE’s technical manual (GEI-100225) for troubleshooting steps. For critical systems, consider periodic firmware updates to ensure compatibility with evolving control protocols120.
Regular maintenance is key to prolonging the DS200NATOGIA’s lifespan. Clean the board periodically to remove dust and debris, which can affect performance. Check for loose connections or signs of wear on resistor strings and MOVs. If issues arise, consult GE’s technical manual (GEI-100225) for troubleshooting steps. For critical systems, consider periodic firmware updates to ensure compatibility with evolving control protocols120.
Product Guarantee
Our company, a leading industrial control parts distributor with 17 years of experience, offers a one-year quality warranty for the GE DS200NATOGIA. This warranty covers hardware malfunctions not caused by human error, including defects in materials or workmanship. During the warranty period, we will replace any non-functioning units promptly to minimize downtime.
For discontinued models or urgent requirements, our global supply chain network ensures rapid access to scarce spare parts. We pride ourselves on maintaining a large inventory of new and refurbished components, including hard-to-find items, to meet your immediate needs. Our team of experts is available to provide technical support and assist with product selection, ensuring seamless integration into your industrial systems.
Contact us today to explore how the GE DS200NATOGIA can enhance the reliability and efficiency of your operations.
