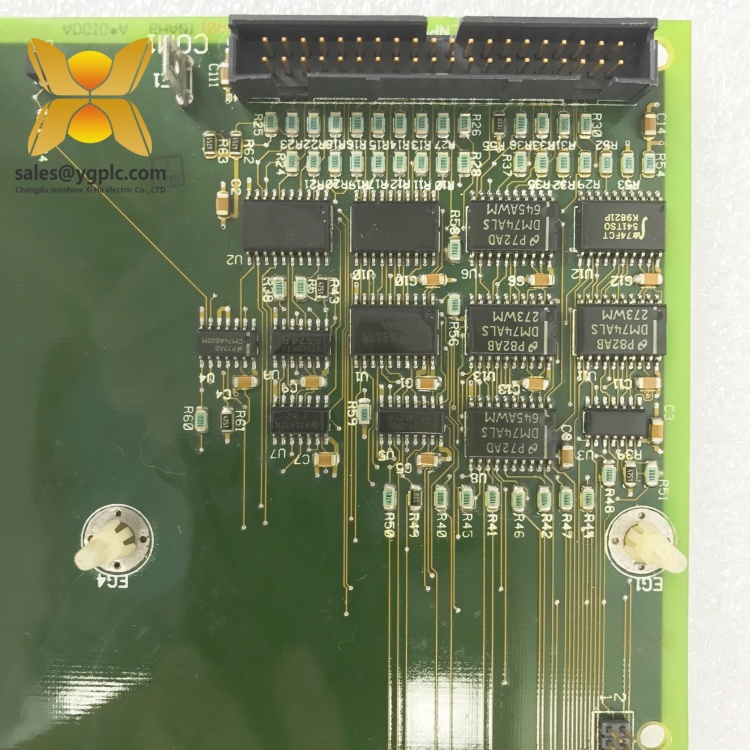

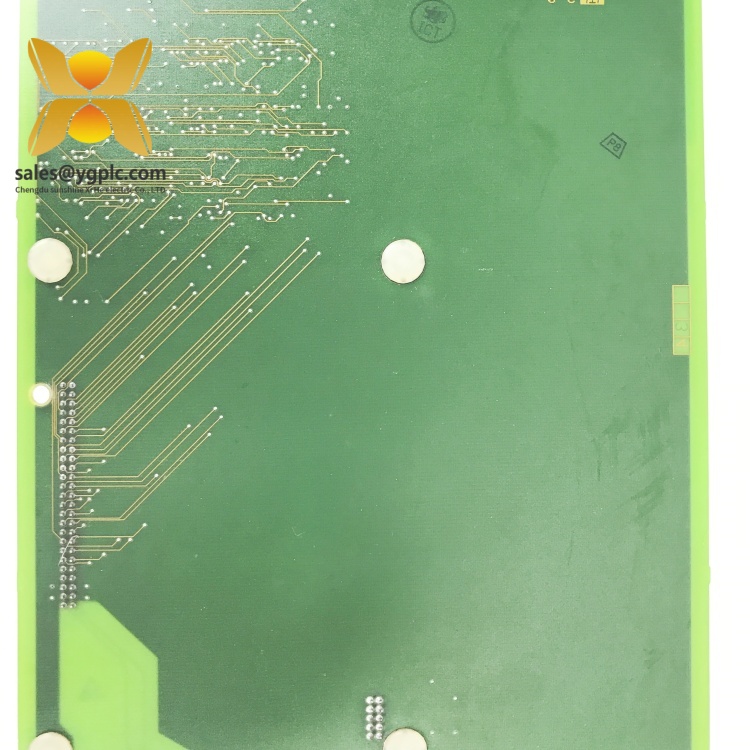

GE DS200AAHAH2ADC Mark VIe Analog Input Module
Product Overview
The GE DS200AAHAH2ADC is a high-precision Analog Input Module designed as a critical component of GE’s Mark VIe distributed control system (DCS), catering to industrial automation and machinery control applications. Engineered to convert analog signals from field instruments (e.g., temperature transmitters, pressure transducers) into digital data for processing by the Mark VIe controller, this module ensures accurate and reliable data acquisition in harsh industrial environments. As part of the DS200 Series, the DS200AAHAH2ADC plays a pivotal role in power generation, oil & gas, and manufacturing sectors, where precise monitoring of process variables is essential for system stability and safety.
Featuring a rugged industrial design, the GE DS200AAHAH2ADC supports multiple signal types, including 4–20 mA current loops, 0–10 V DC voltage inputs, and resistance temperature detector (RTD) signals, with configurable input ranges to adapt to diverse sensor setups. Its advanced signal conditioning circuitry includes anti-aliasing filters and galvanic isolation, minimizing noise interference and ensuring measurement accuracy within ±0.1% of full scale. The module’s compatibility with GE’s Proficy software suite enables real-time data visualization and remote configuration, enhancing operational efficiency and reducing maintenance downtime.
In automation ecosystems, the DS200AAHAH2ADC serves as the interface between analog field devices and the Mark VIe control platform, facilitating seamless integration with other modules such as digital input/output (DI/DO) and communication gateways. Its hot-swappable design allows for module replacement without powering down the system, ensuring continuous operation during maintenance. By delivering high-fidelity analog data, this module supports critical applications like turbine control, process optimization, and condition monitoring, making it indispensable for industries reliant on precise and reliable control systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DS200AAHAH2ADC |
| Manufacturer | GE |
| Product Type | Analog Input Module |
| Platform | Mark VIe |
| Input Channels | 16 isolated channels |
| Signal Types | 4–20 mA, 0–10 V DC, RTD (Pt100, Ni100), thermocouples (J, K, T types) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | 250 V RMS galvanic isolation per channel |
| Power Supply | 24 V DC ±10% (from Mark VIe rack) |
| Physical Dimensions | 228.6 mm (H) × 177.8 mm (W) × 76.2 mm (D) |
| Weight | 1.8 kg |
| Operating Temperature | -40°C to +85°C |
| Mounting | Rack-mounted in Mark VIe enclosure |
| Communication | Proprietary Mark VIe bus (compatible with Modbus via gateway) |
Key Features and Advantages
Multi-Signal Compatibility: The DS200AAHAH2ADC accommodates a wide range of analog signals, eliminating the need for dedicated modules for different sensor types. This versatility reduces hardware complexity and lowers installation costs, making it suitable for mixed-signal industrial setups.
High Precision and Noise Immunity: With 16-bit resolution and advanced filtering, the module delivers highly accurate measurements even in high-noise environments, such as those with electromagnetic interference (EMI) from motors or power lines. Galvanic isolation between channels prevents ground loops and ensures signal integrity.
Redundant Design for Reliability: The module’s robust construction includes redundant power paths and error-checking mechanisms, ensuring continuous operation even in the event of transient faults. This reliability is critical for mission-critical applications where data loss could lead to operational disruptions or safety hazards.
Hot-Swap Capability: Designed for easy maintenance, the DS200AAHAH2ADC can be replaced while the system is running, minimizing downtime and allowing for scheduled maintenance without interrupting processes. This feature is particularly valuable in 24/7 industrial operations.
Scalable System Integration: As part of the Mark VIe ecosystem, the module seamlessly integrates with GE’s suite of control and monitoring tools, including HMIs and predictive maintenance software. This integration enables real-time analytics and proactive fault detection, enhancing overall system efficiency.
Rugged Industrial Construction: Built to withstand extreme temperatures, vibration, and humidity, the DS200AAHAH2ADC meets rigorous industry standards (e.g., IEC 61131-2), ensuring reliable performance in challenging environments such as offshore platforms, refineries, and power plants.
Application Areas
The GE DS200AAHAH2ADC is widely deployed in industries requiring precise analog data acquisition and control:
- Power Generation: Monitors temperature, pressure, and flow rates in steam turbines, gas generators, and boiler systems, enabling real-time adjustments to optimize fuel efficiency and prevent overloading.
- Oil & Gas: Supports process control in upstream production (e.g., wellhead pressure monitoring), midstream pipelines (e.g., flow rate validation), and downstream refineries (e.g., distillation column optimization).
- Manufacturing: Used in automotive, chemical, and food processing plants to monitor conveyor speeds, mixing ratios, and environmental conditions, ensuring consistent product quality and compliance with regulatory standards.
- Water/Wastewater Treatment: Measures parameters such as pH, conductivity, and 液位 (liquid level) in treatment facilities, enabling automated control of pumps, valves, and filtration systems.
Specific applications include:
- Turbine Health Monitoring: Integrates with RTDs and thermocouples to track rotor and stator temperatures in generators, providing early warnings of overheating.
- Process Optimization: Uses 4–20 mA signals from flow meters and pressure transmitters to adjust control valves and maintain optimal process conditions, reducing energy consumption and waste.
- Safety Systems: Feeds analog data into safety instrumented systems (SIS) to trigger alarms or shutdowns when process variables exceed predefined thresholds, ensuring compliance with IEC 61511 standards.
Related Products
- DS200AADA (Digital Input Module): Complements the DS200AAHAH2ADC by providing discrete signal monitoring, enabling a comprehensive mix of analog and digital data acquisition in Mark VIe systems.
- DS200AASA (Analog Output Module): Works in tandem with the DS200AAHAH2ADC to send control signals to actuators, forming a closed-loop control system for precise process regulation.
- DS200TCTGG1A (Turbine Control Module): A high-performance controller module that processes data from the DS200AAHAH2ADC to manage turbine speed and load in power generation applications.
- DS200COMM (Communication Module): Enables Ethernet connectivity for the DS200AAHAH2ADC, allowing remote access to analog data via SCADA systems or cloud-based platforms.
- DS200PWR (Power Supply Module): Provides redundant power to the Mark VIe rack, ensuring uninterrupted operation of the DS200AAHAH2ADC and other modules during power fluctuations.
- DS200TBCH (Terminal Block Module): Simplifies field wiring by providing a centralized connection point for analog signals, reducing installation time and minimizing errors.
- DS200ALG (Algorithm Module): Executes advanced control algorithms using data from the DS200AAHAH2ADC, supporting complex process automation tasks like PID control and data trending.
Installation and Maintenance
Pre-installation Preparations:
Before installing the GE DS200AAHAH2ADC, ensure the Mark VIe rack is properly grounded and powered. Verify that the module’s input range settings match the connected sensors (e.g., 4–20 mA for transmitters, RTD for temperature sensors). Use shielded cables to connect field devices to the module’s terminal blocks, routing cables separately from high-voltage lines to avoid EMI. Configure the module in GE’s Proficy software, assigning channel addresses and enabling appropriate signal conditioning parameters (e.g., filter constants, linearization tables).
Before installing the GE DS200AAHAH2ADC, ensure the Mark VIe rack is properly grounded and powered. Verify that the module’s input range settings match the connected sensors (e.g., 4–20 mA for transmitters, RTD for temperature sensors). Use shielded cables to connect field devices to the module’s terminal blocks, routing cables separately from high-voltage lines to avoid EMI. Configure the module in GE’s Proficy software, assigning channel addresses and enabling appropriate signal conditioning parameters (e.g., filter constants, linearization tables).
Maintenance Suggestions:
- Routine Checks: Perform monthly inspections to ensure all terminal connections are secure and LED status indicators show normal operation (e.g., green power light, stable data transmission indicators). Use Proficy software to review channel diagnostics and identify any signals outside expected ranges.
- Calibration: Annually calibrate the module using a precision signal source to verify accuracy. Compare measured values against the source output, adjusting offsets or gains as needed. Document calibration results for compliance with industry standards.
- Firmware Updates: Periodically update the module’s firmware via the Mark VIe controller to incorporate bug fixes and new features, following GE’s recommended procedures to avoid system disruptions.
- Spare Parts Management: Store spare DS200AAHAH2ADC modules in a static-controlled environment with consistent temperature (20–25°C) and humidity (<50%). Test spares periodically to ensure functionality, especially for critical applications where downtime is not an option.
Product Guarantee
Our company provides a 12-month quality warranty for the GE DS200AAHAH2ADC, covering hardware defects under normal use. In the event of performance issues such as signal inaccuracies or module failures, we offer prompt replacement services to minimize operational downtime. For legacy or discontinued models like the DS200AAHAH2ADC, our global supply chain network is equipped to source rare and obsolete components, ensuring quick turnaround for urgent replacement needs. Our technical support team is available 24/7 to assist with installation, calibration, and troubleshooting, delivering reliable solutions to keep your industrial control systems operating at peak performance.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
